Spelsberg 30244050 (L x W x H) 447 x 190 x 105 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 489.00 / piece)
€ 489.00
incl. VAT
14-day return policy included
Highlights & Details

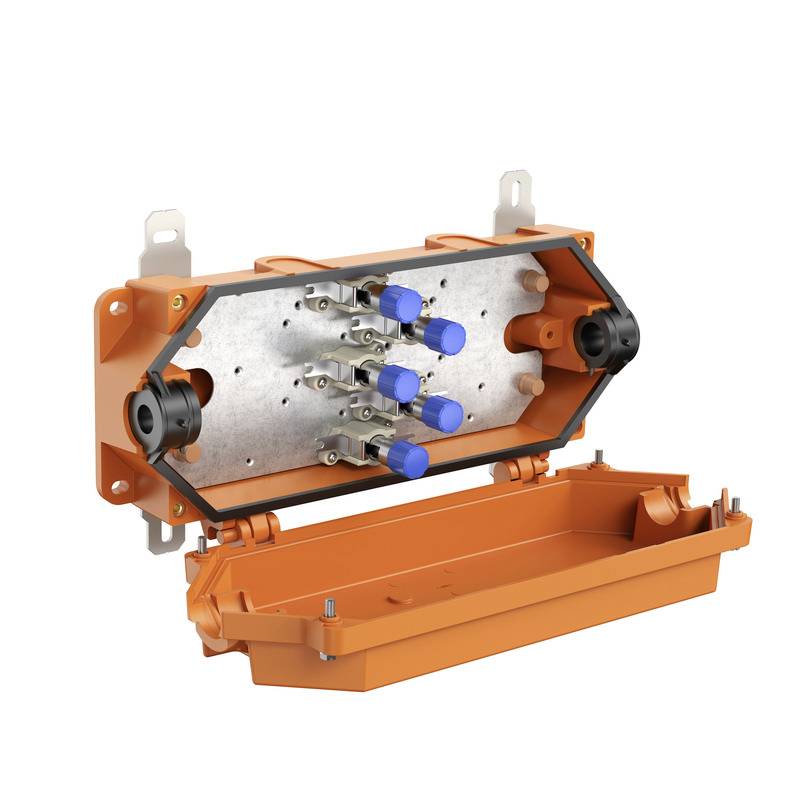

Connection box, orange, protection class IP66/IP67, impact resistance IK09, protection class II, Rated voltage 400V AC, halogen-free
- Connection box with protection class IP66/IP67, UI=400 V AC, outer fixing points, with electrical functional conservation E30 - E90 according to DIN 4102 Part 12. For installations in the industrial area and tunnel area, pressure-suction-sealing according to Gotthard-Guideline. Halogen-free housing made of special duroplastic, clamps made of special high-temperature resistant ceramic. External mounting straps and cover screws made of stainless steel 1.4571, orange, continuity: 5-pole terminal for cut conductors, clamping range 16 mm² to 35 mm², rated current 100A. Seal area main cable: 29 - 32 mm (other sealing areas on request) Dimensions: 190 x 447 x 105 mm
- This text is machine translated.
Technical specifications
- Type
Socket
- Content
1 pc(s)
- Dim
(L x W x H) 447 x 190 x 105 mm
- Length
447 mm
- Width
190 mm
- Height
105 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3628553 Spelsberg 30244050 (L x W x H) 447 x 190 x 105 mm 1 pc(s)
Datasheet 3628553 Spelsberg 30244050 (L x W x H) 447 x 190 x 105 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3628553 Spelsberg 30244050 (L x W x H) 447 x 190 x 105 mm 1 pc(s)
