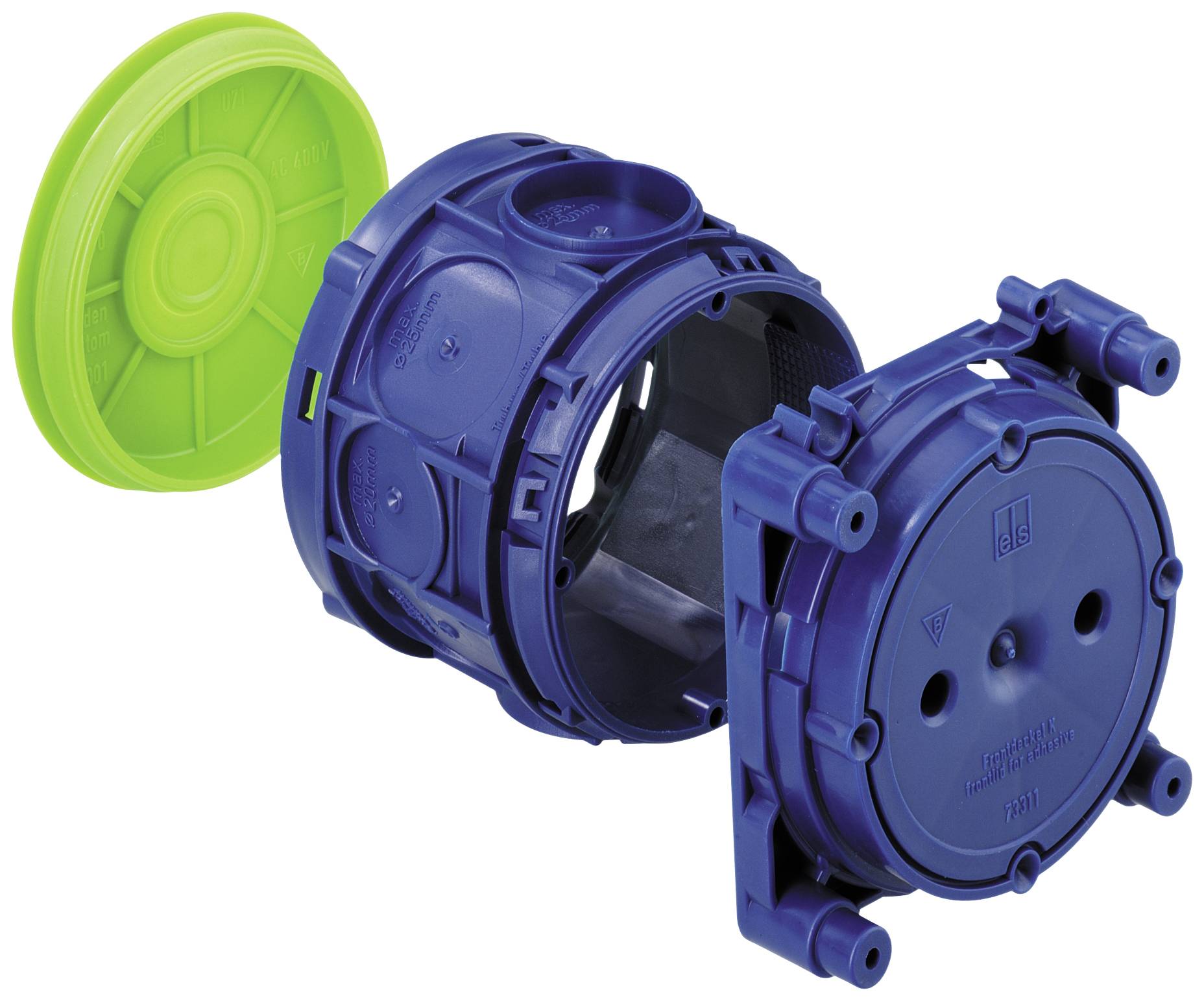

Spelsberg 97186501 Lining box adapter (Ø x H) 60 mm x 68 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.93
5
6% = € 0.19
€ 2.74
10
9% = € 0.27
€ 2.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
Technical specifications
- Mounting type: Concrete construction
- IP30 protection
- Cover type: Blind cover, snap-on
- Material: Plastic
- Number of introductions: 8
- For cable diameter 1 - 25 mm
- For pipe diameter 25 mm
- Halogen-free: Yes
- Can be coupled: Yes
- Windproof: Yes
- Pipe lock: Yes
- Product type
Lining box adapter
- Type
Device connection socket, single, round
- Factory colour
Multi-coloured
- Content
1 pc(s)
- Dim
(Ø x H) 60 mm x 68 mm
- Length
71 mm
- Width
71 mm
- Height
68 mm
- (Ø)
60 mm
Concrete building
Other
71
Single
TRUE
Round
Untreated
60 mm
Device connection box (round/square)
71 m
Plastic
1-25 mm
IP30
Blind cover
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379006 Spelsberg 97186501 Lining box adapter (Ø x H) 60 mm x 68 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379006 Spelsberg 97186501 Lining box adapter (Ø x H) 60 mm x 68 mm 1 pc(s)
Description
Device connection box for concrete installation in finished parts works, 3-part, 4 screw dome with screw distance 60mm, can be combined in the standard distance 71mm, fully insulated cable transition, suitable for all types of formwork and counterformwork, VDE certified according to DIN EN 60670 (VDE 0606), with smooth front side for nail and adhesive fixing
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
