Name: Spelsberg 97371201 Dry-lining box (large) (Ø x H) 80 mm x 122 mm 1 pc(s)
Brand: Spelsberg
SKU: 2379015
Availability: InStock

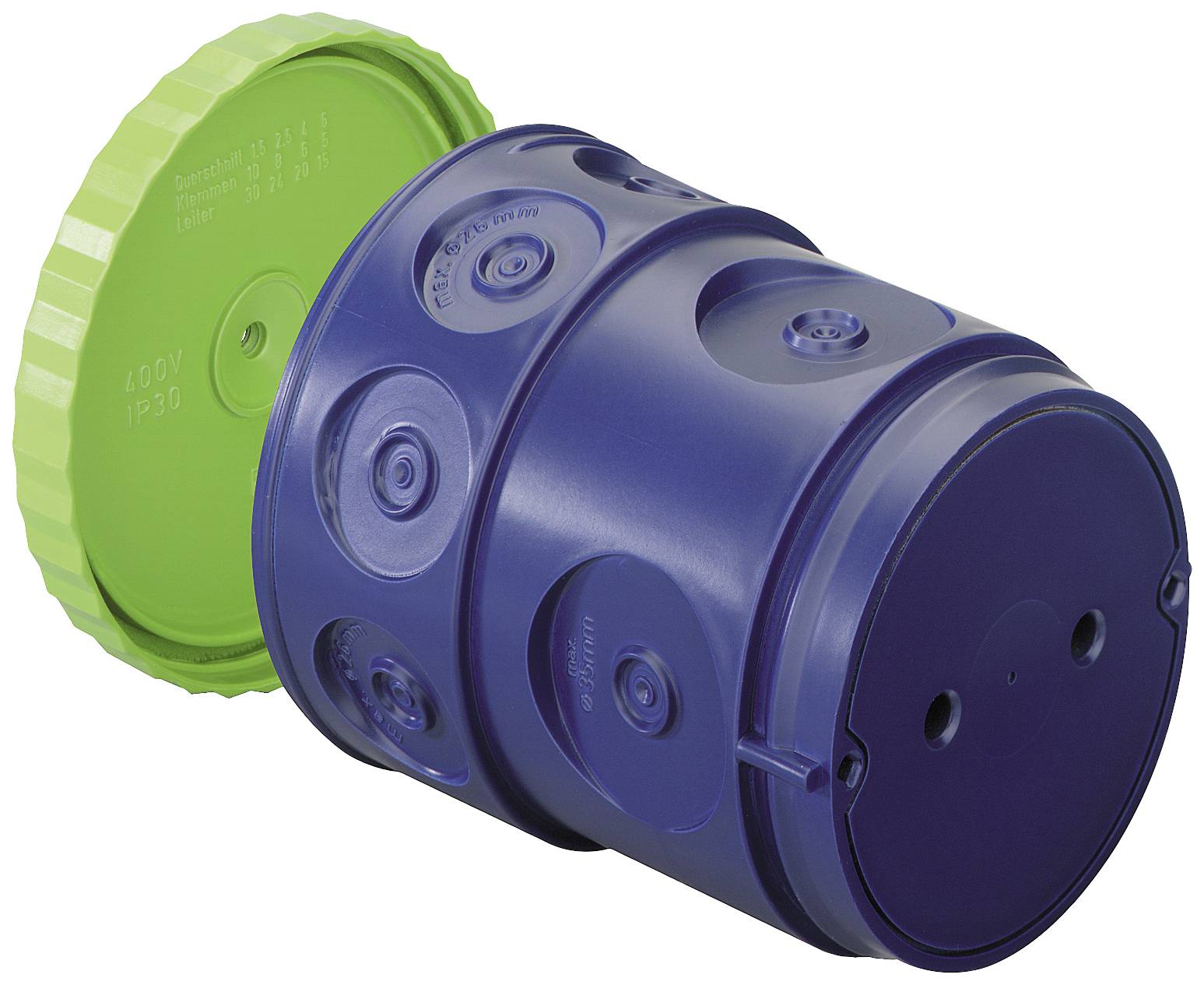

Blue, cylindrical tin with a green lid, presumably a plastic container with several round openings and markings.

Datasheet (PDF)

Dispatches on Fri 16 Oct

12450 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 25

Multiple: 25

Total (€ 5.49 / piece)

€ 137.25

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: Cement constructionIP30 protectionDesign cover: Blind cover, snap-onMaterial: PlasticNumber of inserts: 12For cable diameter 1 - 35 mmFor pipe diameter 32 mmHalogen-free: YesWindproof: YesPipe locking: Yes

Product type: Dry-lining box (large)

Type: single, round

Factory colour: Multi-coloured

Content: 1 pc(s)

Dim: (Ø x H) 80 mm x 122 mm

Length: 74 mm

Height: 122 mm

(Ø): 80 mm

: Concrete building

: Other

: 74

: Single

: TRUE

: Round

: Untreated

: 80 mm

: Other

: 74 m

: Plastic

: 1-35 mm

: IP30

: Blind cover

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2379015 Spelsberg 97371201 Dry-lining box (large) (Ø x H) 80 mm x 122 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2379015 Spelsberg 97371201 Dry-lining box (large) (Ø x H) 80 mm x 122 mm 1 pc(s)

Description

Large tube ceiling socket for concrete installation, for panels up to 6.5 cm thick, with M5 threaded bush (payload 10kg) to accept a ceiling hook, lamp power halogen max. 6.5 W, lamp power LED max. 3 W.The use of the U120 as light installation casing in large components, such as element ceiling or filigree ceiling, does not correspond to the recognized state of the technology. The permissible installation tolerances generally do not allow a precise installation, 2-part, with a smooth front end for nail and adhesive mounting

This text is machine translated.
