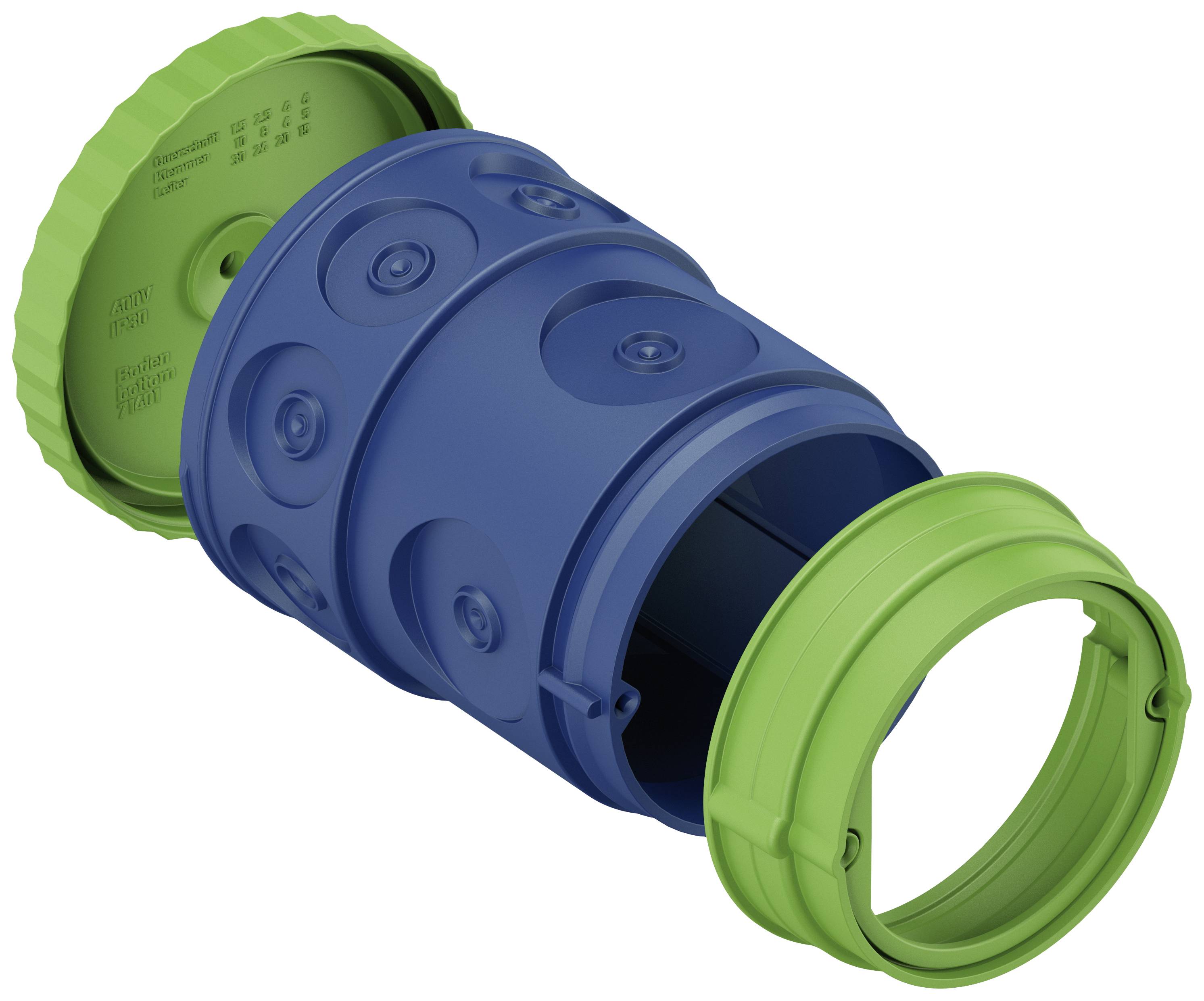

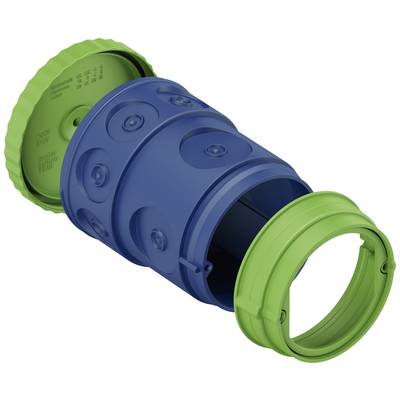

Spelsberg 97371401 Dry-lining box (large) (Ø x H) 74 mm x 133 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 6.49 / piece)
€ 6.49
incl. VAT
14-day return policy included
Technical specifications
- Mounting type: Cement constructionInternal depth 114 mmIP30 protectionDesign cover: Blind cover, snap-onMaterial: PlasticNumber of inserts: 12For cable diameter 1 - 35 mmFor pipe diameter 32 mmHalogen-free: YesWindproof: YesPipe locking: Yes
- Product type
Dry-lining box (large)
- Type
single, round
- Content
1 pc(s)
- Dim
(Ø x H) 74 mm x 133 mm
- Length
74 mm
- Width
74 mm
- Height
133 mm
- (Ø)
74 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379017 Spelsberg 97371401 Dry-lining box (large) (Ø x H) 74 mm x 133 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379017 Spelsberg 97371401 Dry-lining box (large) (Ø x H) 74 mm x 133 mm 1 pc(s)
Description
Large tube ceiling socket for concrete installation, for panels up to 7.5 cm thick, with M5 threaded bush (payload 10kg) to accept a ceiling hook, lamp power halogen max. 6.5 W, lamp power LED max. 3 W.The use of the U120 as light installation casing in large components, such as element ceiling or filigree ceiling, does not correspond to the recognized state of the technology. The permissible installation tolerances generally do not allow for a precise installation. 2-part, open front part for special magnetic clamp
This text is machine translated.
This text is machine translated.
Hints
Safety relevant component - Only by skilled workers
