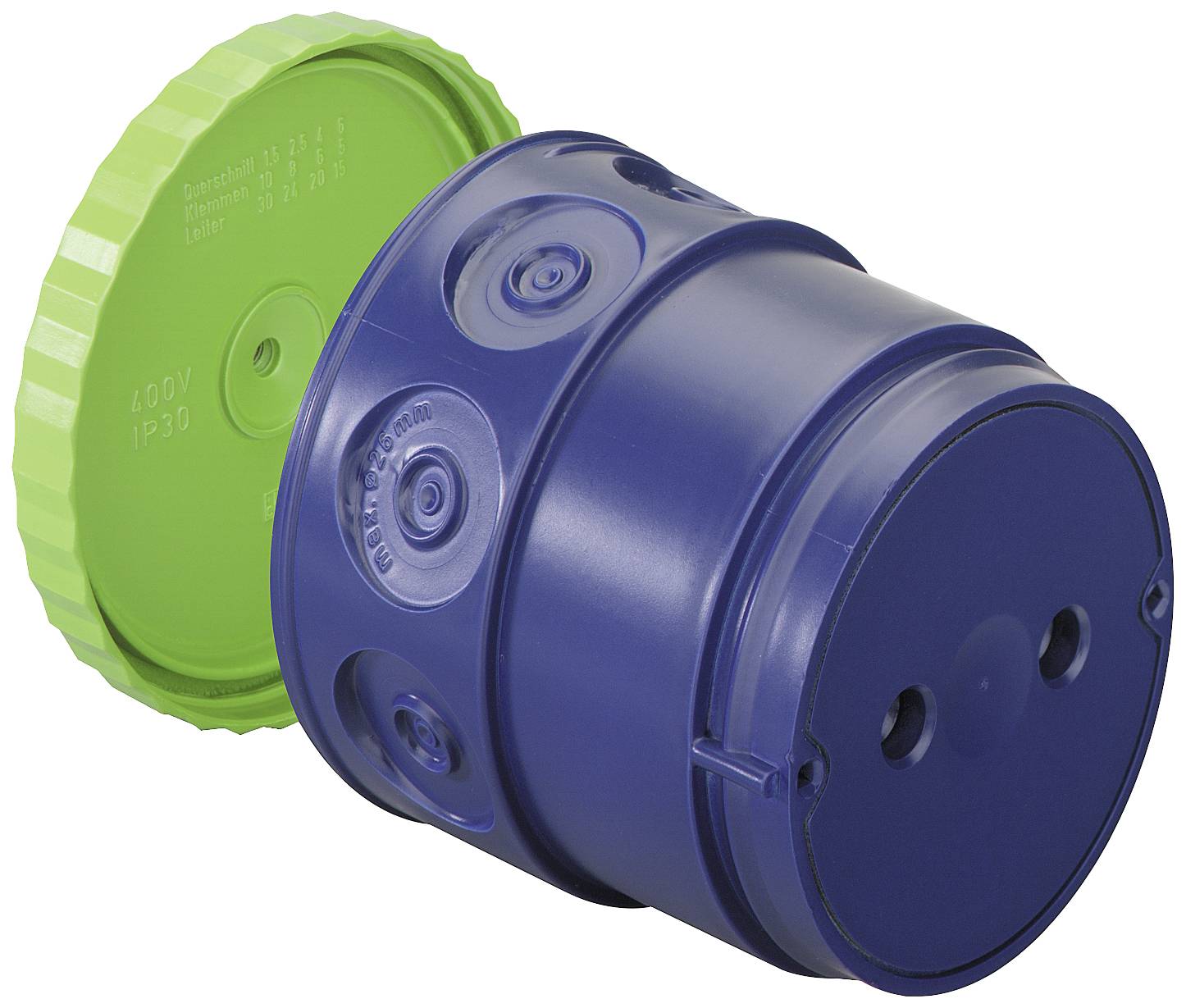

Spelsberg 97378101 Lining box adapter (Ø x H) 74 mm x 106 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
Technical specifications
- Mounting type: Cement constructionIP30 protectionDesign cover: Blind cover, snap-onMaterial: PlasticNumber of inserts: 8For cable diameter 1 - 26 mmFor pipe diameter 25 mmHalogen-free: YesWindproof: YesPipe locking: Yes
- Product type
Lining box adapter
- Type
Ceiling junction box, single, round
- Factory colour
Multi-coloured
- Content
1 pc(s)
- Dim
(Ø x H) 74 mm x 106 mm
- Length
74 mm
- Height
106 mm
- (Ø)
74 mm
Concrete building
Other
74
Single
TRUE
Round
Untreated
74 mm
Other
74 m
Plastic
1-26 mm
IP30
Blind cover
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379018 Spelsberg 97378101 Lining box adapter (Ø x H) 74 mm x 106 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379018 Spelsberg 97378101 Lining box adapter (Ø x H) 74 mm x 106 mm 1 pc(s)
Description
Universal ceiling box for concrete installation, for board ceilings up to 4.5 cm thick, with M5 threaded bush (payload 10kg) to accept a ceiling hook, VDE certified according to DIN EN 60670 (VDE 0606), lamp output LED max. 3 W, lamp output halogen max. 6.5 W.The use of the U86 as light installation casing in large components, such as element ceiling or filigree ceiling, does not correspond to the recognized state of the art. The permissible installation tolerances generally do not allow a precise installation, 2-part, with a smooth front end for nail and adhesive mounting
This text is machine translated.
This text is machine translated.
Hints
Safety relevant component - Only by skilled workers
