Spelsberg 98477501 Dry-lining box (large) (L x W x H) 71 x 71 x 76.5 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 3.79 / piece)
€ 3.79
incl. VAT
14-day return policy included
Technical specifications
- Mounting type: Cement constructionInternal depth 72.9 mmIP30 protectionCover type: Hinged coverMaterial: PlasticNumber of inserts: 4For pipe diameter 25 mmHalogen-free: YesConnectable: YesPipe locking: YesHousing feedthrough through cut-out opening: Yes
- Product type
Dry-lining box (large)
- Type
single, square
- Factory colour
Green
- Content
1 pc(s)
- Dim
(L x W x H) 71 x 71 x 76.5 mm
- Length
71 mm
- Width
71 mm
- Height
76.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2379034 Spelsberg 98477501 Dry-lining box (large) (L x W x H) 71 x 71 x 76.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379034 Spelsberg 98477501 Dry-lining box (large) (L x W x H) 71 x 71 x 76.5 mm 1 pc(s)
Description

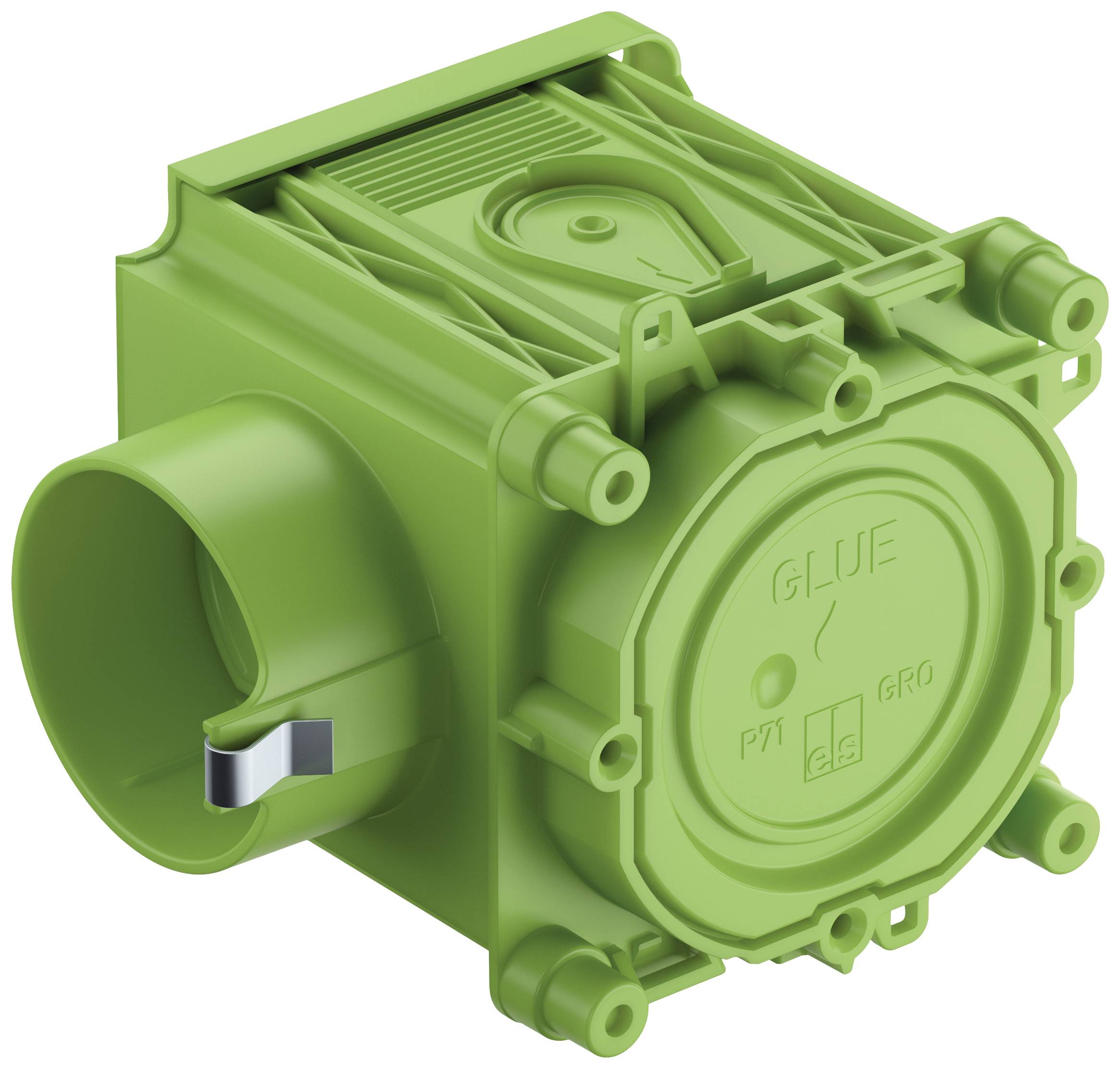

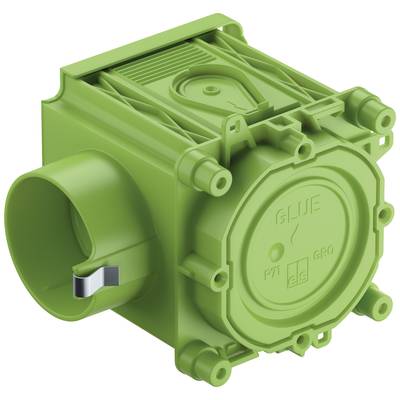

Large tube box for the horizontal factory production, 1-piece, 71 x 71 x 77mm, diameter 60mm, with enlarged connection space, 4 screw domes with screw spacing 60mm, combined, also suitable for counter wrapping, combined in standard spacing 71mm, VDE certified according to DIN EN 60670 (VDE 0606), with special front part for adhesive mounting
This text is machine translated.
This text is machine translated.
Hints
Safety relevant component - Only by skilled workers
