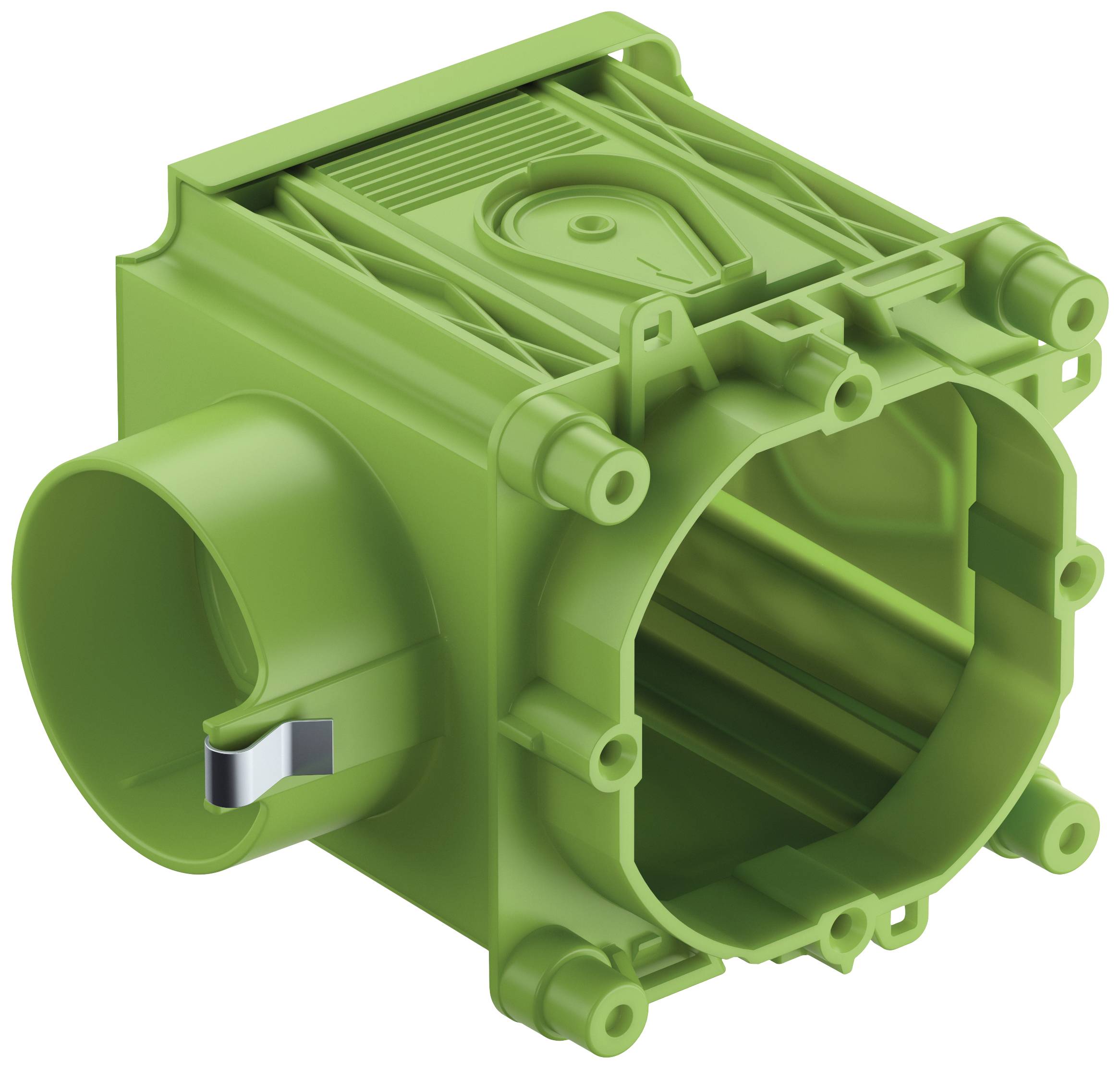

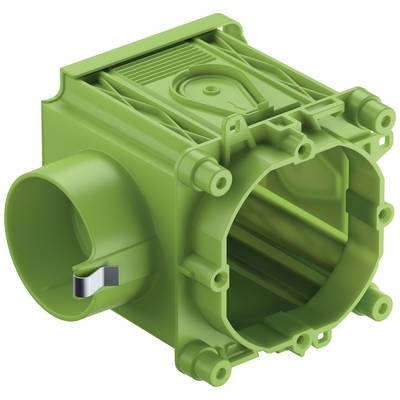

Spelsberg 98497501 Dry-lining box (large) (L x W x H) 71 x 71 x 76.5 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.76
5
7% = € 0.18
€ 2.58
10
9% = € 0.26
€ 2.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€ 2.76
plus VAT.
Technical specifications
- Mounting type: Concrete construction
- Internal depth 72.9 mm
- IP30 protection
- Cover type: Blind cover, hinged
- Material: Plastic
- Number of introductions: 4
- For pipe diameter 25 mm
- Halogen-free: Yes
- Can be coupled: Yes
- Pipe lock: Yes
- Housing bushing through break-out opening: Yes
- Product type
Dry-lining box (large)
- Type
single, square
- Factory colour
Green
- Content
1 pc(s)
- Dim
(L x W x H) 71 x 71 x 76.5 mm
- Length
71 mm
- Width
71 mm
- Height
76.5 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379038 Spelsberg 98497501 Dry-lining box (large) (L x W x H) 71 x 71 x 76.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379038 Spelsberg 98497501 Dry-lining box (large) (L x W x H) 71 x 71 x 76.5 mm 1 pc(s)
Description
Large pipe socket for the horizontal factory production, 1-part, 71 x 71 x 77mm, diameter 60mm, with enlarged connection area, 4 screw domes with screw distance 60mm, can be combined, also suitable for counterformwork, can be combined in the standard distance 71mm, VDE certified according to DIN EN 60670 (VDE 0606), open front part for special magnetic clamp
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
