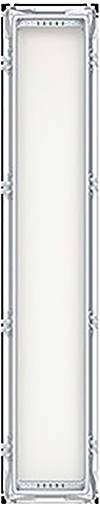

Striebel & John R112T6B Switchboard cabinet 364 x 1913 x 625 Steel 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Material
Steel
Width
364 mm
Height
1913 mm
Content
1 pc(s)
Technical specifications
- Height: 1913 mm
- Width 364 mm
- Depth: 625 mm
- With mounting plate: No.
- Installation depth: 513 mm
- Mounting option: Yes
- Mounting type: Floor mount
- Colour: grey
- RAL number: 7035
- Protection class (IP): Other
- Type of cover: Without
- Lid design: With cut-out
- Type of door: Without
- Transparent cover / door: No.
- With lock: No.
- Internal depth 621 mm
- Number of modules: 144
- Number of rows: 12
- Width in division units: 12
- Number of openings for flange plates: 1
- Number of cable entries: 49
- Surface protection: Powder-coated
- Suitable for outside use: No.
- Protection class: I
- Impact strength: IK10
- Function retention: Without
- Material of housing: Steel
- Product type
Switchboard cabinet
- Features
with door
- Material
Steel
- Width
364 mm
- Height
1913 mm
- Content
1 pc(s)
- Type
R112T6B
- Dim
(W x H x D) 364 x 1913 x 625 mm
- Manufacturer part #
2CPX047091R9999
- Depth
625 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551919 Striebel & John R112T6B Switchboard cabinet 364 x 1913 x 625 Steel 1 pc(s)
Description
Series cabinet scaffold, standing cabinet, TriLine series, scaffold with rear wall, mounting type: Surface-mounted, for indoors, with door, protection class I (earthed), applicable standards: DIN EN 61439-1, VDE 0660-600-1, DIN EN 61439-2, VDE 0660-600-2, DIN EN 61439-3,
This text is machine translated.
This text is machine translated.
What kind of Switch boxes are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
