Name: Striebel & John R212T3 Switchboard cabinet 614 x 1913 x 325 Steel 1 pc(s)
Brand: Striebel & John
SKU: 3550460

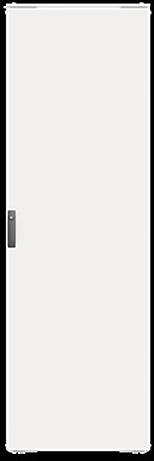

A white door, tall and narrow, with a dark handle. The door is closed and fills the entire frame of the image.

Image similar

Product type

Switchboard cabinet

Material

Steel

Width

614 mm

Height

1913 mm

Content

1 pc(s)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Height: 1913 mm
Width 614 mm
Depth: 325 mm
With mounting plate: No.
Installation depth: 213 mm
Mounting option: Yes
Mounting type: Floor mount
Colour: grey
RAL number: 7035
Type of cover: Without
Lid design: With cut-out
Type of door: Single
Transparent cover / door: No.
With lock: Yes
Internal depth 321 mm
Number of modules: 288
Number of rows: 12
Width in division units: 24
Number of openings for flange plates: 2
Number of cable entries: 49
Surface protection: Powder-coated
Suitable for outside use: No.
Protection class: I
Impact strength: IK10
Function retention: Without
Material of housing: Steel

Product type: Switchboard cabinet

Features: with door

Material: Steel

Width: 614 mm

Height: 1913 mm

Content: 1 pc(s)

Type: R212T3

Dim: (W x H x D) 614 x 1913 x 325 mm

Manufacturer part #: 2CPX047201R9999

Depth: 325 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3550460 Striebel & John R212T3 Switchboard cabinet 614 x 1913 x 325 Steel 1 pc(s)

Description

Series switch cabinet, free cabinet, TriLine series, empty cabinet, type of installation: Surface-mounted, for indoors, with door, protection class I (earthed), applicable standards: DIN EN 61439-1, VDE 0660-600-1, DIN EN 61439-2, VDE 0660-600-2, DIN EN 61439-3, VDE 0660-600-3.

This text is machine translated.
