Striebel & John TW107G Cabinet 300 x 1100 x 350 Plastic, Steel plate Grey-white (RAL 7035), Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cabinet
Material
Plastic
Steel plate
Width
300 mm
Height
1100 mm
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
Cabinet
- Features
Double sided ward
- Material
Plastic
Steel plate
IP55
- Factory colour
Grey-white (RAL 7035)
Grey
- Width
300 mm
- Height
1100 mm
- Dimensions
1100 x 300 x 350 mm
- Content
1 pc(s)
- Type
TW107G
- Dim
(W x H x D) 300 x 1100 x 350 mm
- Manufacturer part #
2CPX010150R9999
- Depth
350 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2327523 Striebel & John TW107G Cabinet 300 x 1100 x 350 Plastic, Steel plate Grey-white (RAL 7035), Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2327523 Striebel & John TW107G Cabinet 300 x 1100 x 350 Plastic, Steel plate Grey-white (RAL 7035), Grey 1 pc(s)
Description

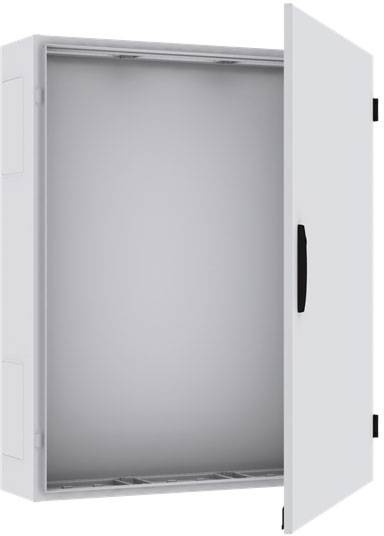

Wall cabinet, Twinline series, empty cabinet, assembly type: Surface-mounted, partly recessed, for indoor use, with door, protection class I (grounded), protection class IP55, applicable standards: DIN EN 61439-1; VDE 0660-600-1; DIN EN 61439-2; VDE 0660-600-3; IK code 08, powder-coated, in RAL 7035, steel sheet, single door With standard lock Double bit 3 mm, door opening angle 180 degrees, door stop right or left, rear wall made of sheet steel, cable entry cut out above flange opening, pre-embossed below via flange opening, pre-embossed on the side via flange opening, dimensions in mm (H x W x D): 1100 x 300 x 350, 7 RU latching unit, overall height 3, field width 1, space units 84, prepared for expansion with counter, distribution panels, combination sets, CombiLine modules or mounting plates on EDF/WR mounting frame
This text is machine translated.
This text is machine translated.
