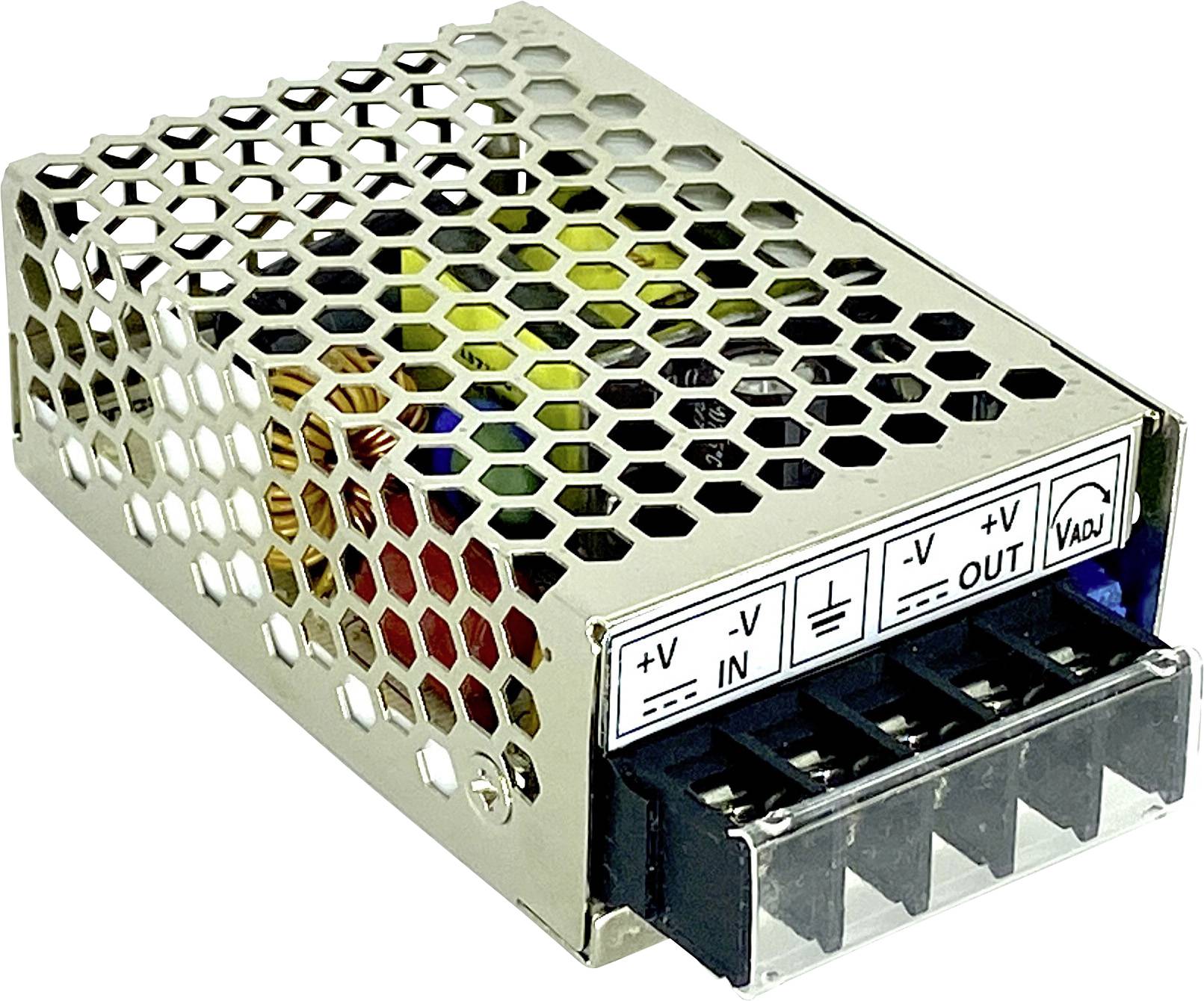

SunPower DC/DC converter SDS 036M-15 by Dehner Elektronik GmbH Dehner Elektronik SDS 036M-15 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
Only 4 Piece(s) available
Highlights & Details
SunPower DC/DC converter SDS 036M-15 by Dehner Elektronik GmbH
- Single DC/DC converter
- Information technology, industry
- Screw terminal
- Housing power supply
- Europe, USA / Canada
- Protection class: I
Technical specifications
- Product type
DC/DC converter
- Min. input voltage
19 V DC
- Input voltage (max.)
72 V DC
- Max. output current
2.4 A
- Output current (max.) - rounded
2.4 A
- Output voltage (max.)
15 V DC
36 W
- Connection
Screw terminal
- Dim
(L x W x H) 79 x 50.8 x 28.5 mm
- Max. operating temperature (derating)
70 °C
- Min. operating temperature (derating)
-20 °C
- Operating temperature (min.)
45 °C
- Weight
180 g
- Content
1 pc(s)
- PSU features
DC-to-DC converter
Regulated
- Width
50.8 mm
- Height
28.5 mm
- Length
79 mm
- RoHS-compliant
Yes
- Type
SDS 036M-15
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3338770 SunPower DC/DC converter SDS 036M-15 by Dehner Elektronik GmbH Dehner Elektronik SDS 036M-15 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3338770 SunPower DC/DC converter SDS 036M-15 by Dehner Elektronik GmbH Dehner Elektronik SDS 036M-15 1 pc(s)
Conformity certificate
Conformity certificate 3338770 SunPower DC/DC converter SDS 036M-15 by Dehner Elektronik GmbH Dehner Elektronik SDS 036M-15 1 pc(s)
Warranty Terms
Warranty Terms 3338770 SunPower DC/DC converter SDS 036M-15 by Dehner Elektronik GmbH Dehner Elektronik SDS 036M-15 1 pc(s)
Description
For the conversion and stabilization of DC voltage
Standard mounting fixture, therefore compatible with products of other power supply manufacturers
Long life through integration of high-quality components, high MTBF rate
Protection measures against overload, overvoltage and short circuit with automatic restart
· Increased temperature range of +70 ºC with derating
Can be used up to 5000 m above sea level
High efficiency through modern switch technology
No minimum load required
Tested according to EN, FCC. Internationally adjustable
This text is machine translated.
Standard mounting fixture, therefore compatible with products of other power supply manufacturers
Long life through integration of high-quality components, high MTBF rate
Protection measures against overload, overvoltage and short circuit with automatic restart
· Increased temperature range of +70 ºC with derating
Can be used up to 5000 m above sea level
High efficiency through modern switch technology
No minimum load required
Tested according to EN, FCC. Internationally adjustable
This text is machine translated.
