Sygonix SY-4600588 AHD CCTV camera set 2-channel incl. 2 cameras 1280 x 720 p
EAN:
Part number:
Item no:
309 Piece(s)
Sales and shipping:
Number
Total (€ 138.65 / piece)
€
Highlights & Details

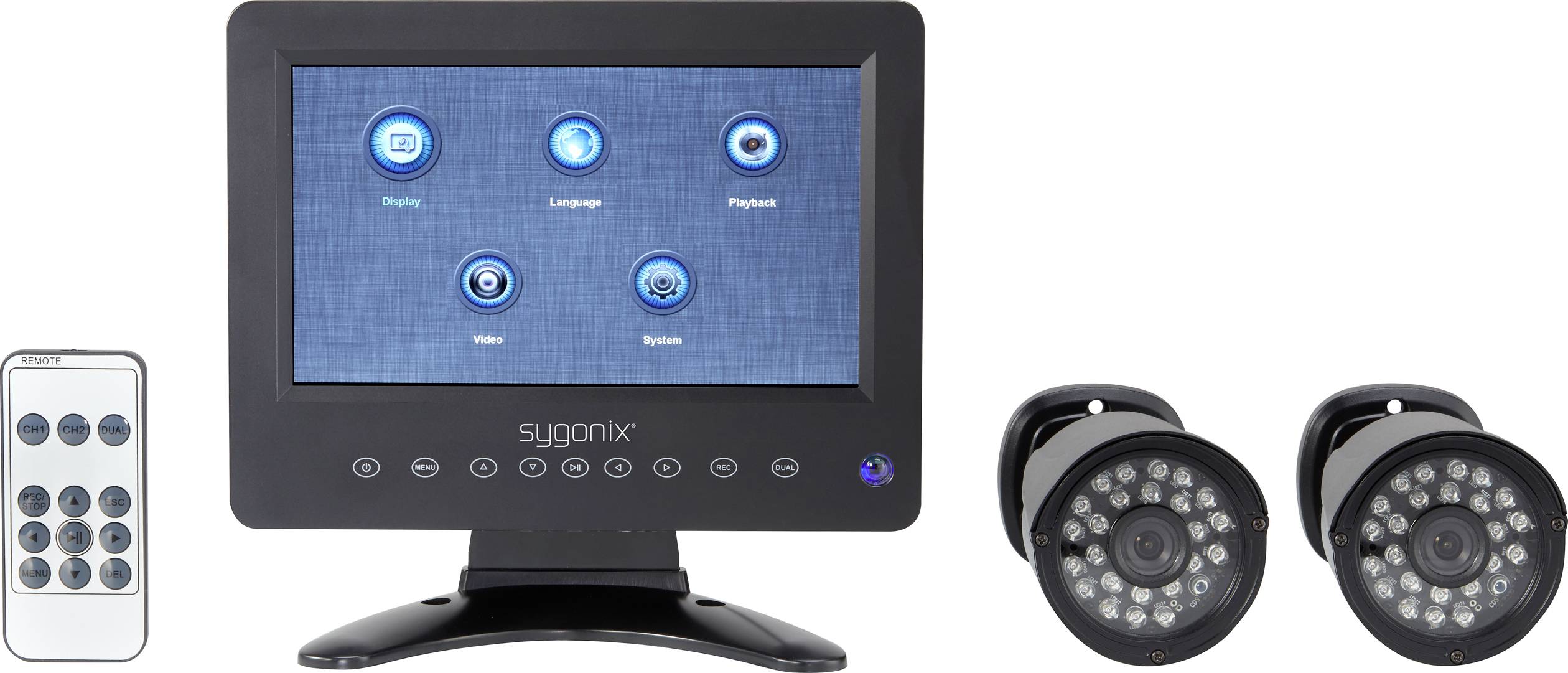

LCD-DVR combo system with 7" LCD monitor, 2x 720P IP65 cameras
- 2 wired cameras with IR LEDs
- 720P high definition
- Record 2 channels individually on memory card
Technical specifications

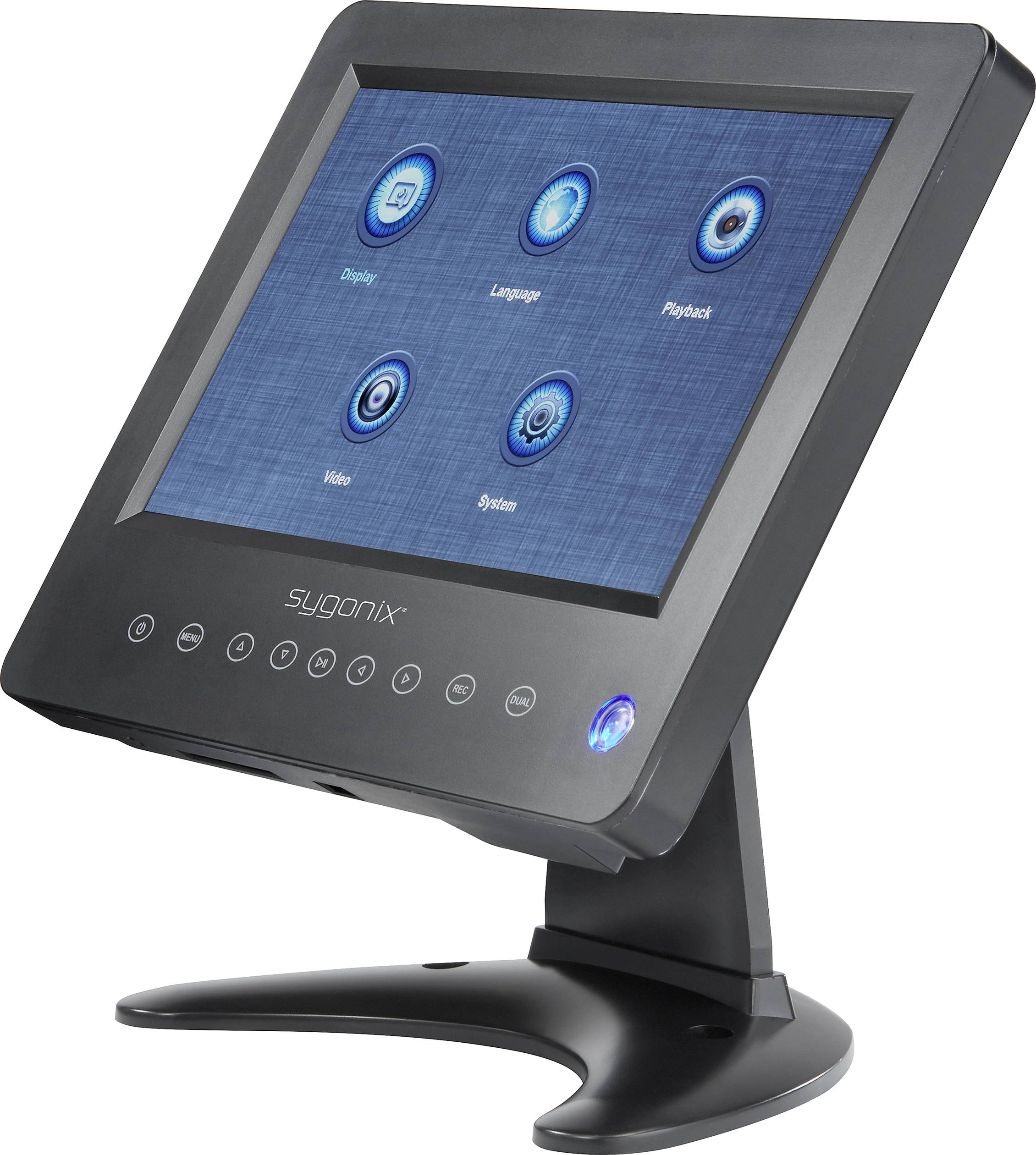

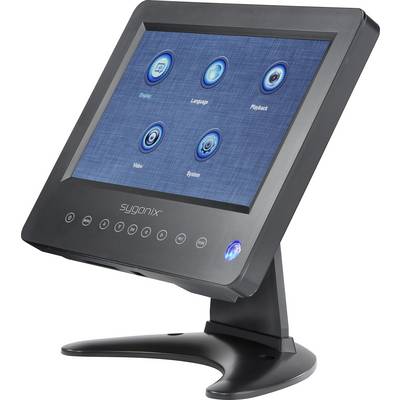

- Monitor:
- Display 17.78 cm (7") TFT LCD (16:9)
- Resolution 1024 x 600 (horizontal x vertical)
- Input video format: AHD-720P/ CVBS
- H.264 video compression
- Video file format: MOV
- Memory capacity: SD/SDHC/SDXC cards up to 128 GB
- Power supply 12 VDC, 1 A.
- Power consumption: Max. 6 W

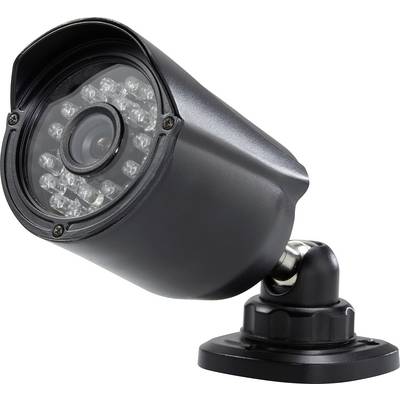

- Camera.
- Number of IR LEDs: 24
- Protection system: IP65
- Power supply 12 VDC, 1 A.
- Power consumption: Max. 3 W
- Motion detection: By means of image recognition, up to max. 10 m.
- CCTV features
IR LEDs
Saves footage on SD card
- Signal standard
AHD
- Channels
2
- Sensor type
CMOS
- Sensor size
6.35 mm (1/4")
- Used at
Outdoors
- Recording mode
Manual
Movement detection
- IR range (max.)
15 m
- Focal length
4,3 mm
- Max. viewing angle hor.
70°
- Vertical viewing angle
70°
- Light sensitivity (+ IR)
0 lx
- Resolution (max.)
1280 x 720 p
IP65
- Plastic free packaging
Plastic-free packaging
- Product type
CCTV camera set
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2300294 Sygonix SY-4600588 AHD CCTV camera set 2-channel incl. 2 cameras 1280 x 720 p
Conformity certificate
Conformity certificate 2300294 Sygonix SY-4600588 AHD CCTV camera set 2-channel incl. 2 cameras 1280 x 720 p
Warranty Terms
Warranty Terms 2300294 Sygonix SY-4600588 AHD CCTV camera set 2-channel incl. 2 cameras 1280 x 720 p
Description
Two cameras, one set

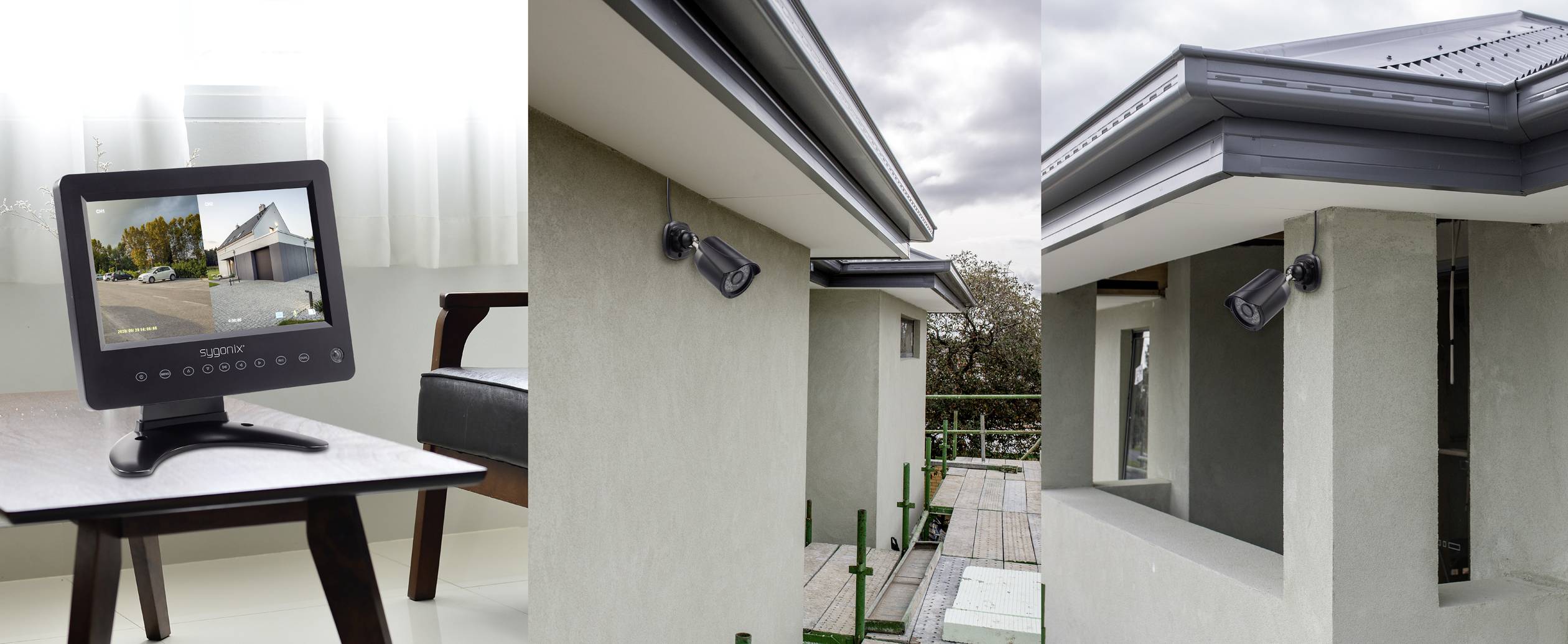

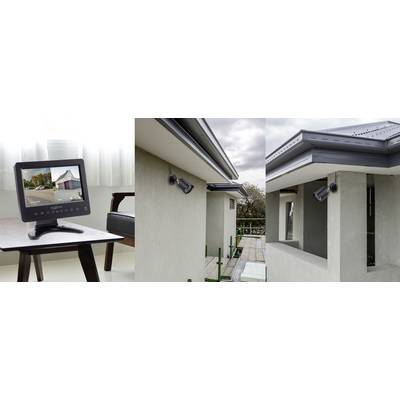

The Sygonix AHD surveillance camera set is equipped with two wired IR LED cameras that allow you to monitor the environment from two perspectives at an angle of 70° (horizontal and vertical). The supplied 7-inch (17.78 cm) LCD monitor plays back the recordings in 16:9 format and the system automatically saves the recordings of the two channels on an SD card (not included).
Good view - even at night
The cameras have a resolution of 720 pixels and are equipped with a motion detection to trigger recordings automatically. The recording can, of course, also be controlled manually. And even in the dark, the surveillance system with a night vision distance of 15 meters offers the full overview. To install all components in place, all necessary screws and dowels are included in the delivery.
This text is machine translated.
The Sygonix AHD surveillance camera set is equipped with two wired IR LED cameras that allow you to monitor the environment from two perspectives at an angle of 70° (horizontal and vertical). The supplied 7-inch (17.78 cm) LCD monitor plays back the recordings in 16:9 format and the system automatically saves the recordings of the two channels on an SD card (not included).
Good view - even at night
The cameras have a resolution of 720 pixels and are equipped with a motion detection to trigger recordings automatically. The recording can, of course, also be controlled manually. And even in the dark, the surveillance system with a night vision distance of 15 meters offers the full overview. To install all components in place, all necessary screws and dowels are included in the delivery.
This text is machine translated.
Features
- Monitor:
- Display: 7"" TFT LCD (16:9)
- Resolution: 1024(H) x 600(V)
- Input video format: AHD-720P/ CVBS
- Video compression: H.264
- Video file format: MOV
- Memory capacity: SD/SDHC/SDXC card up to 128 GB
- Power supply: 12 V/DC, 1 A
- Power consumption: 6 W max.

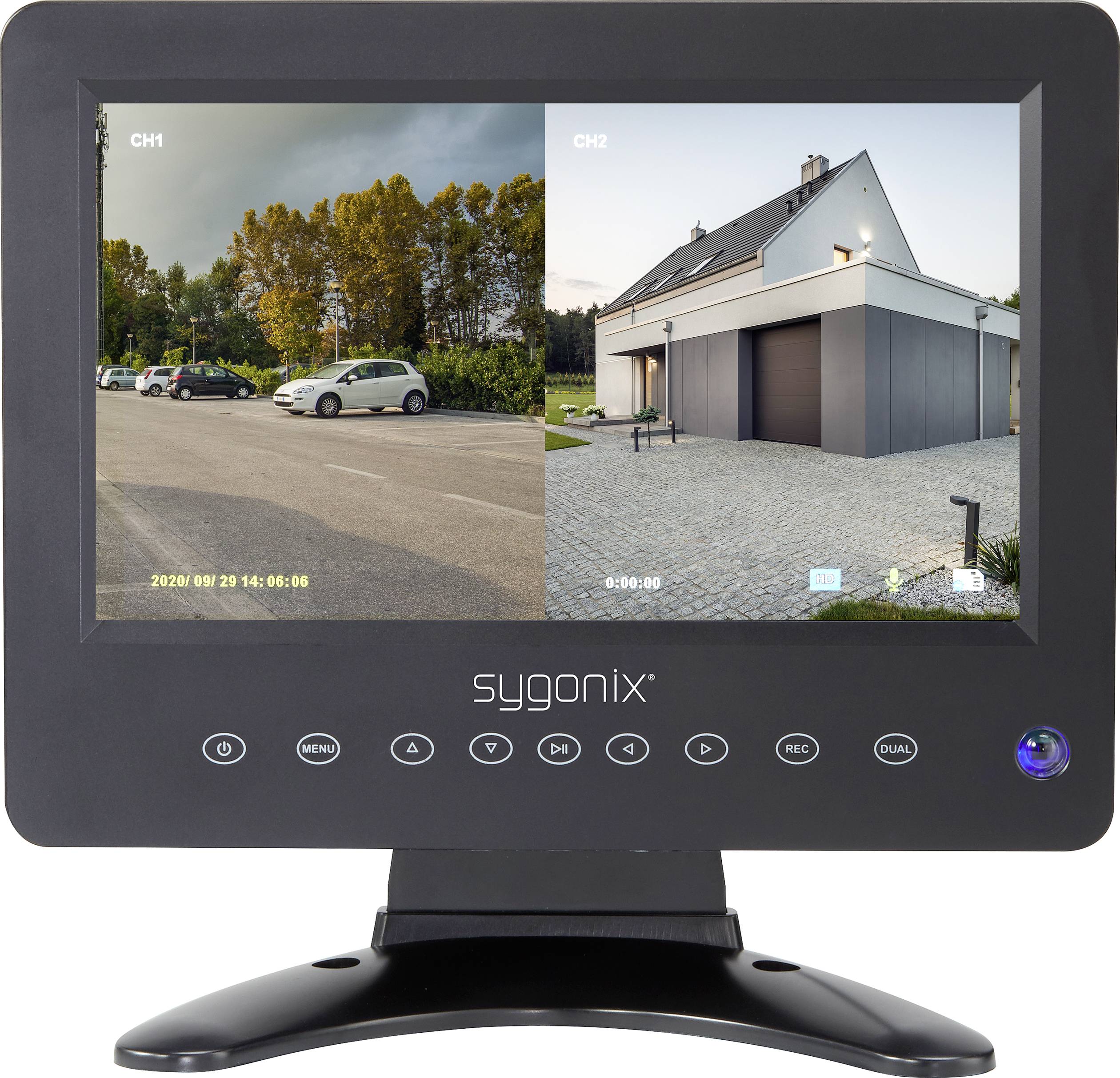

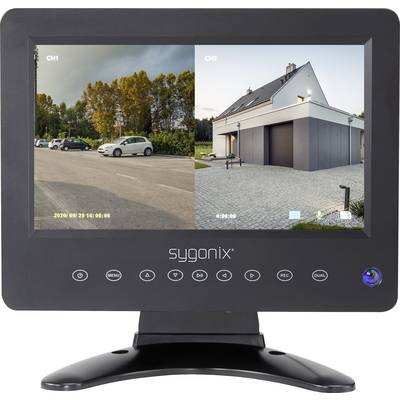

- Dual screen display
- Supports up to 2 AHD cameras
- Record & playback resolution up to 720 P
- Recording Mode: Manual/motion detection

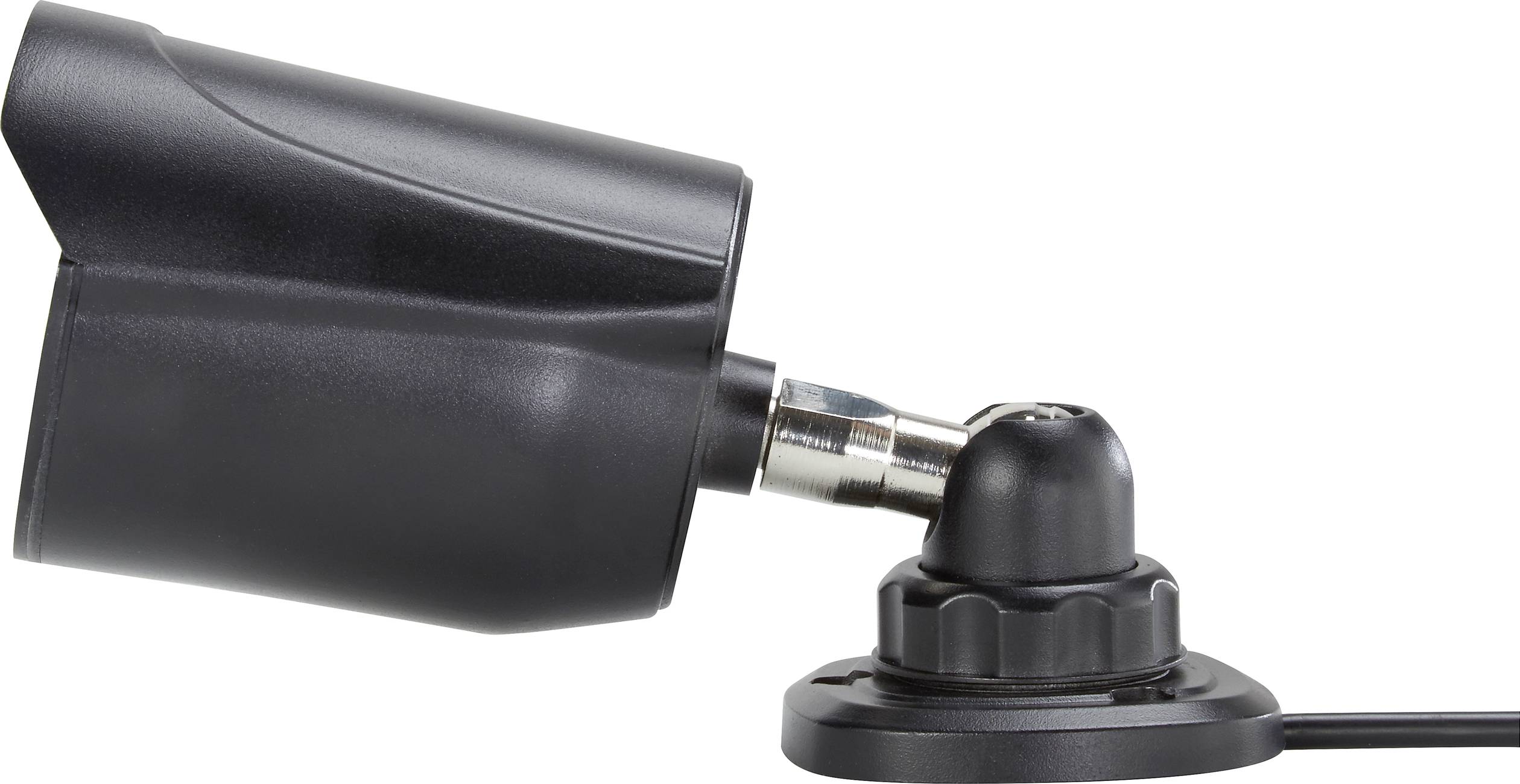

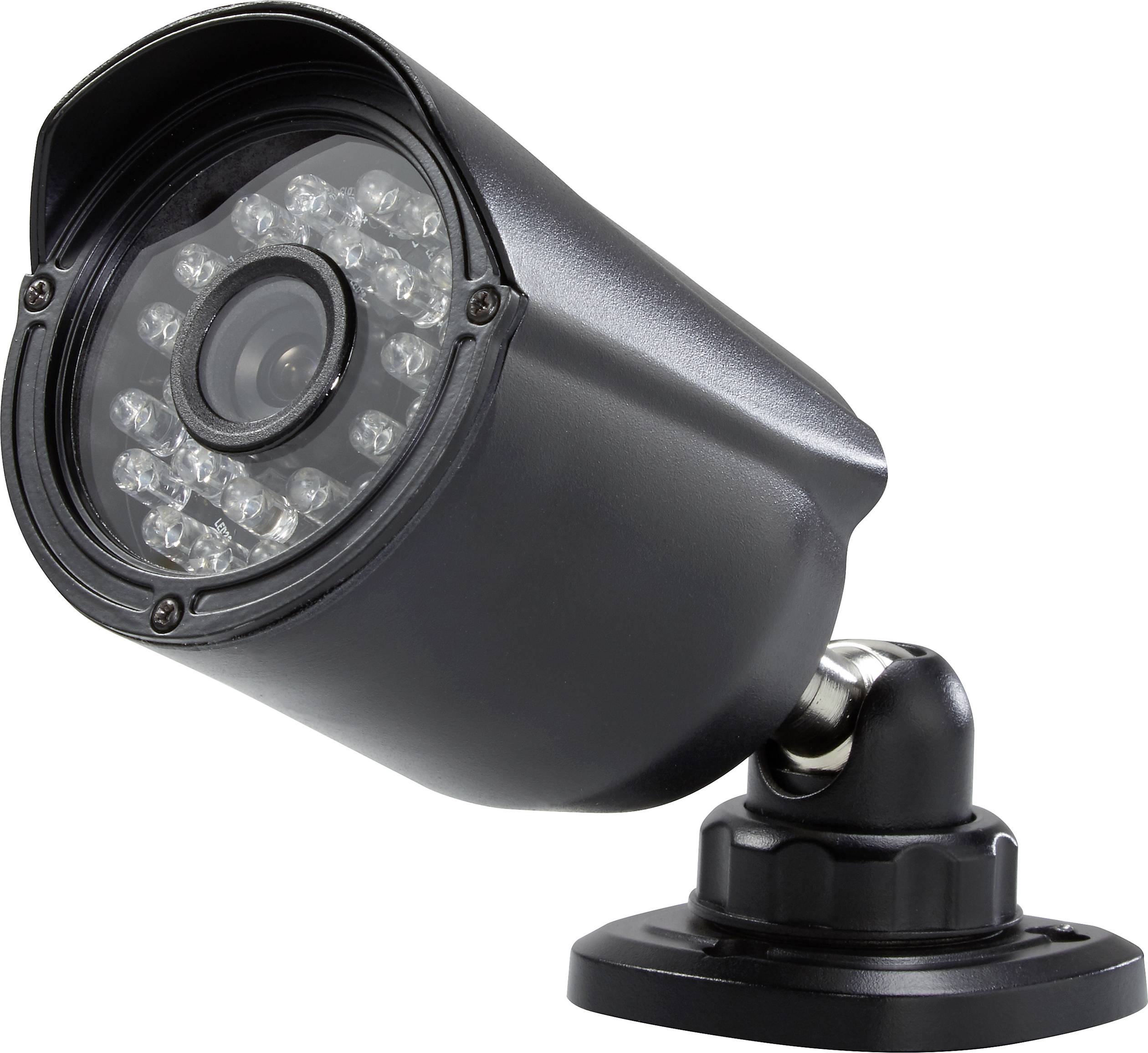

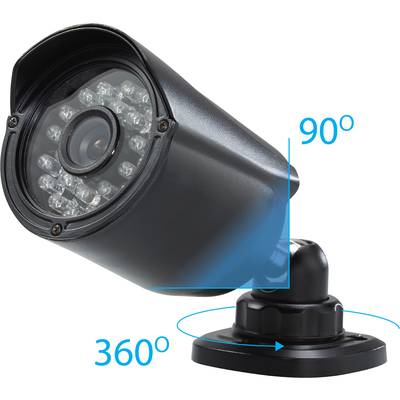

- Camera
- Image sensor: 1/4"" color CMOS
- Resolution: 1280 x 720P
- Focal length: 4.3 mm

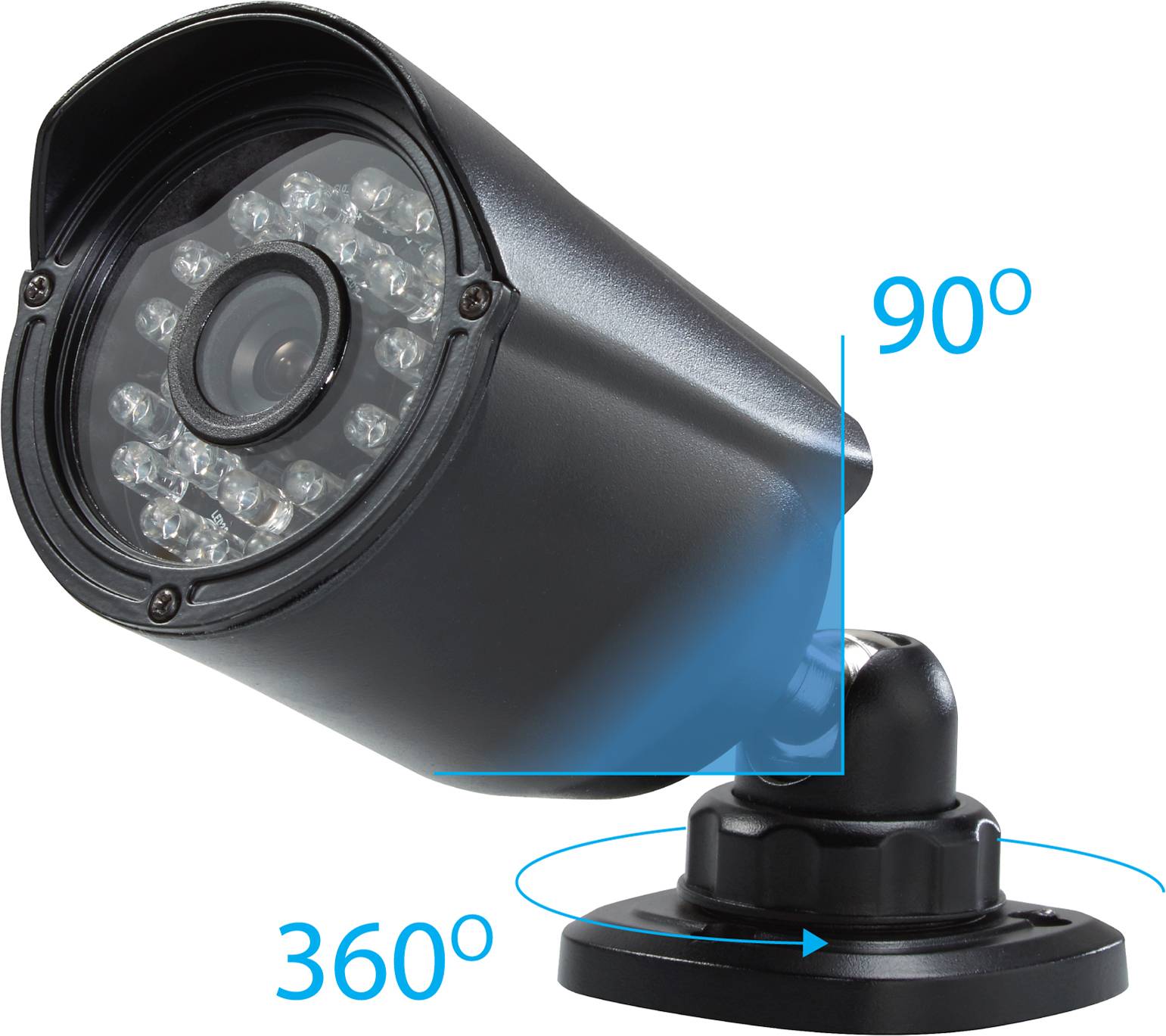

- Viewing angle: horizontal 70°, vertical 70°
- IR LED: 24 pcs
- IP65
- Power supply: 12 V/DC, 1 A
- Power consumption: 3 W max.
- Night vision distance: max. 15 m
- Light sensitivity: 0 Lux (IR on)
- Motion detection: Yes, by image detection, max. 10 m

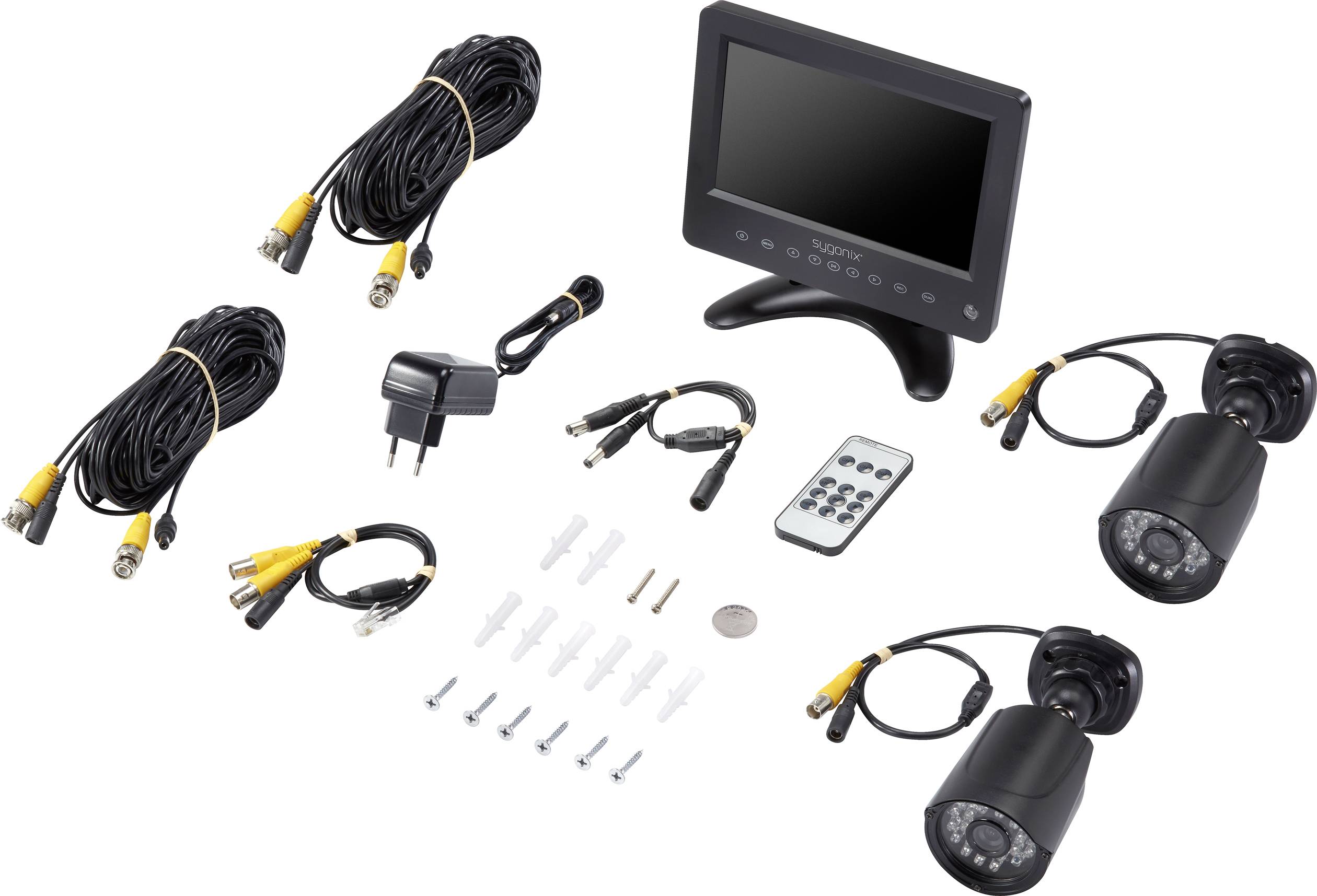

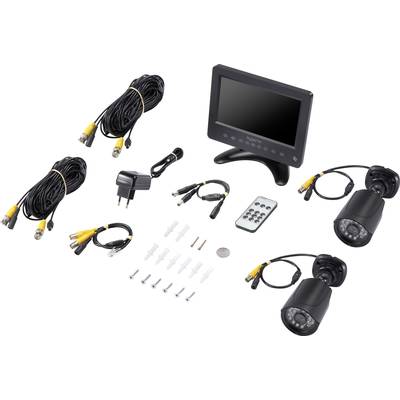

Scope of delivery

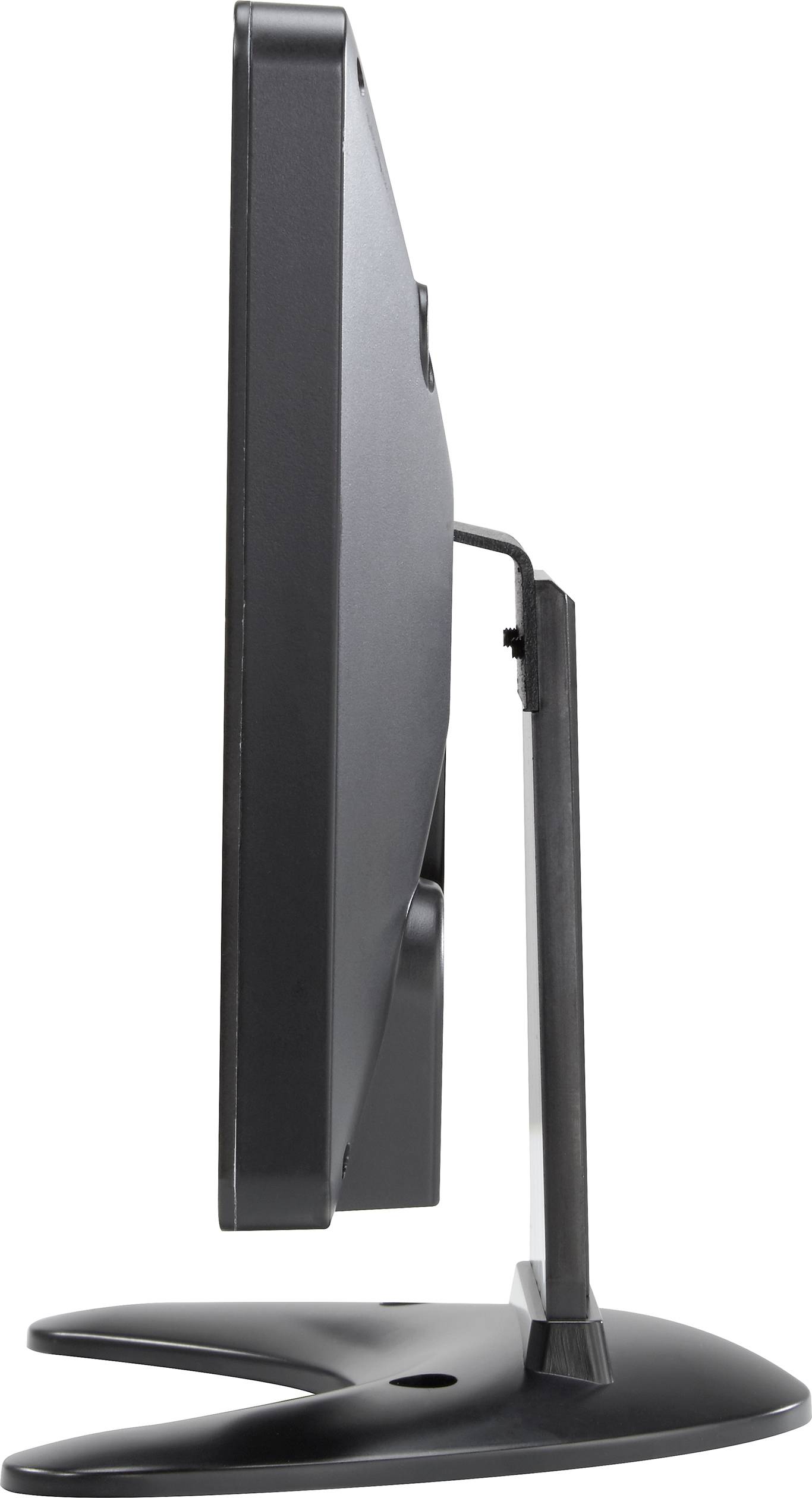

- Monitor with bracket
- 2x Cameras with bracket
- Adaptor for monitor and camera
- 2x 18.3 m connection cables
- Remote control (with CR2025 battery)
- 1-3 power distribution cable

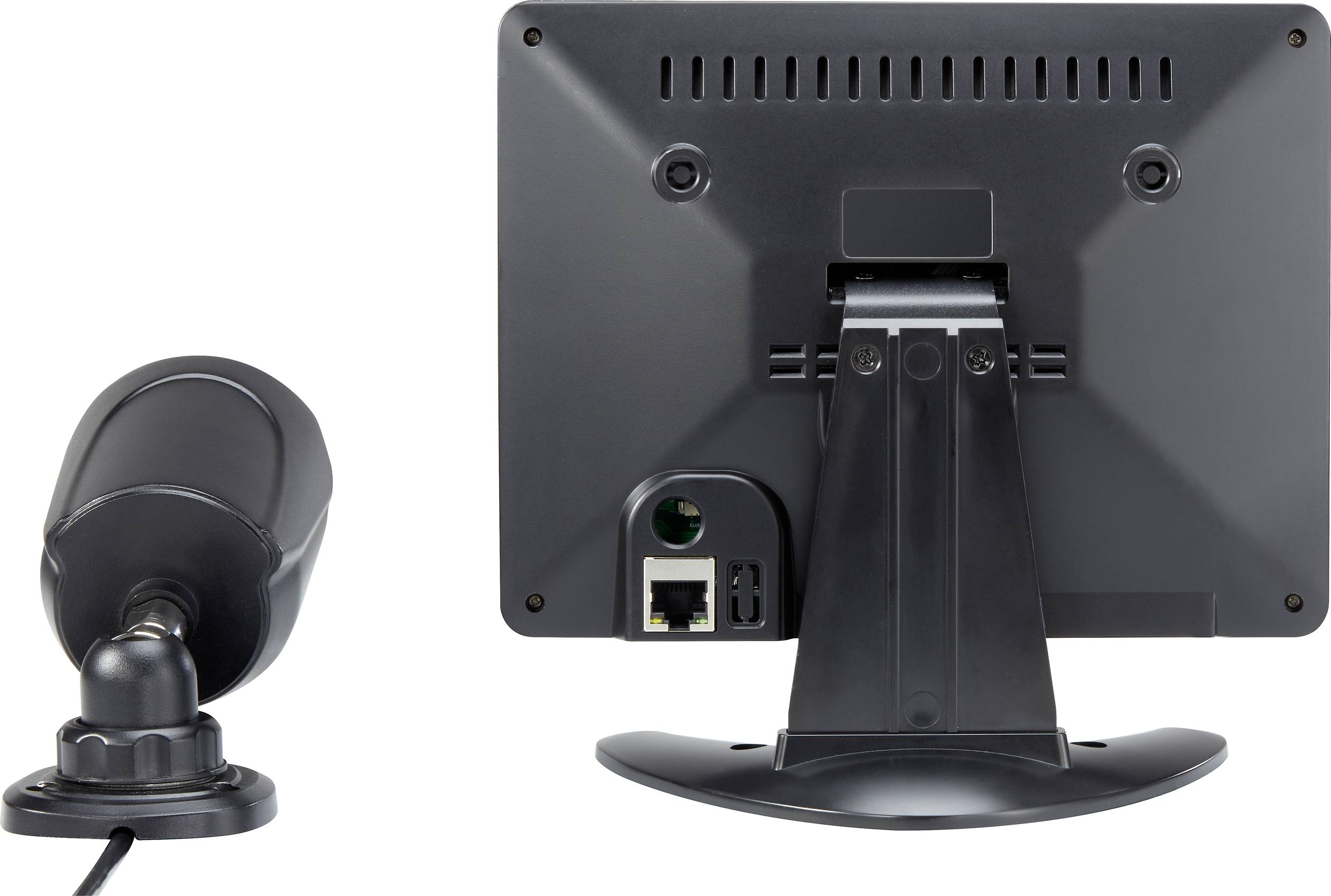

- RJ45 to 2xBNC + DC cable
- 6x Screws for camera
- 2x Screws for monitor
- 8x Dowels
- User manual
Hints
Memory card not included
