Building Service Technology & Smart LivingElectrical WiringSocket StripsPower Strips

Sygonix SY-6901966 Worktop socket 5x Black, Grey PG connector 1 pc(s)

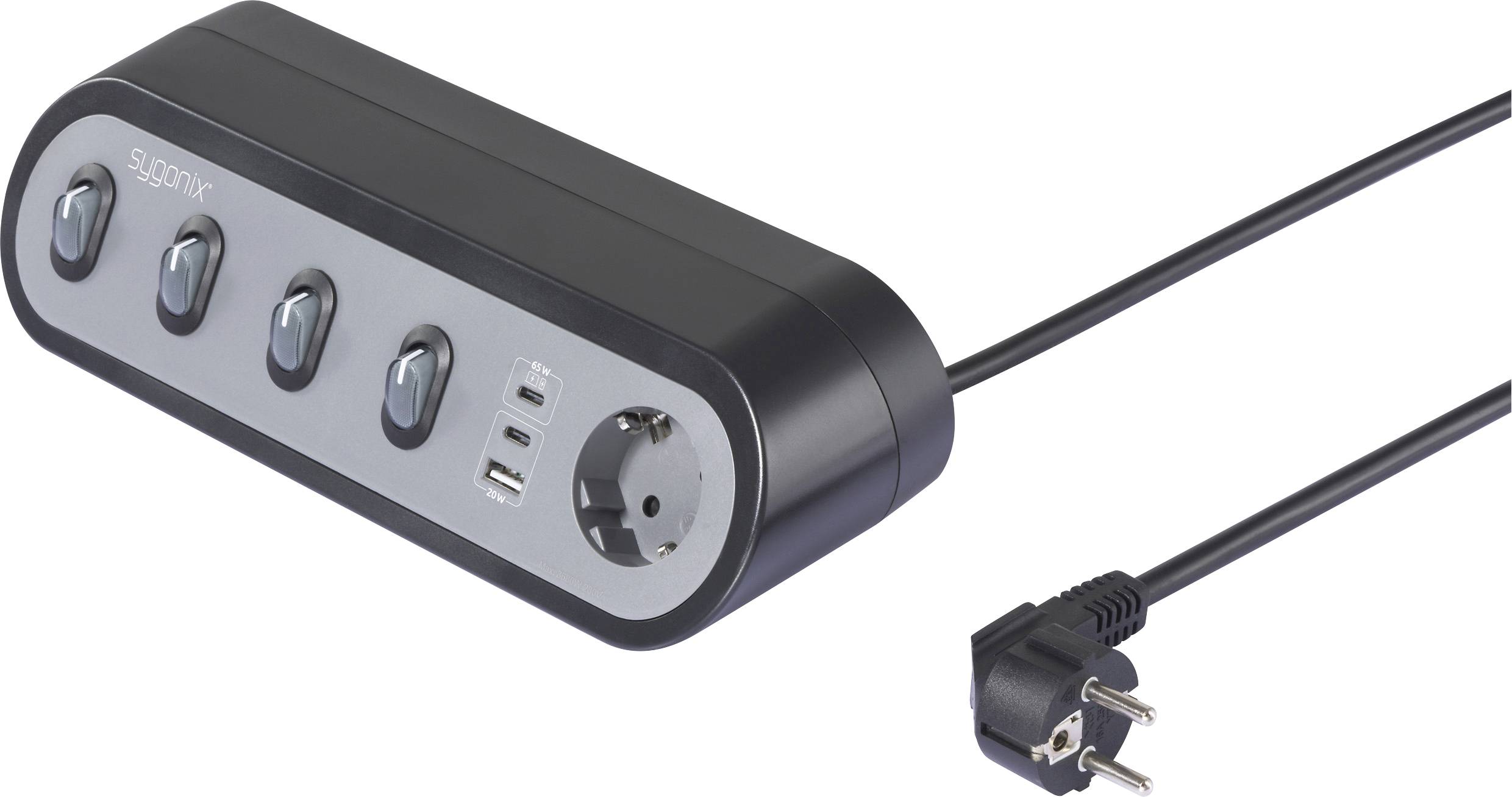

A black power strip with four individual switches, a power socket, two USB ports, and a plug.
'A black power strip with four round sockets and a black cord, viewed from a slight angle.'

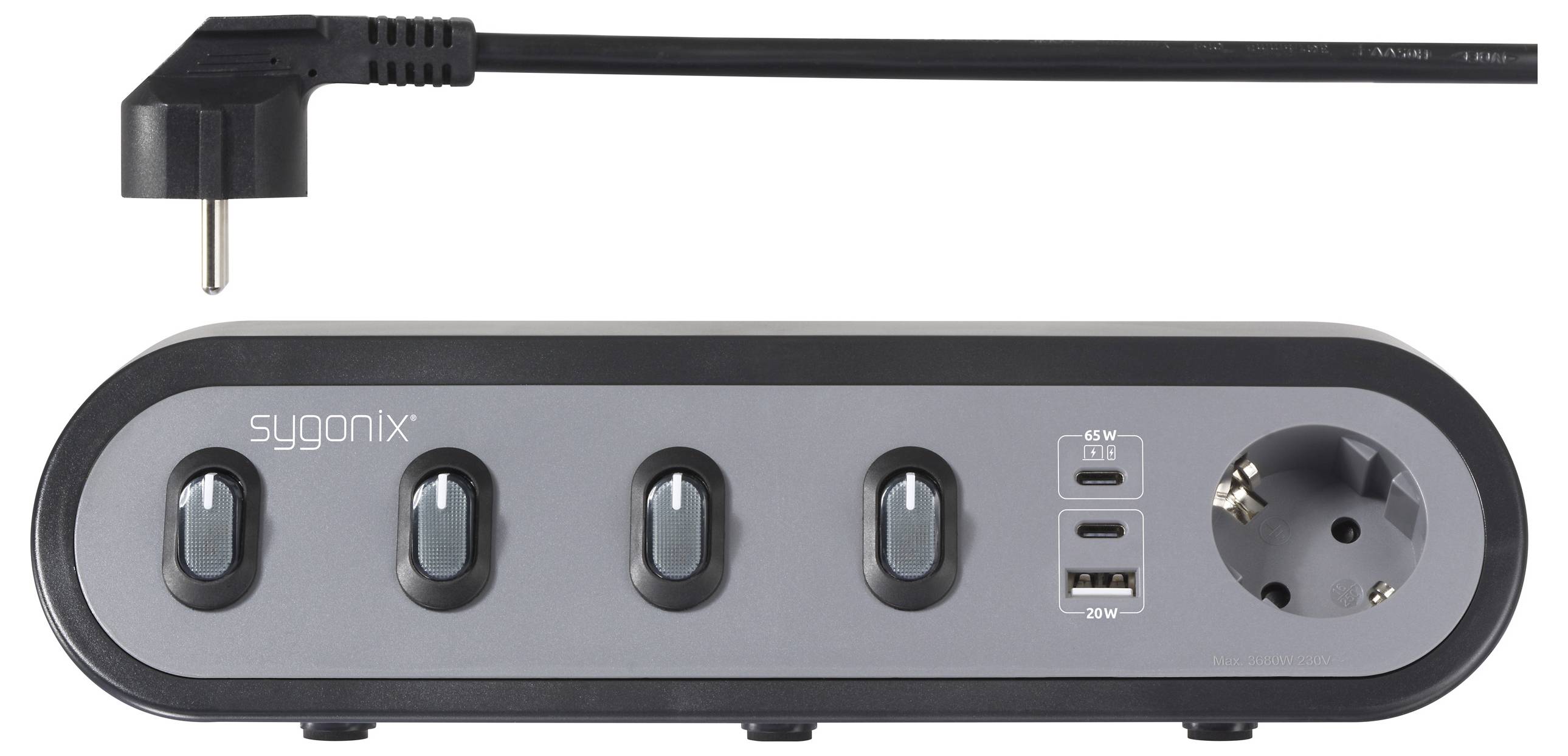

A power strip with four switches, two USB ports, and one power socket. The plug is attached to the strip by a cord.

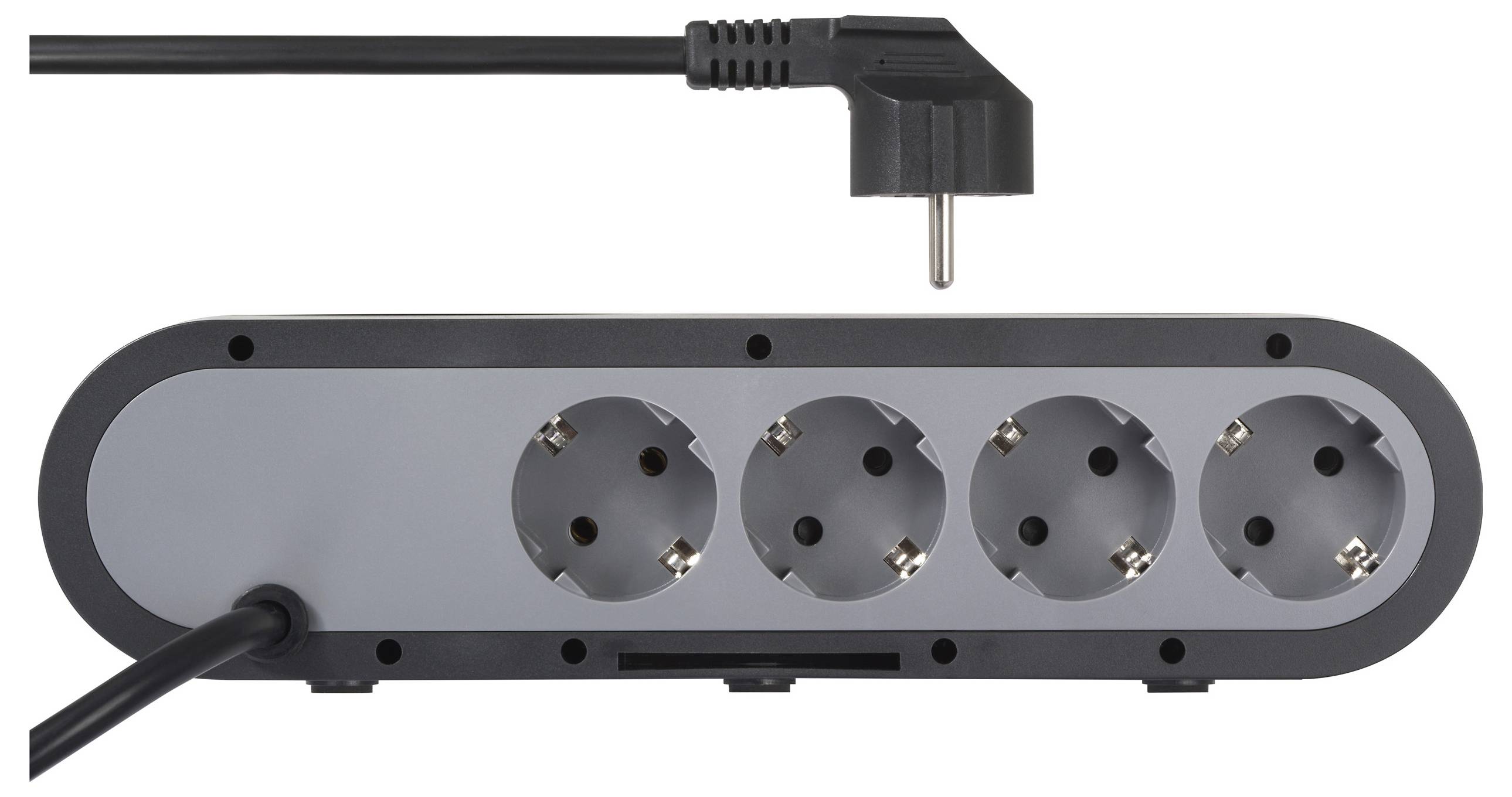

A four-socket power strip with a connected black power cord and plug, positioned for easy access and use.

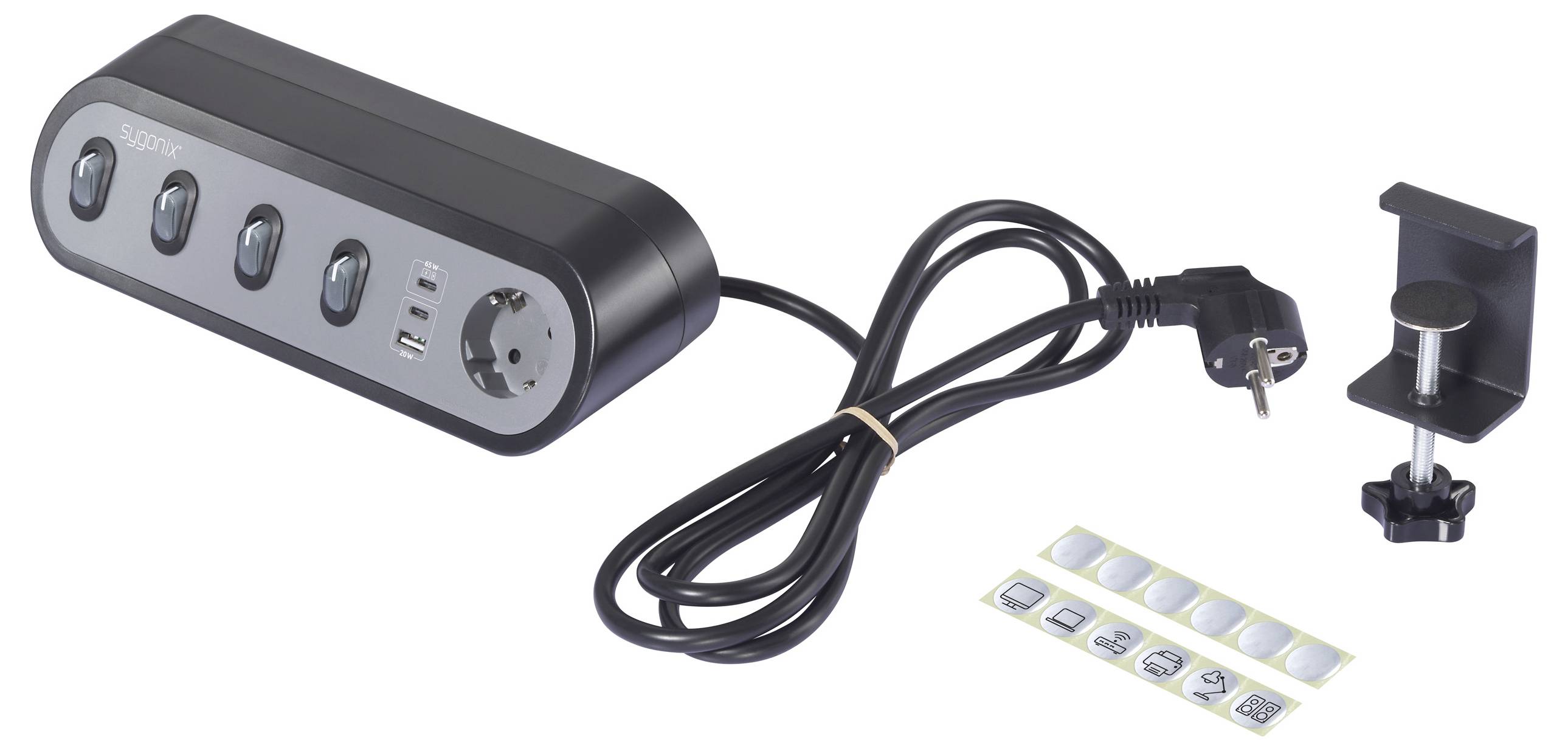

'Power strip with three outlets, USB port, European plug, and mounting bracket. Includes adhesive labels for customization.'

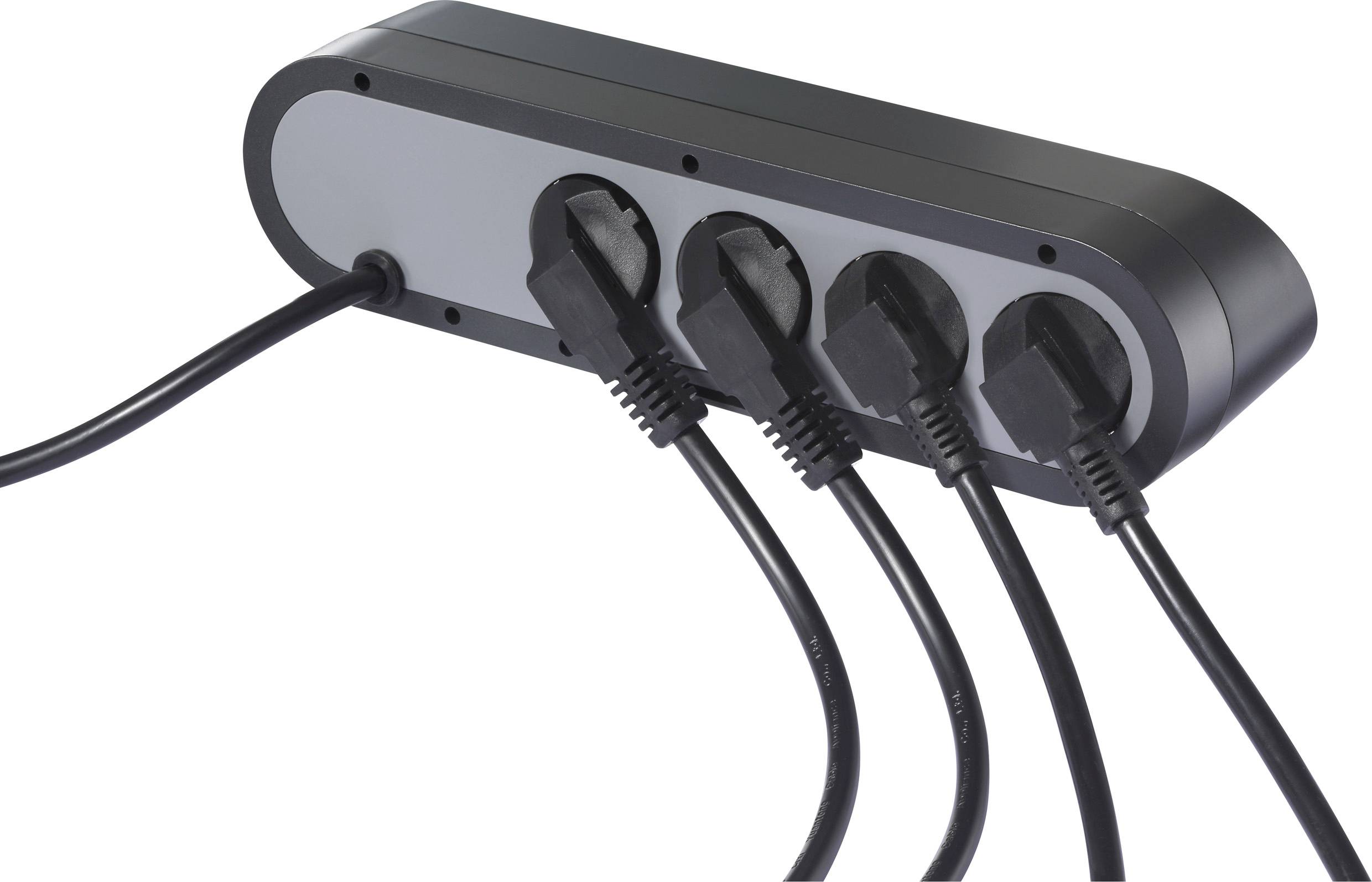

A black power strip with four plugged-in cables, showing a compact design suitable for organizing multiple electronic devices.

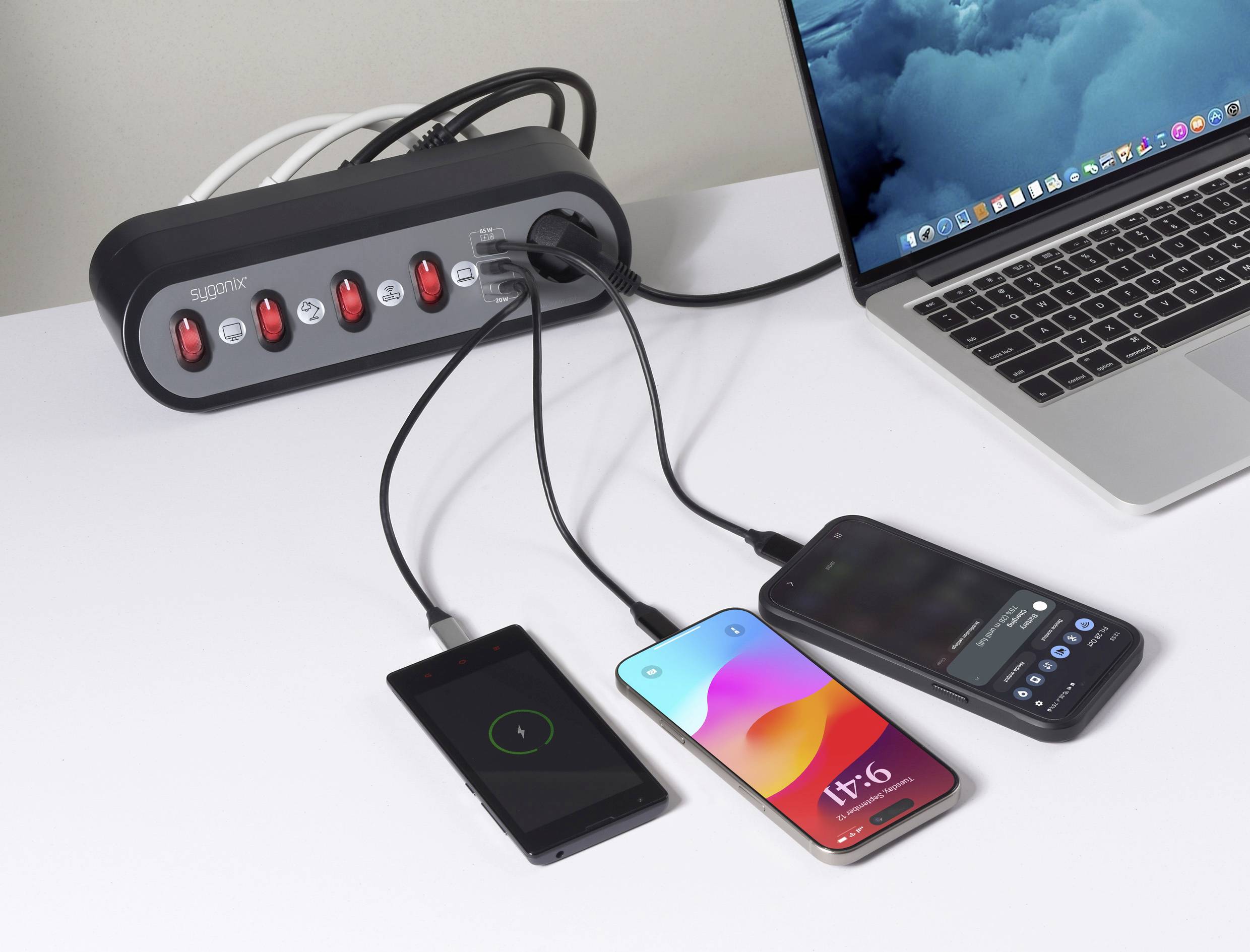

A power strip and a laptop sit on a desk. Three smartphones are connected and charging. The laptop displays a cloud-themed desktop background.

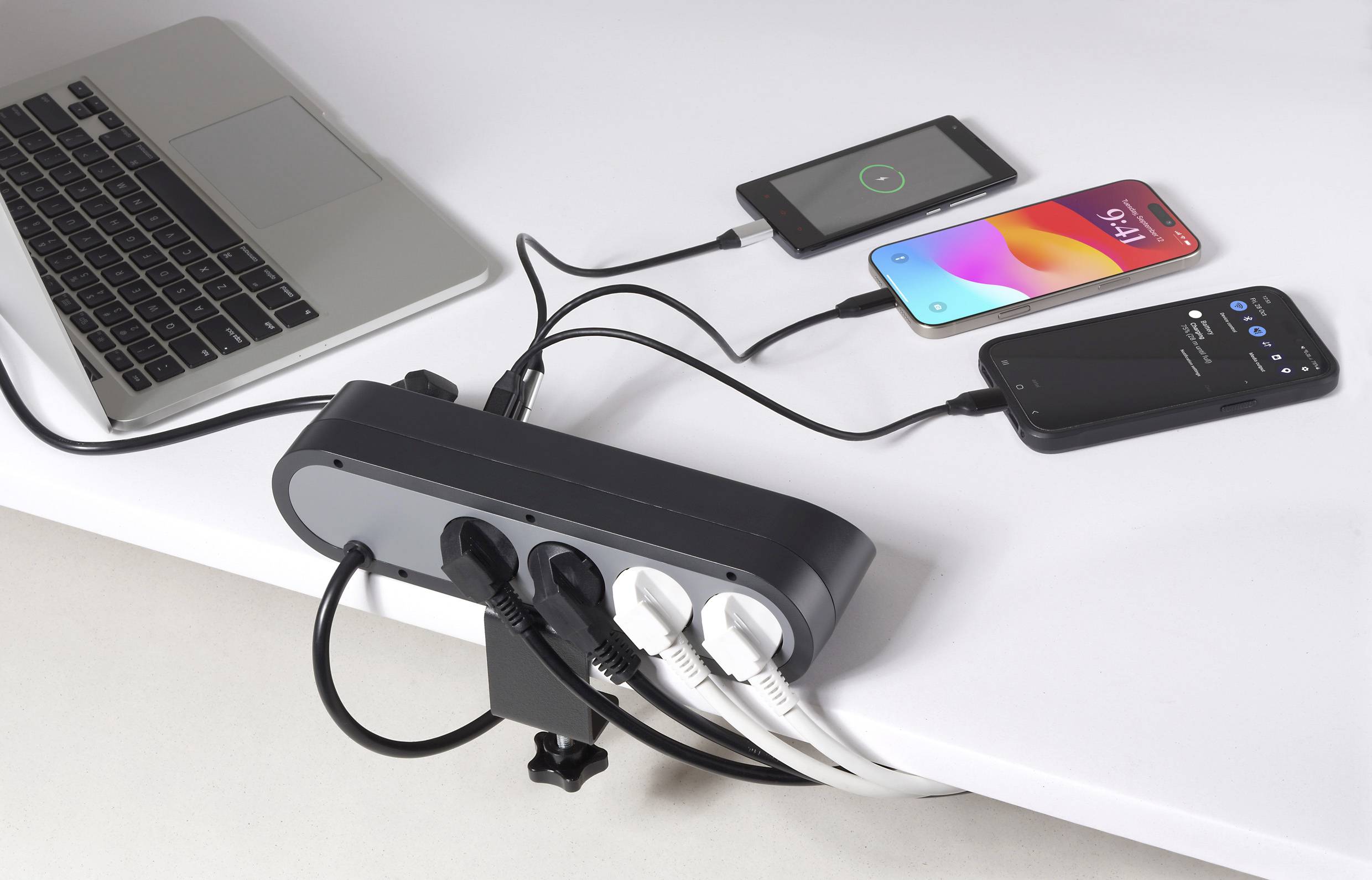

A power strip on a desk charges two smartphones and a laptop. Multiple wires connect devices, showing efficient charging setup.

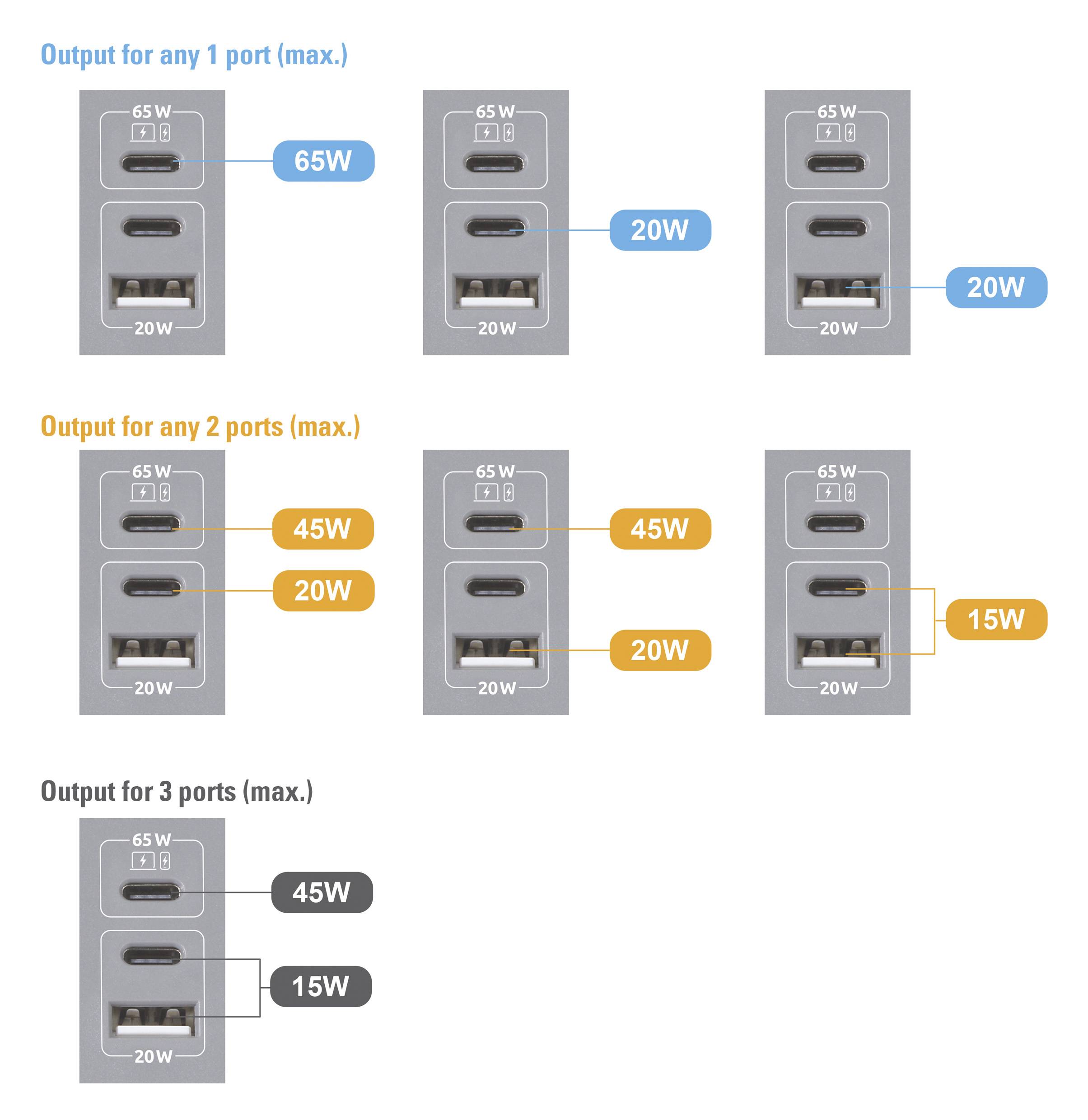

'Charging port diagram showing power output: 65W or 20W for one port; for two ports: 65W+20W or 45W+45W or 20W+15W; for three ports: 45W+45W+15W.'
1/9
EAN:
Part number:
Item no:
Fast track dispatch on Tue 3 Nov
420 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 33.99 / piece)
€ 33.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Office power management, 5 sockets + USB A/C

  • 5x protective contact sockets (1 front, 4 rear)
  • 1x USB-A + 2x USB-C® PD3.0 charging ports, up to max. 65 W
  • 4x on/off switches for controlling 4x rear sockets

Our service for you

Technical specifications

  • USB-A:
  • 5.0 V/DC 3.0A, max. 15.0W
  • 9.0 V/DC 2.22A, max. 20.0W
  • 12.0 V/DC 1.67A, max. 20.0W
  • USB-C1:
  • 5.0 V/DC 3.0A, max. 15.0W
  • 9.0 V/DC 3.0A, max. 27.0W
  • 12.0 V/DC 3.0A, max. 36.0W
  • 15.0 V/DC 3.0A, max. 45.0W
  • 20.0 V/DC 3.25A, max. 65.0W
  • USB-C2:
  • 5.0 V/DC 3.0A, max. 15.0W
  • 9.0 V/DC 2.22A, max. 20.0W
  • 12.0 V/DC 1.67A, max. 20.0W
  • USB-C1 + C2:
  • C1:
  • 5.0 V/DC 3.0A, max. 15.0W
  • 9.0 V/DC 3.0A, max. 27.0W
  • 12.0 V/DC 3.0A, max. 36.0W
  • 15.0 V/DC 3.0A, max. 45.0W
  • 20.0 V/DC 2.25A, max. 45.0W
  • C2:
  • 5.0 V/DC 3.0A, max. 15.0W
  • 9.0 V/DC 2.22A, max. 20.0W
  • 12.0 V/DC 1.67A, max. 20.0W
  • USB-C1 + USB-A:
  • C1:
  • 5.0 V/DC 3.0A, max. 15.0W
  • 9.0 V/DC 3.0A, max. 27.0W
  • 12.0 V/DC 3.0A, max. 36.0W
  • 15.0 V/DC 3.0A, max. 45.0W
  • 20.0 V/DC 2.25A, max. 45.0W
  • A:
  • 5.0 V/DC 3.0A, max. 15.0W
  • 9.0 V/DC 2.22A, max. 20.0W
  • 12.0 V/DC 1.67A, max. 20.0W
  • USB-C2 + USB-A:
  • 5.0 V/DC 3.0A, max. 15.0W
  • USB-C1 + C2 + USB-A:
  • C1:
  • 5.0 V/DC 3.0A, max. 15.0W
  • 9.0 V/DC 3.0A, max. 27.0W
  • 12.0 V/DC 3.0A, max. 36.0W
  • 15.0 V/DC 3.0A, max. 45.0W
  • 20.0 V/DC 2.25A, max. 45.0W
  • C2 + A:
  • 5.0 V/DC 3.0A, max. 15.0W
Product type

Worktop socket

Light bulb features

incl. switch

incl. USB

incl. USB-C®

Power Delivery

Outlets

5

Cable length

1.80 m

Used at

Indoors

Mounting type

Table

Material

Plastic

Plug type

PG connector

Cable standard

H05VV-F 3G 1,5 mm²

Operating voltage

230 V AC

Factory colour

Black

Grey

Length

270 mm

Width

92 mm

Height

73 mm

Plastic free packaging

Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3450983 Sygonix SY-6901966 Worktop socket 5x Black, Grey PG connector 1 pc(s)

Warranty Terms

Warranty Terms 3450983 Sygonix SY-6901966 Worktop socket 5x Black, Grey PG connector 1 pc(s)

Description

Features

  • USB overcurrent protection, overvoltage cut-off, short-circuit protection
  • Enhanced protection against accidental contact
  • Includes mounting clamp for tables up to 48mm thick

Scope of delivery

  • Socket strip
  • Desk clamp
  • 6x Switch prompt stickers
  • 6x Blank stickers
  • User manual
