Highlights & Details

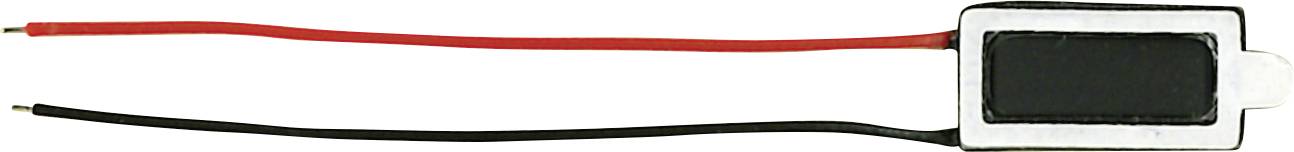

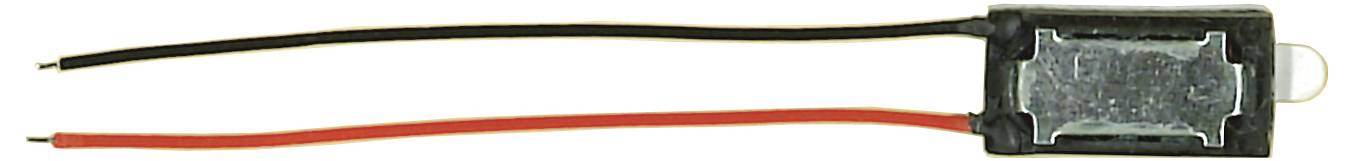

Speaker Mini 1206 with sound capsule

Tiny speaker, e.g. for connecting to a sound decoder
This text is machine translated.

Technical specifications

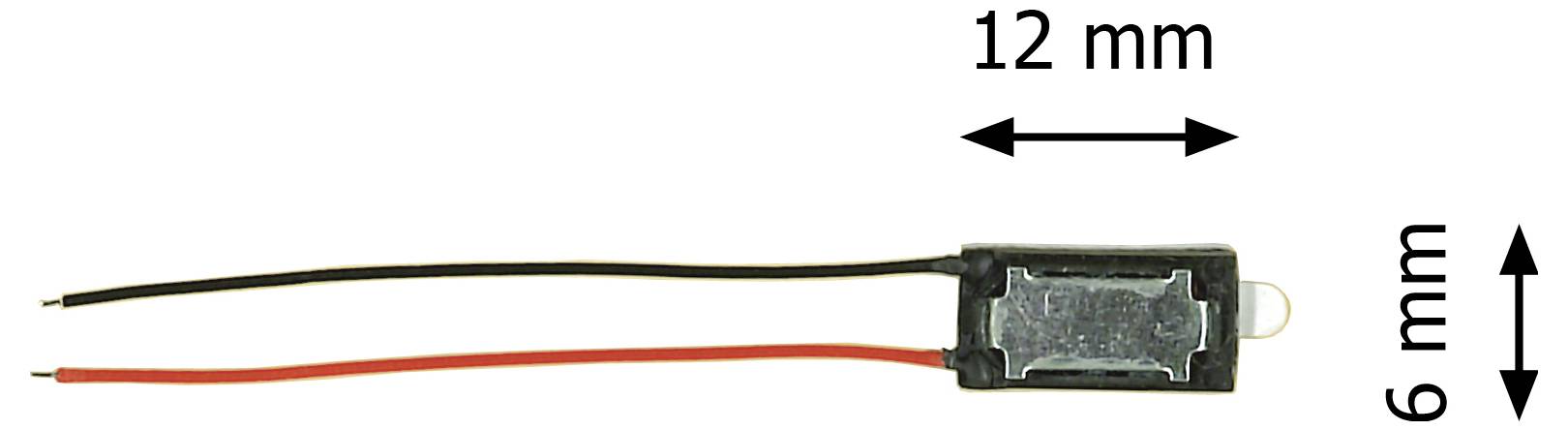

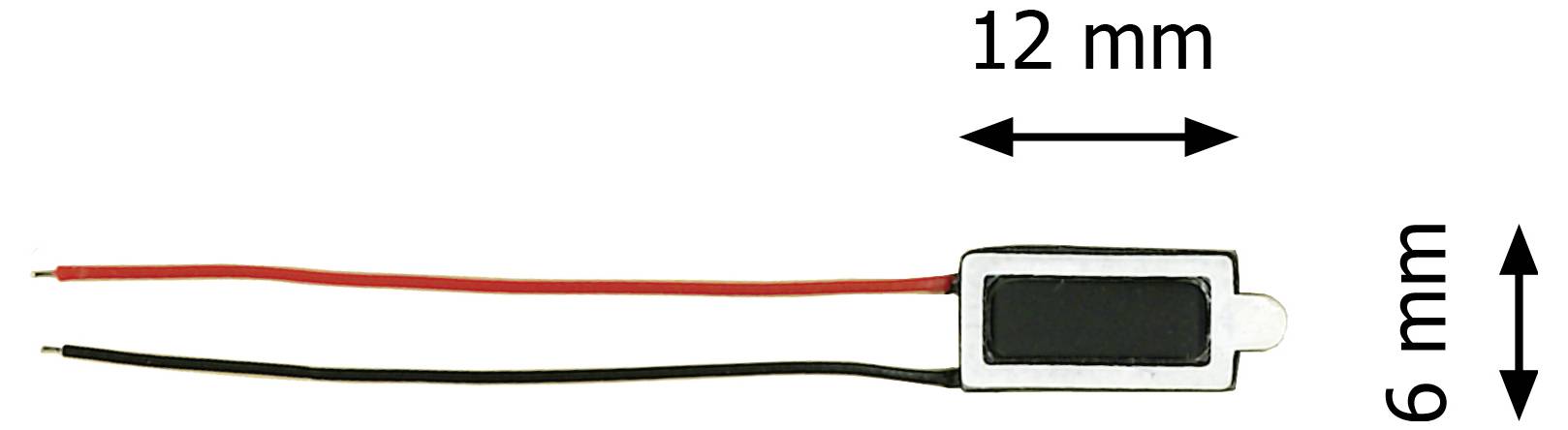

Dimensions net 12 x 6 x 2.7 mm (± 0.2 mm)

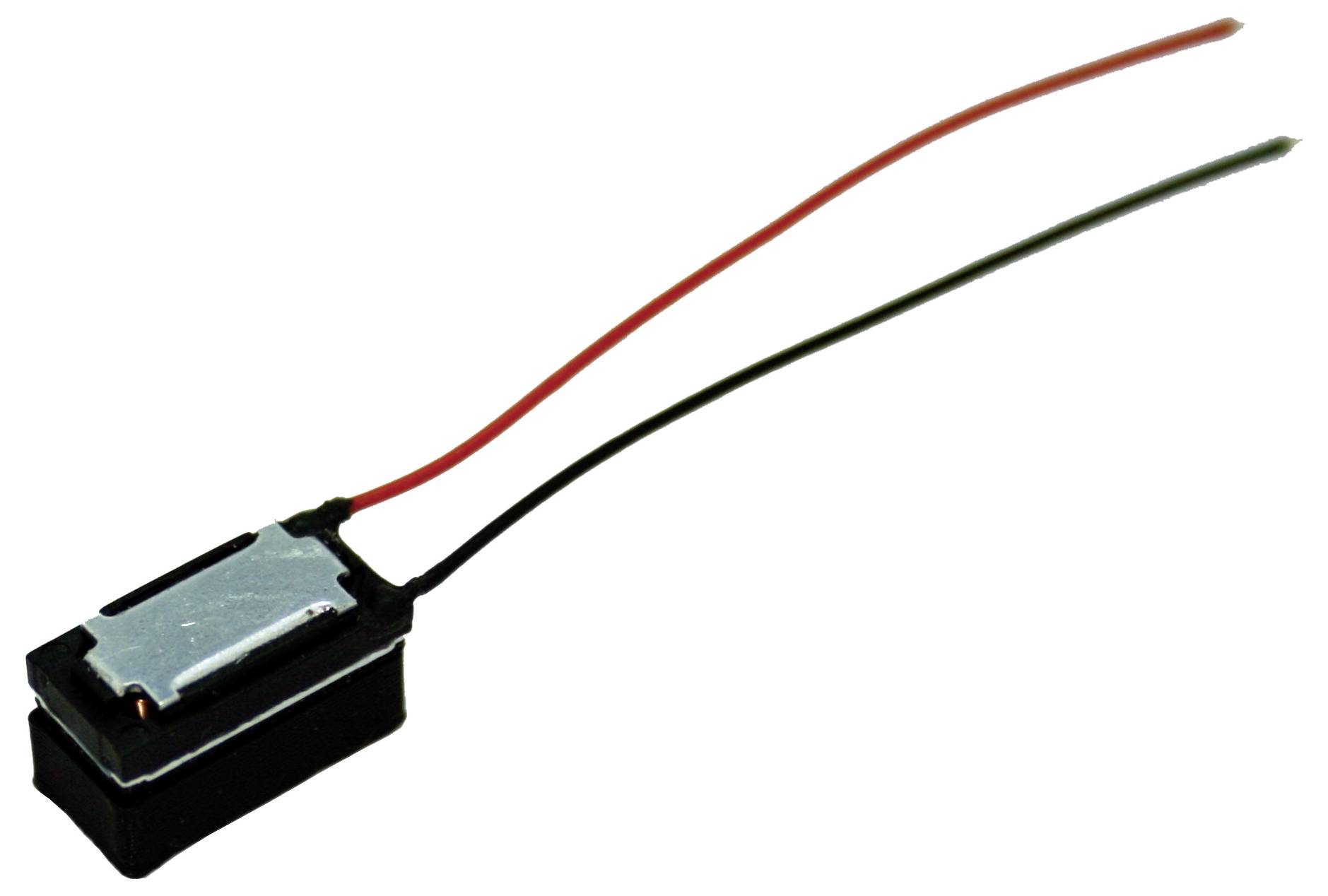

Dimensions with sound capsule: 12 x 6 x 6.5 mm (± 0.2 mm)
Nominal load 1.0 W
Maximum load carrying capacity 1.5 W
Nominal impedance 6 ohms (± 15%)
Transmission range (-10 dB) 700 - 20,000 Hz
Medium sound pressure level (1 W/1 m) 73 ± 3dB
Resonant frequency fs: 1,300 Hz (± 20%)
Length of connection cable 40 mm
Weight net: 0.6 g
Weight with sound capsule: 0.8 g
PLA material (polylactid)

Product type: Loudspeaker

Type: Prefab component

Documents & Downloads

Datasheet

Datasheet 3827521 TAMS Elektronik 70-03032 Loudspeaker Prefab component

User & Safety Instructions

User & Safety Instructions 3827521 TAMS Elektronik 70-03032 Loudspeaker Prefab component

Description

Features

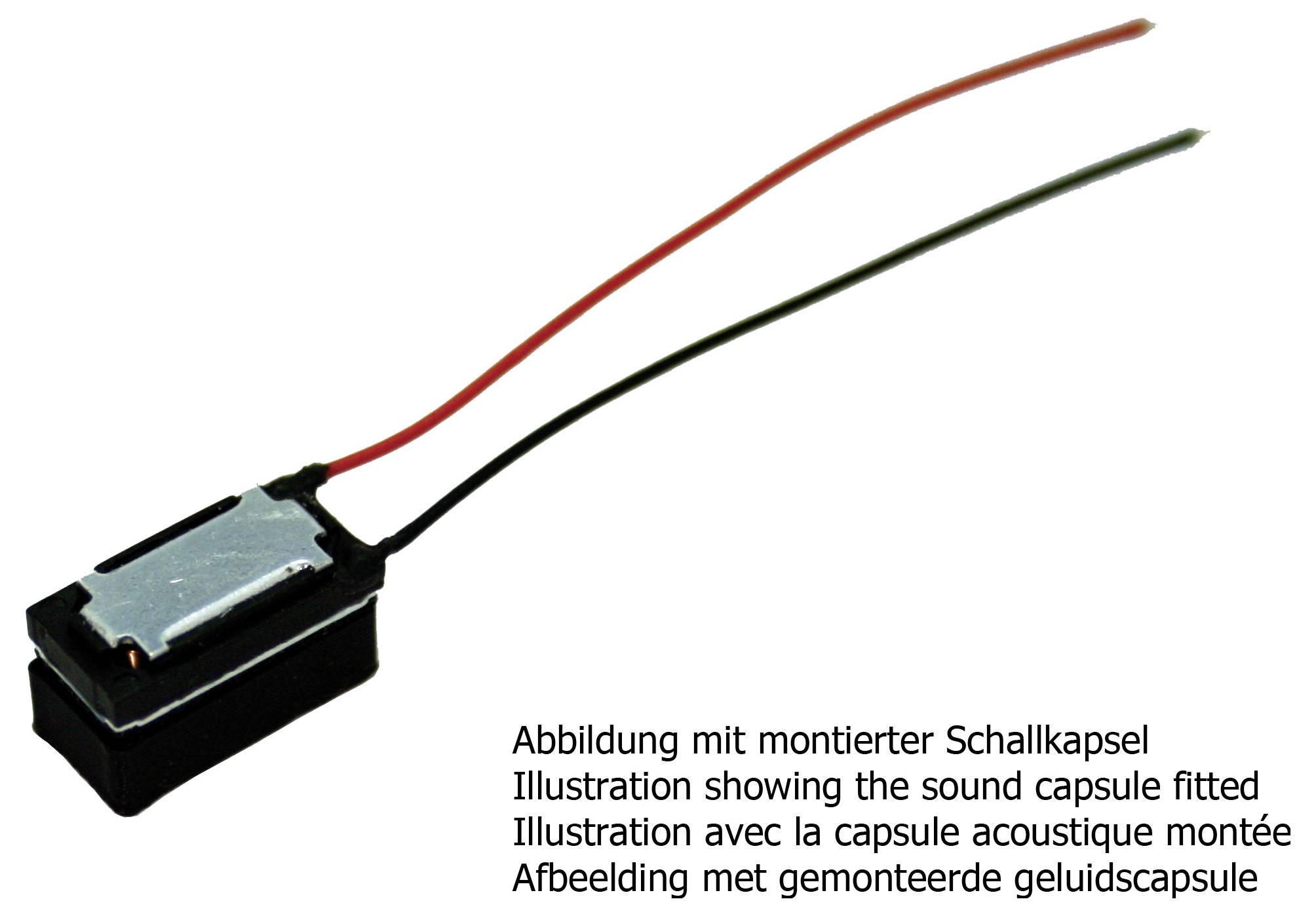

With front sided adhesive strips for attaching the sound capsule and stripped connection cables

Scope of delivery

1 loudspeakers
1 sound capsule
