TAMS Elektronik 70-03035 Loudspeaker Prefab component

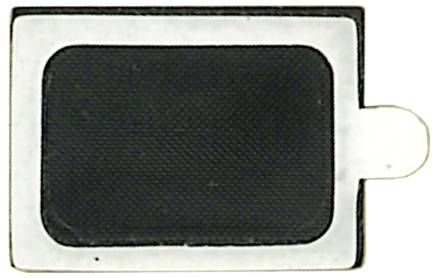

White rectangular electronic component with a large black center panel and a small side tab, resembling a battery or sensor module.

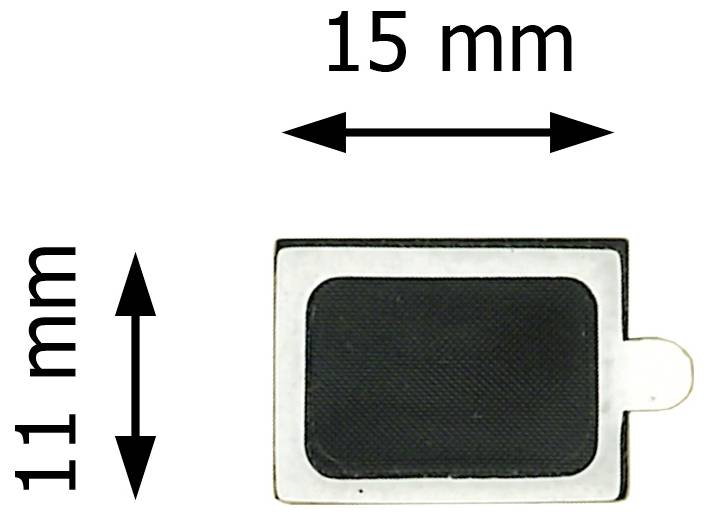

Rectangular black pad labeled 15 mm wide and 11 mm tall, shown with horizontal and vertical double-headed measurement arrows.<br>

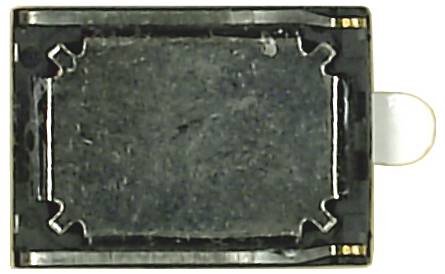

Black rectangular electronic component with a metal clip frame and a small looped tab on the right side.

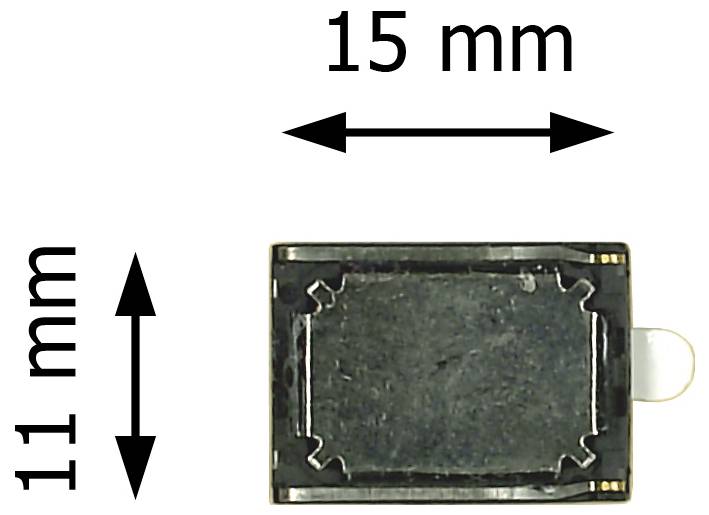

Diagram of a small rectangular component labeled 15 mm wide and 11 mm tall, shown with horizontal and vertical measurement arrows.<br>

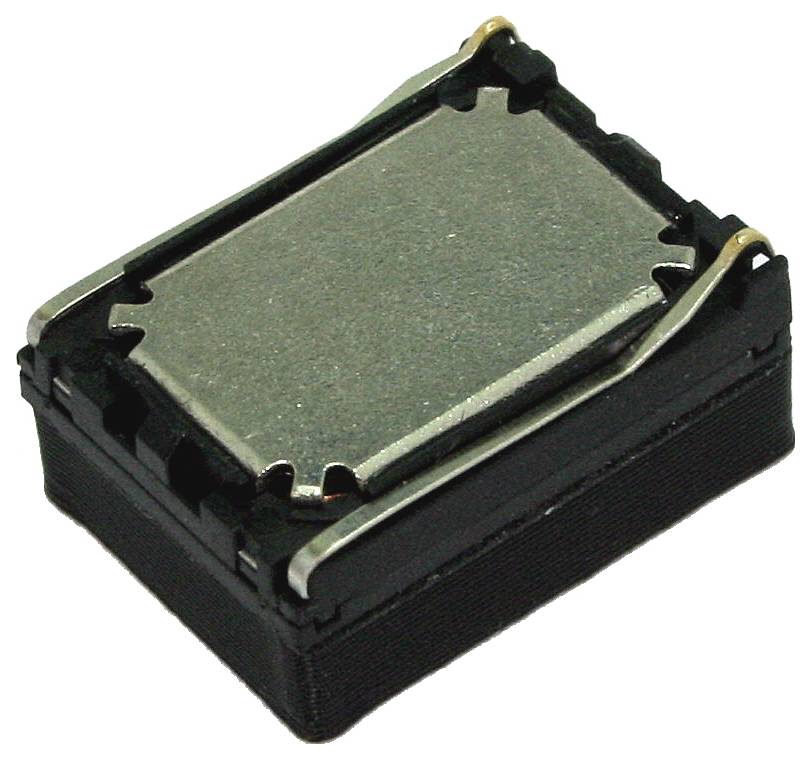

Small black electronic component with a metal top cover and spring clips, shown on a white background.

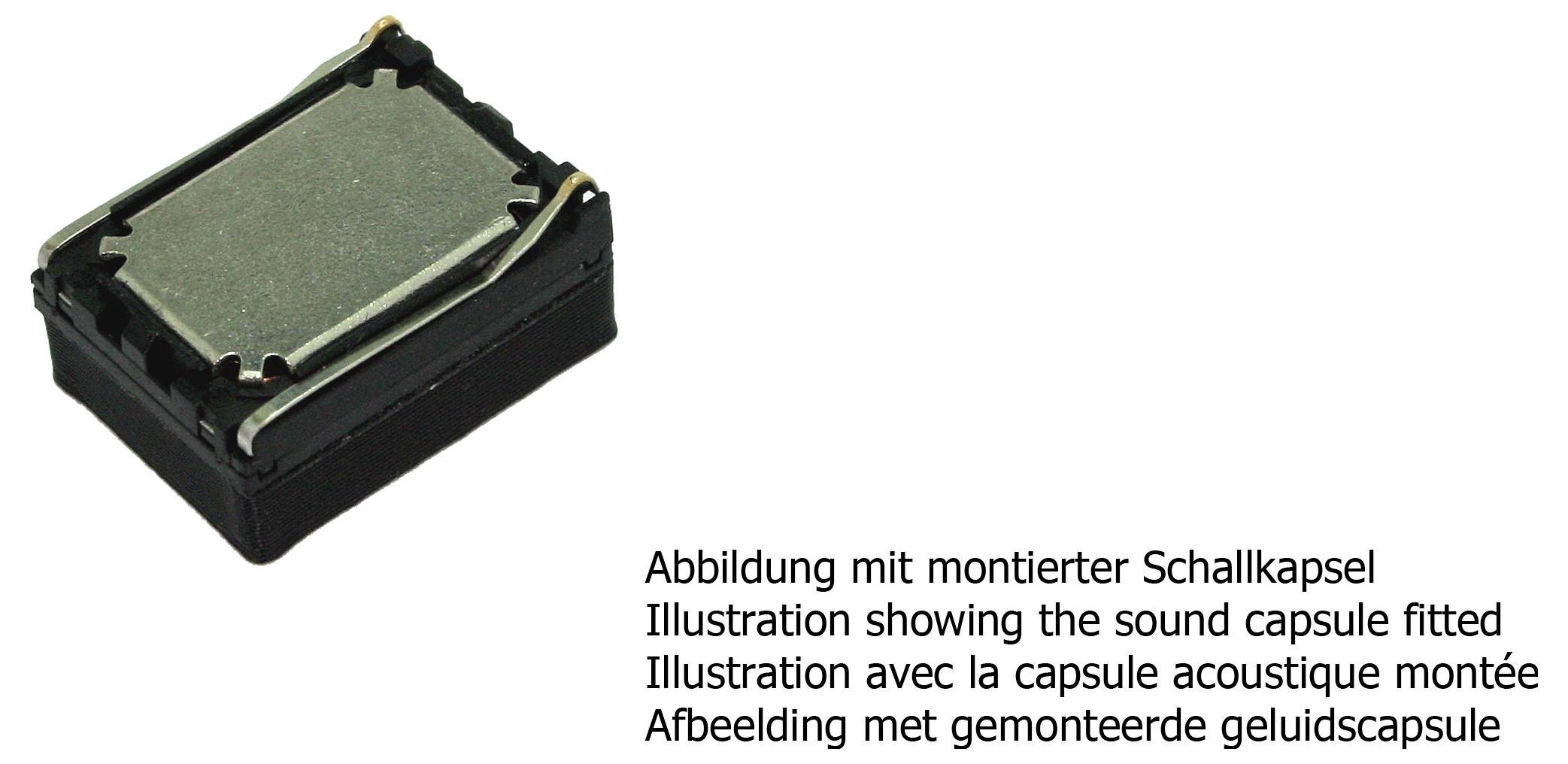

Black sound capsule mounted on a small rectangular device, shown in an illustration with multilingual caption text.
1/6
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Fri 6 Nov
15 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 7.99 / piece)
€ 7.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Speaker Mini 1511.2 with sound capsule

  • Small speakers, such as for connecting to a sound decoder
  • This text is machine translated.

Technical specifications

  • Dimensions net 15 x 11 x 3 mm (± 0.2 mm)
  • Dimensions with sound capsule: 15 x 11 x 6.5 mm (± 0.2 mm)
  • Nominal load 0.7 W
  • Maximum capacity 1.0 W
  • Nominal impedance 7.2 ohms (± 10%)
  • Transmission range (-10 dB) 450 - 20,000 Hz
  • Average sound pressure level (1 W/1 m): 81 ± 3 dB
  • Resonant frequency fs: 800 Hz (± 20%)
  • Weight net: 1.7 g
  • Weight with sound capsule: 2 g
  • PLA material (polylactid)
Product type

Loudspeaker

Type

Prefab component

Documents & Downloads

Datasheet

Datasheet 3827522 TAMS Elektronik 70-03035 Loudspeaker Prefab component

User & Safety Instructions

User & Safety Instructions 3827522 TAMS Elektronik 70-03035 Loudspeaker Prefab component

Description

Features

  • With front-sided adhesive strips for attaching the sound capsule

Scope of delivery

  • 1 loudspeakers
  • 1 sound capsule

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
