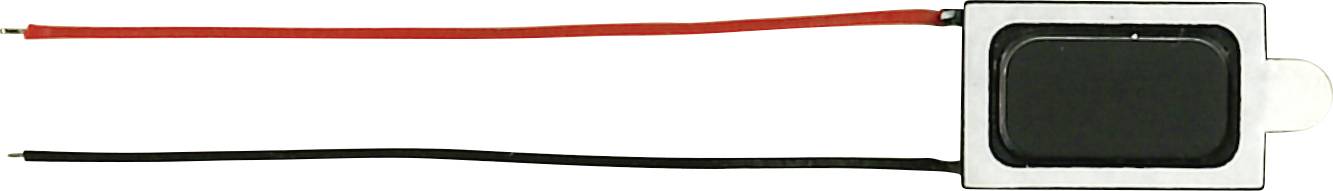

A small rectangular speaker or buzzer with red and black wires attached, shown on a white background.

A small rectangular speaker or buzzer with red and black wires attached, shown on a white background.

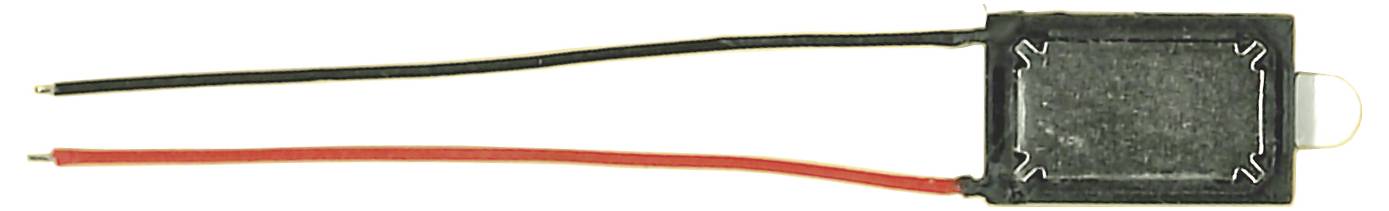

A small black rectangular electronic module with two long leads, one black and one red, extending from the left side.

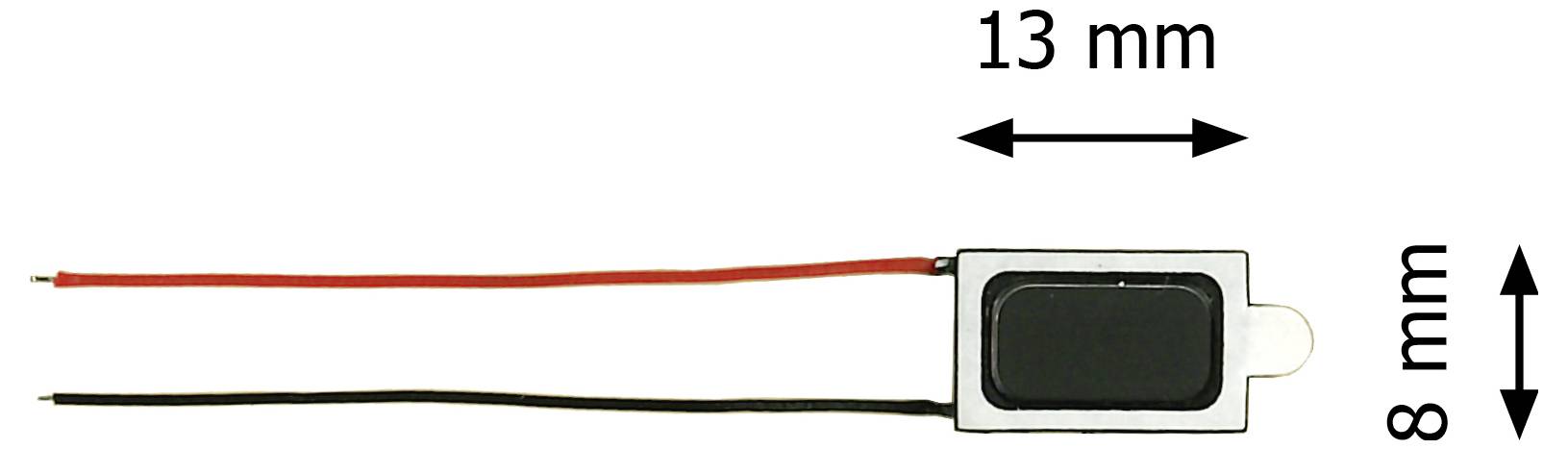

Small rectangular speaker with red and black wires; labeled 13 mm wide and 8 mm tall.

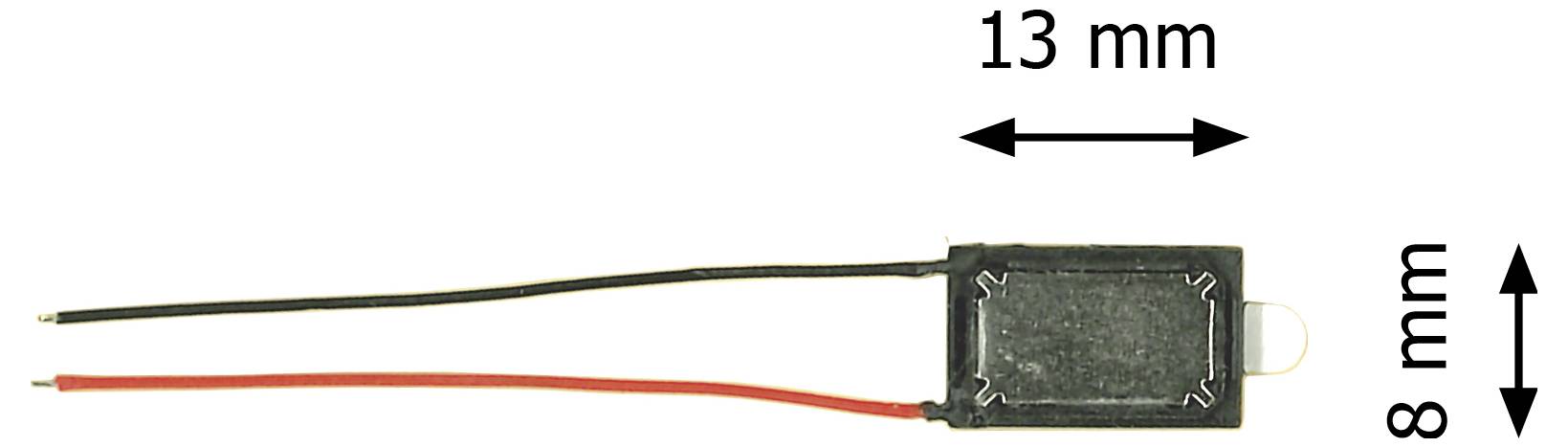

Small rectangular component with red and black wires; labeled dimensions show 13 mm wide and 8 mm tall.

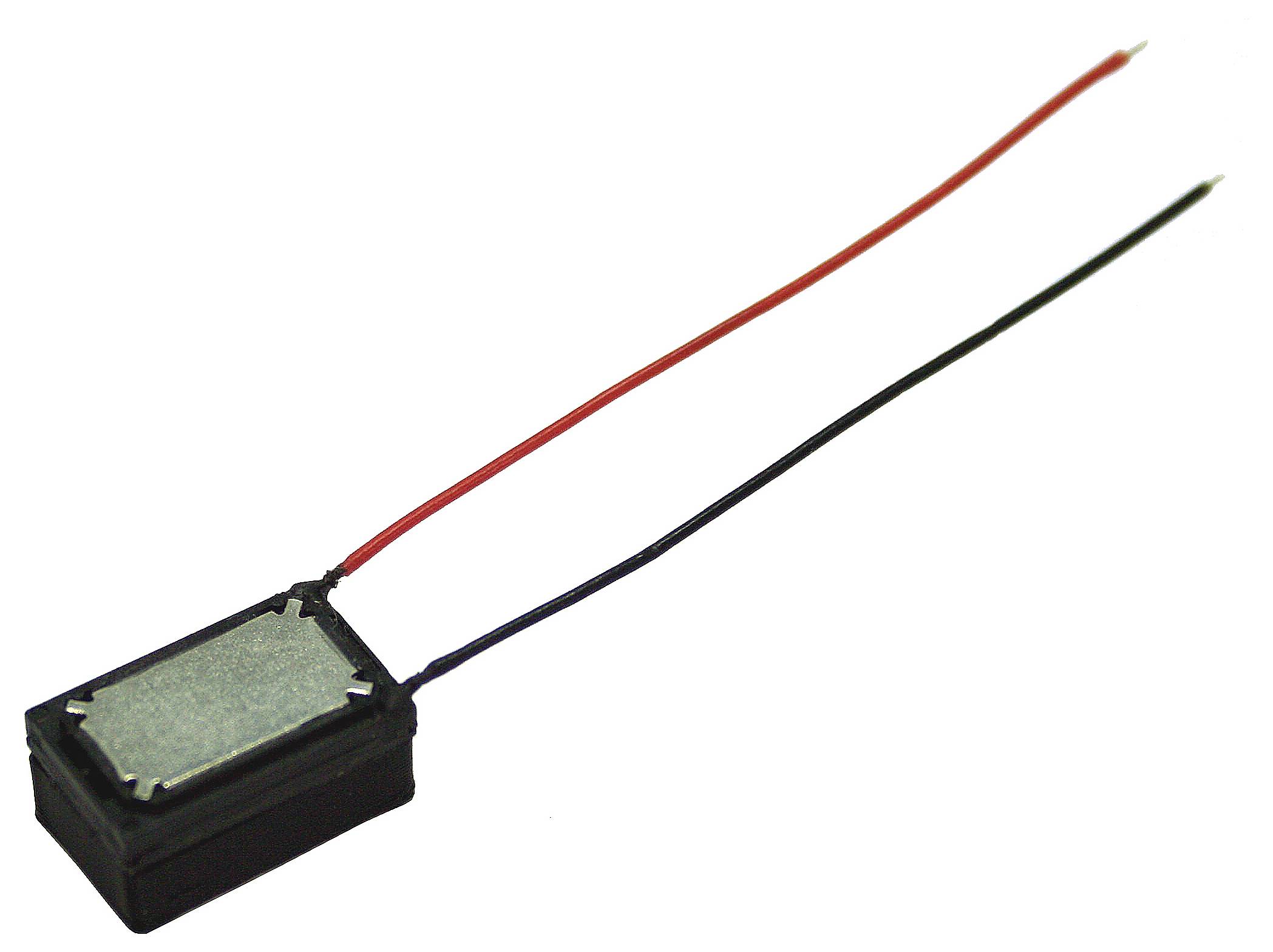

Small black electronic component with two attached wires, one red and one black, shown on a white background.

Illustration of a mounted sound capsule with red and black wires attached, labeled in multiple languages.

1/6

TAMS Elektronik

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 6.71 / piece)

€ 6.71

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Speaker Mini 1308 with sound capsule

Very small loudspeaker, e.g. for connection to sound decoder
This text is machine translated.

Technical specifications

Dimensions net 13 x 8 x 2.5 mm (± 0.2 mm)
Dimensions with sound capsule: 13 x 8 x 6.3 mm (± 0.2 mm)
Nominal load 0.7 W
Maximum capacity 1.0 W
Nominal impedance 6 ohms (± 20%)
Transmission range (-10 dB) 600 - 20,000 Hz
Average sound pressure level (1 W/1 m): 88 ± 3 dB
Resonant frequency fs: 850 Hz (± 20%)
Length of connection cable 40 mm
Weight net: 0.8 g
Weight with sound capsule: 1.0 g
PLA material (polylactid)

Product type: Loudspeaker

Type: Prefab component

Documents & Downloads

Datasheet

Datasheet 3827520 TAMS Elektronik 70-03033 Loudspeaker Prefab component

User & Safety Instructions

User & Safety Instructions 3827520 TAMS Elektronik 70-03033 Loudspeaker Prefab component

Description

Features

With front sided adhesive strips for attaching the sound capsule and stripped connection cables

Scope of delivery

1 loudspeakers
1 sound capsule
