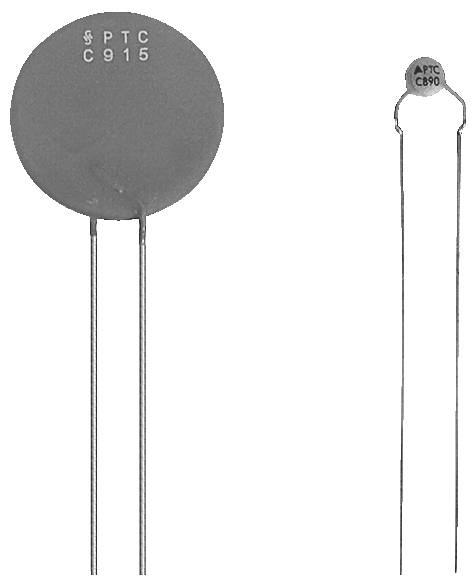

TDK PTC thermistor 13 Ω 1 pc(s)
Part number:
Item no:
Product type
PTC thermistor
Resistance
13 Ω
Tolerance ±
25 %
Content
1 pc(s)
Manufacturer part #
B59995C0120A070
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.75847
10
8% = € 0.06
€ 0.69741
25
11% = € 0.09
€ 0.67299
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.75847 / piece)
€ 0.76
plus VAT.
Highlights & Details
TDK electronics PTC-resistance 30V 120° 13R 0,7A
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series B599
- Delivery form: Loose
- Diameter, Resistance element 4 mm
- Diameter, connection wire 0.6 mm
- Resistance value 13 ohms
- Unit of resistance: Ohm
- Resistance value_1: 13
- Resistance tolerance: ±25 %
- Rated temperature 120°C.
- Max. OPERATING VOLTAGE (DC) 30 V DC
- Max. OPERATING VOLTAGE (AC) 30 V AC
- Nominal voltage: 24 V
- Max. permissible switching current at Umax 0.7 A
- Switching current: 240 mA
- Residual current at Umax 24 mA
- Approvals UL
- Product type
PTC thermistor
- Resistance
13 Ω
- Tolerance ±
25 %
- Manufacturer part #
B59995C0120A070
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
B59995C0120A070
Documents & Downloads
Datasheet
Datasheet 3523615 TDK PTC thermistor 13 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3523615 TDK PTC thermistor 13 Ω 1 pc(s)
Description
Ceramic PTC thermistors protect electrical consumers such as motors, transformers, etc., and electronic circuits (line card)
This text is machine translated.
This text is machine translated.
Features
- PTC resistor
- In contrast to plastic-based PTC's, the ceramic PTC thermistor reverts to its initial resistance value even after often cools down.
- They respond to impermissibly high currents and protect when predefined temperature limits are exceeded; the power loss absorbed by the entire circuit is limited by increasing the resistance and reducing the current to a harmless residual value.
- The PTC thermistor is not replaced, but performs its protection function immediately after a short cooling down time.
- Cold-conducting disc, sheathed
- Pinhole gap 5mm
