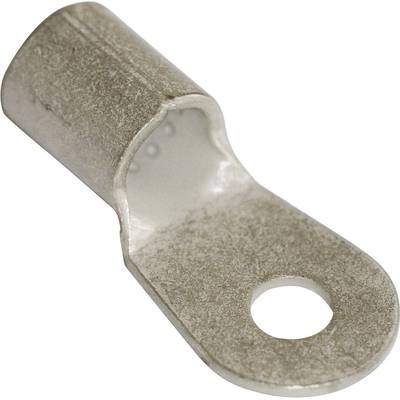

TE Connectivity 160075 Ring terminal Cross section (max.)=26.70 mm² Hole Ø=10.5 mm Not insulated Metal 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
2
-
€ 1.25
6
8% = € 0.10
€ 1.15
10
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 2
Total (€ 1.25 / piece)
€
Highlights & Details
TE Connectivity 160075 Ring terminal Cross section (max.)=26.70 mm² Hole Ø=10.5 mm Not insulated Metal 1 pc(s)
- Cross section (details): 16.8 - 26.7 mm
Technical specifications
- In accordance with MIL-T-10727
- Manufacturer part #
160075
- Type
SOLISTRAND
- AWG max.
4
- max. cross section
26.70 mm²
- Min. cross section
16.80 mm²
- Content
1 pc(s)
- Factory colour
Metal
- Dimensions
(L x E x C x W) (33.2 x 24.9 x 13.1 x 16.7) mm
- Cross-section range
16.80 - 26.70 mm²
- Insulation type
Not insulated
- Thread size
M10
- Material (details)
Copper tin-plated
- Hole Ø
10.5 mm
- Type
A
- Cross section
16.8 - 26.7 mm mm²
- Connection
-
- Contact material
Copper silver plated
- RoHS-compliant
Yes
- Support sleeve
No
- Product type
Ring terminal
Documents & Downloads
Datasheet
Datasheet 733112 TE Connectivity 160075 Ring terminal Cross section (max.)=26.70 mm² Hole Ø=10.5 mm Not insulated Metal 1 pc(s)
Information
Information 733112 TE Connectivity 160075 Ring terminal Cross section (max.)=26.70 mm² Hole Ø=10.5 mm Not insulated Metal 1 pc(s)
Description
Uninsulated AMP SOLISTRAND Ring cable lug Material copper in accordance with ASTM B-152, tin plated in accordance with MIL-T-10727.
