TE Connectivity 30S009 Bullet connector Plug, straight, Socket, straight Total number of pins: 3 1 Set
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Plug, straight
Socket, straight
Total no. of pins
3
Content
1 Set
Nominal current - rounded value
34 A
Datasheet (PDF)
13 Set(s) (Only while stocks last)
Sales and shipping:
Number
Total (€ 18.48 / piece)
€
Technical specifications
- Type
30S009
- Product type
Bullet connector
- Connector type
Plug, straight
Socket, straight
- Total no. of pins
3
- Factory colour
Grey
- Content
1 Set
- Max. temperature
+130 °C
- Nominal current
34 A
- Min. temperature
-40 °C
- Nominal current - rounded value
34 A
- Nominal voltage
230 V
- Contact material
Nickel plated
- Case material
Thermoplastic material
- Connection angle
180°
- Manufacturer part #
30S009
- Number of pins
3
- max. cross section
1.5 mm²
- Min. cross section
0.50 mm²
- Cross-section range
0.50 - 1.5 mm²
Documents & Downloads
Datasheet
Datasheet 1611060 TE Connectivity 30S009 Bullet connector Plug, straight, Socket, straight Total number of pins: 3 1 Set
User & Safety Instructions
User & Safety Instructions 1611060 TE Connectivity 30S009 Bullet connector Plug, straight, Socket, straight Total number of pins: 3 1 Set
Description

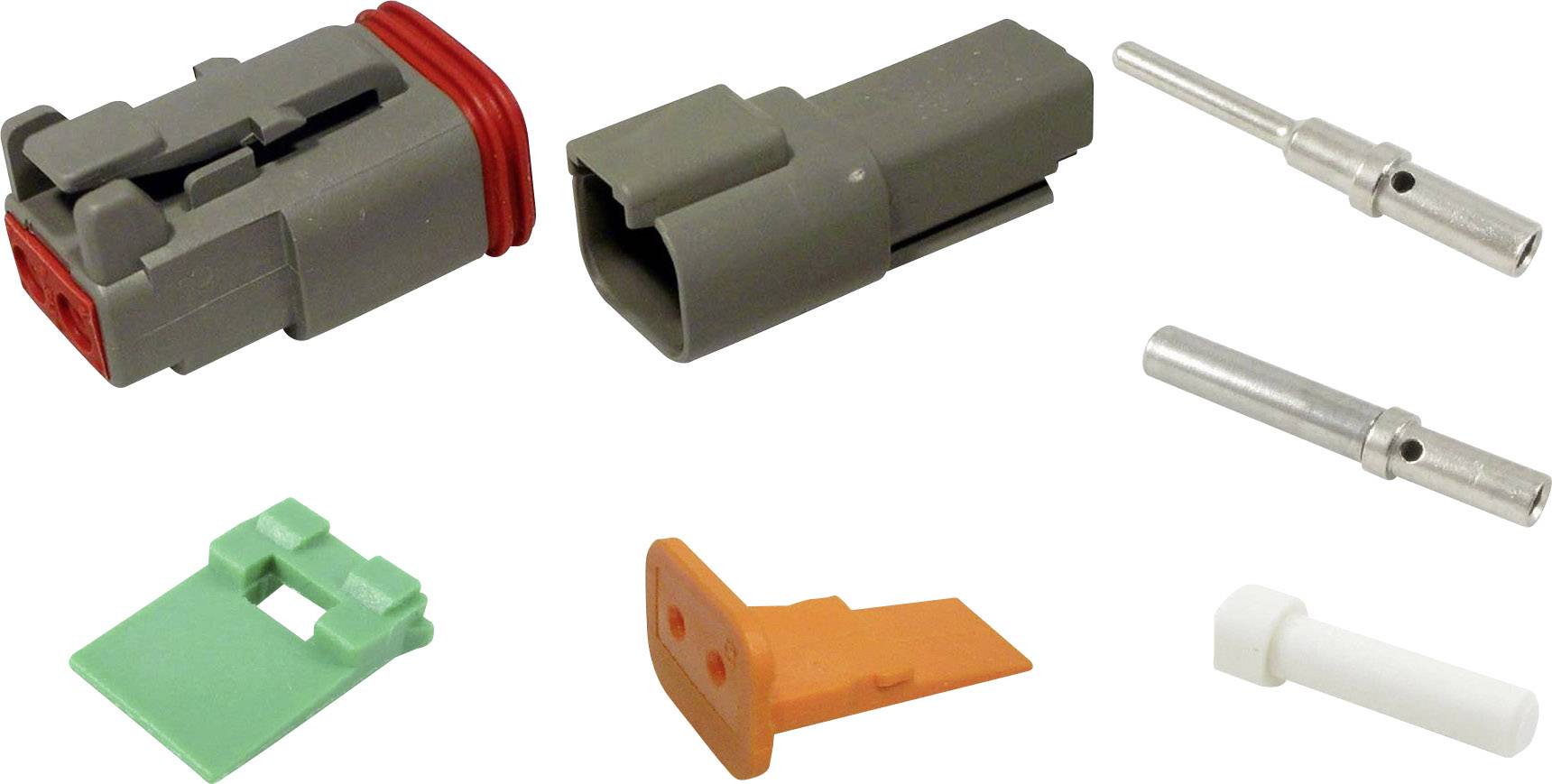

Scope of delivery
- 3 x pin case
- 3x socket housing
- 6 x fuse wedge
- 9 x pin contact
- 9x socket contact
- 6 x sealing plug
- This text is machine translated.
