TEAC PE-505-S Preamplifier
EAN:
Part number:
Item no:
Number
Total (€ 1,570.59 / piece)
€ 1,570.59
plus VAT.

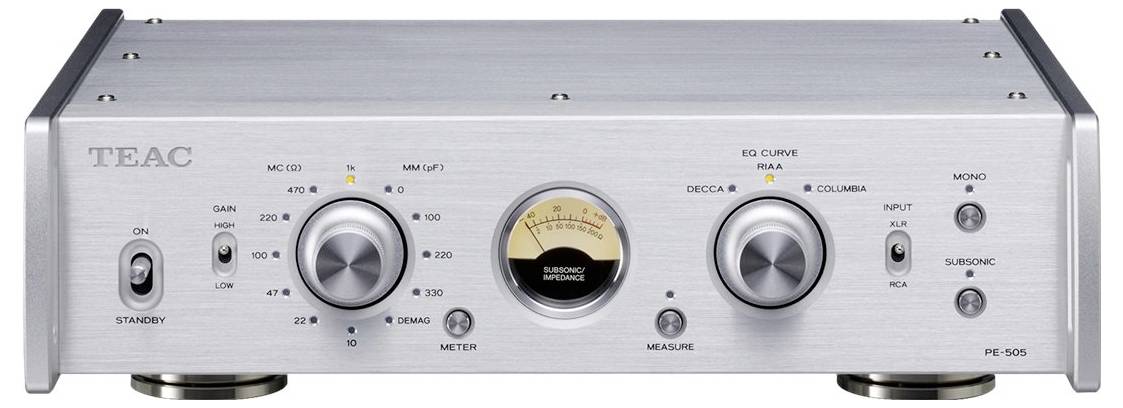

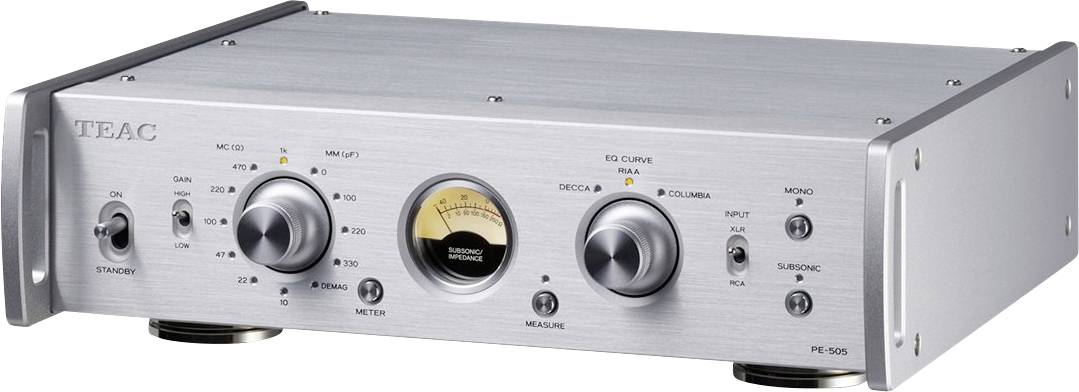

TEAC PE-505 phono pre-amp, silver
Highlights & Details
- Fully differential input/output circuits
- High-precision RIAA-EQ circuit achieves less than 0.05dB of deviation
- Individual EQ curves for monaural records and those with EQ from DECCA and COLUMBIA
- Symmetric MC input
- Switchable MC impedance (10, 22, 47, 100, 220, 470, 1kΩΩ)
- Switchable MM load impedance capacity (0, 100, 220, 330pF)
- MC-load-impedance measuring function
- Switchable MM/MC-amplification (high/low)
- Subsonic detection; impact sound filter (17Hz, -24dB/oct.)
- MONO function that mixes the left and right channels to a monaural channel DEMAG function, which demagnetizes the pickup
- Pin-Point-feet
- GND connection
- RoHS compliant
Technical specifications
- No. of inputs
2 x
- Interfaces
Phono in
- Weight
5.88 kg
- Factory colour
Silver
- UKCA
yes
- Product type
Preamplifier
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3735170 TEAC PE-505-S Preamplifier
Description
The PE-505 is a phono equalizer preamplifier with two monaural and fully symmetric input/output circuits that support a symmetric MC input. Equipped with equalizer options for two of the largest record labels: Decca and Columbia.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Power supply unit
- Pillows x3
- User manual
