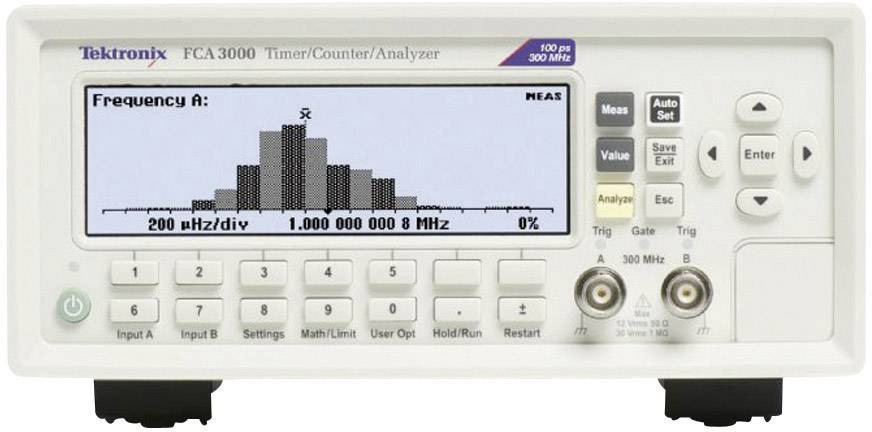

Tektronix FCA3000 Cycle counter 0.001 Hz - 300 MHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 5,399.00 / piece)
€ 5,399.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Frequency counter FCA3000 / 300MHz, 100ps
- Multi-Parameter Display
- Trend diagram Mode
- Measurement statistics mode
- Histogram mode
- Allen Variance
- Zero dead-time frequency / period measurements
Technical specifications
- Product type
Cycle counter
- Interfaces
GPIB
USB
Manufacturer's standards (no certificate)
- Weight
3.5 kg
- Display type
LCD display
- Max. frequency
300 MHz
- Min. frequency
0.001 Hz
- Frequency range
0.001 Hz - 300 MHz
- Functions
Frequency
Cycle length
Time interval
Pulse width
Slew rate
Phase angle
Duty cycle
Min/max voltage
Peak voltage
- Power supply (LOV)
mains-powered
Documents & Downloads
Datasheet
Datasheet 123117 Tektronix FCA3000 Cycle counter 0.001 Hz - 300 MHz
User & Safety Instructions
User & Safety Instructions 123117 Tektronix FCA3000 Cycle counter 0.001 Hz - 300 MHz
Description
Features
- Automatic measurement of frequency, period, ratio, time interval, pulse width, rise time, phase angle, duty cycle, min/max-voltage, peak voltage
- Multi-parameter display
- Trend Plot mode
- Measurement statistics mode
- Histogram Mode.
