Tektronix TCA-1MEG Buffer amplifier 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3,777.31 / piece)
€ 3,777.31
plus VAT.
Technical specifications
- Product type
Buffer amplifier
- Compatible with
Tektronix
- Type
TCA-1MEG
Documents & Downloads
Datasheet
Datasheet 3190843 Tektronix TCA-1MEG Buffer amplifier 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3190843 Tektronix TCA-1MEG Buffer amplifier 1 pc(s)
Description
The high-impedance buffer amplifier system TCA-1MEG extends the possibilities of the high-performance oscilloscopes of Tektronix and makes them Ideal for a number of multi-purpose measurements. The TCA 1MEG amplifier system offers a 1 MΩ path that is easily removed and replaced by a wide range of TekConnect probes, amplifiers and adapters.
This text is machine translated.
This text is machine translated.
Features
- Bandwidth DC to ≥500 MHz
- 1 MΩ / 10 pF input impedance
- Bandwidth limit: Full/100 MHz/20 MHz
- Input coupling: DC/AC/GND

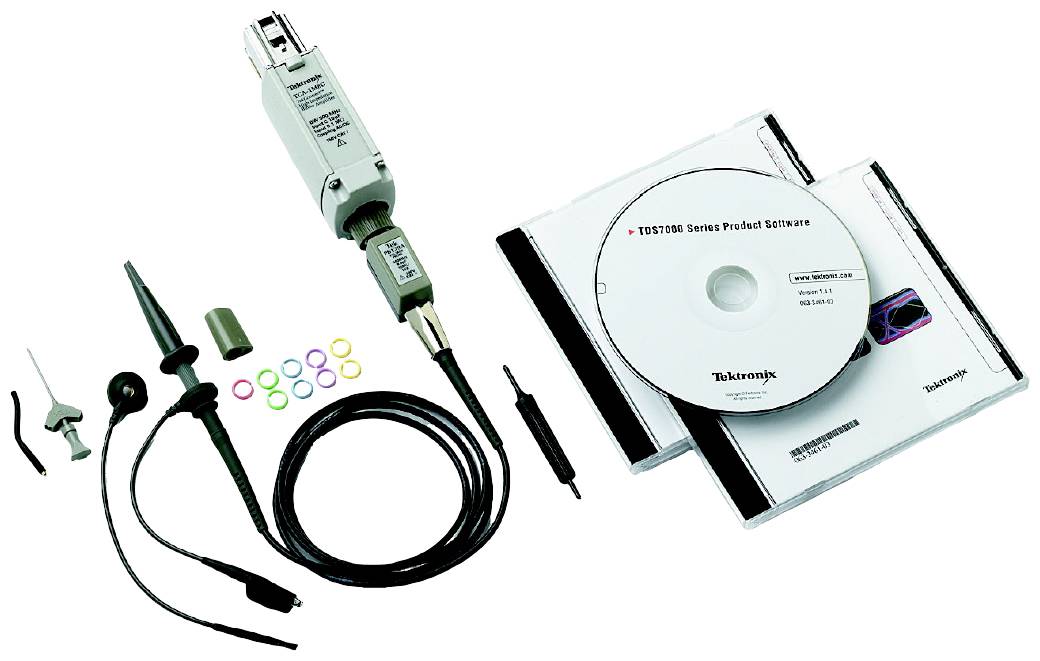

- Including P6139A, 500 MHz, 10x passive probe
- The TekConnect interface offers superior signal fidelity, unparalleled versatility and ease of use
