Teledyne LeCroy DCS025 DCS025 Expansion module 1 pc(s)
EAN:
Part number:
Item no:
Sales and shipping:
Number
Total (€ 1,457.98 / piece)
€
Highlights & Details

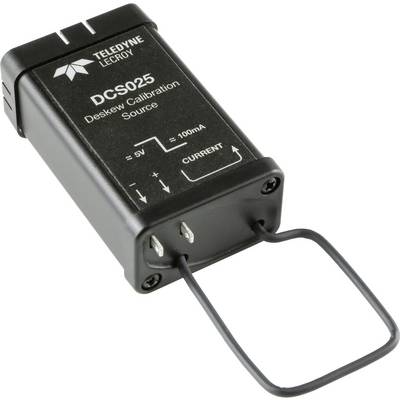

Calibration Source DCS 025
- 10 ns signal drop-off time
- Only 1 ns static offset
- 5 V and 100 mA time-oriented output signals
- Loop size compatible with 30, 150 and 500A current clamp
- Compatible with standard and highly sensitive current clamp
Technical specifications
- Signal drop-off time: 10 ns
- Arbteitstemperatur: 0 to 50°C.
- Product type
Expansion module
- Compatible with
Teledyne LeCroy
- Weight
119 g
- Compatible with
Teledyne LeCroy WaveSurfer 510
Teledyne LeCroy HDO8000
Teledyne LeCroy HDO4000
Teledyne LeCroy HDO6000
- Width
46 mm
- Height
24 mm
- Depth
108 mm
- Type
DCS025
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1846106 Teledyne LeCroy DCS025 DCS025 Expansion module 1 pc(s)
Description
The Deskew-Kalibrierquelle DCS 025 produces a time-oriented voltage and current pulses for the precise straight run of voltage and current test heads. This is decisive for measurements, in which a small delay times.
This text is machine translated.
This text is machine translated.
Hints
Can only be used with oscilloscopes from teledyne LeCroy (Firmware 8.4.1.4)
