Teledyne LeCroy HVD3102A-NOACC HVD3102A-NOACC Probe 1 pc(s)
EAN:
Part number:
Item no:
Sales and shipping:
Number
Total (€ 2,995.80 / piece)
€
Highlights & Details

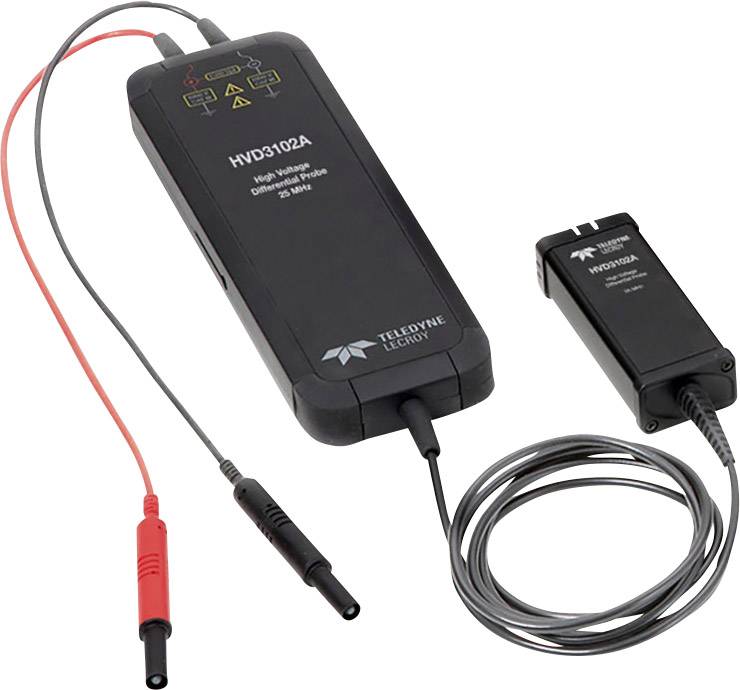

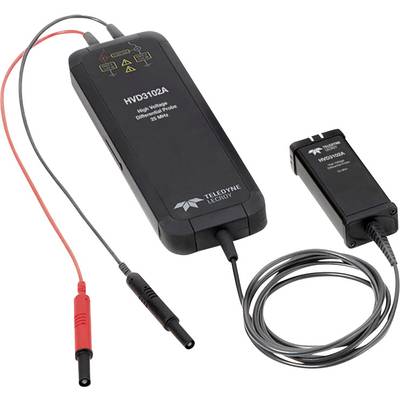

Differential probe HVD3102A-NOACC
- 1%, Accuracy:
- High offset capability at high and low attenuation
- AC and DC coupling
- ProBus active probe interface with automatic scaling
Technical specifications
- Bandwidth: 25 MHz
- Max. Safe input voltage: 1000 Vrms CAT III
- Rise rate: 100 V/ns (maximum)
- Damping: 100x / 1000x
- Input impedance: 10 MΩ : 2.5 pF (between inputs), 5 MΩ : 5.0 pF (either input to ground).
- Product type
Probe
- Compatible with
Teledyne LeCroy
- Reading category
CAT III
- Compatible with
Teledyne LeCroy WaveSurfer 3000
Teledyne LeCroy HDO4000
Teledyne LeCroy HDO6000
Teledyne LeCroy HDO8000
- Type
HVD3102A-NOACC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1845824 Teledyne LeCroy HVD3102A-NOACC HVD3102A-NOACC Probe 1 pc(s)
Description
The high-voltage differential probes of the series HVD3000A offers a high CMRR over a wide frequency range, in order to simplify the measuring tasks. The design of the probe is easy to use and enables a safe, precise measurement.
