Name: Teledyne LeCroy T3VNA1500 Spectrum analyzer Tracking generator, Spectrum analyzer
Brand: Teledyne LeCroy
SKU: 2267556
Availability: BackOrder

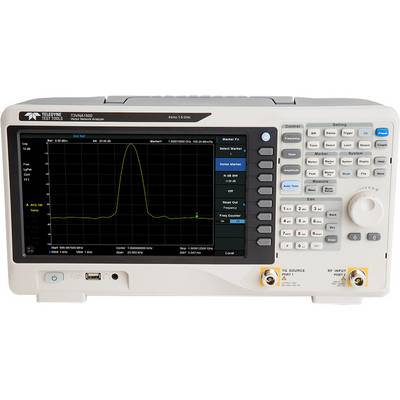

A spectrum analyser with a screen displaying a frequency range with a distinct peak. Buttons and connections are visible.

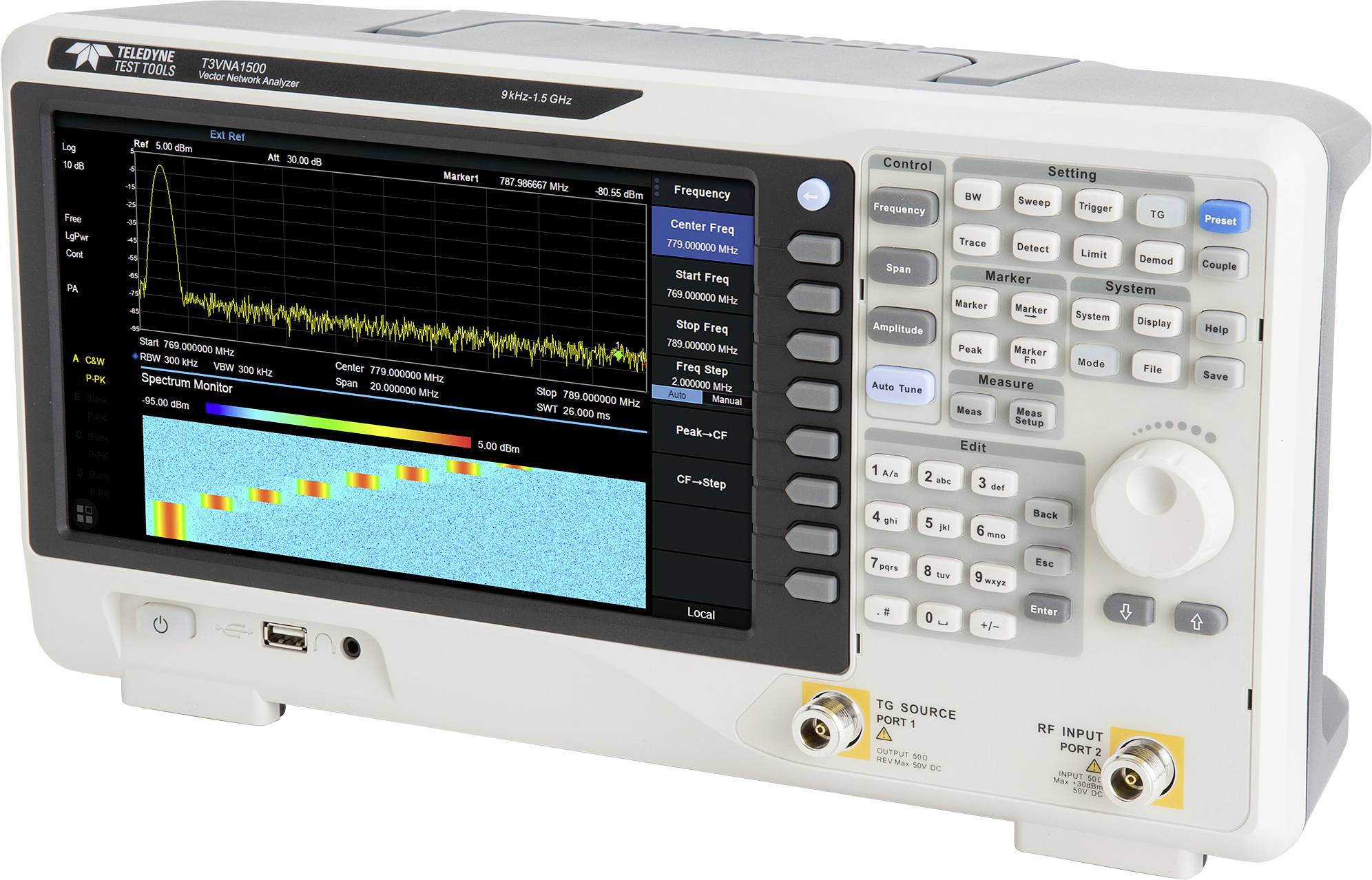

A spectrum analyser with a colour display shows frequency distribution and signal strength. Buttons and controls are positioned on the right.

1/2

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 9,859.00 / piece)

€ 9,859.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Spectrum analyzer T3VNA1500

Total amplitude accuracy< 0. 7 dB
1 Hz minimum resolution bandwidth (RBW)
Fully digital ZF technology

Technical specifications

Vector network analyzer frequency range: 10 MHz - 1.5 GHz
spectrum analyzer frequency range: 9 kHz - 1.5 GHz
resolution bandwidth: 1 Hz - 1 MHz
average noise: -156 dBm/Hz
phase noise:< -98 dBc/Hz
total amplitude accuracy:< 1.2 dB
tracking generator: 5 MHz - 1.5 GHz
modulation analysis: AM, FM, ASK, FSK, MSK, PSK, QAM
EXTENDED MEASUREMENTS: CHP, ACPR, OBW, CNR, HARMONIC, TOI, MONITOR

Product type: Spectrum analyzer

Dim: (W x H) 393 mm x 207 mm

Weight: 4.30 kg

Oscilloscope features: Tracking generator
Spectrum analyzer

Width: 393 mm

Height: 207 mm

Interfaces: LAN
USB

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2267556 Teledyne LeCroy T3VNA1500 Spectrum analyzer Tracking generator, Spectrum analyzer

Description

The Teledyne Test Tools derT3VNA family of vectorial network analyzers consists of models with different vector network analysis frequency ranges from 100kHz to 3.2GHz and spectrum analysis frequency ranges from 9kHz to 3.2GHz depending on the model. The small footprint and simple user interface are complemented by a high performance specification with many advanced measurement functions and capabilities.
