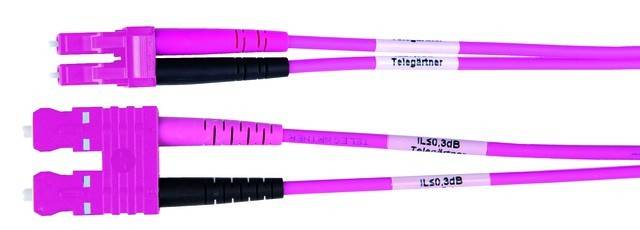

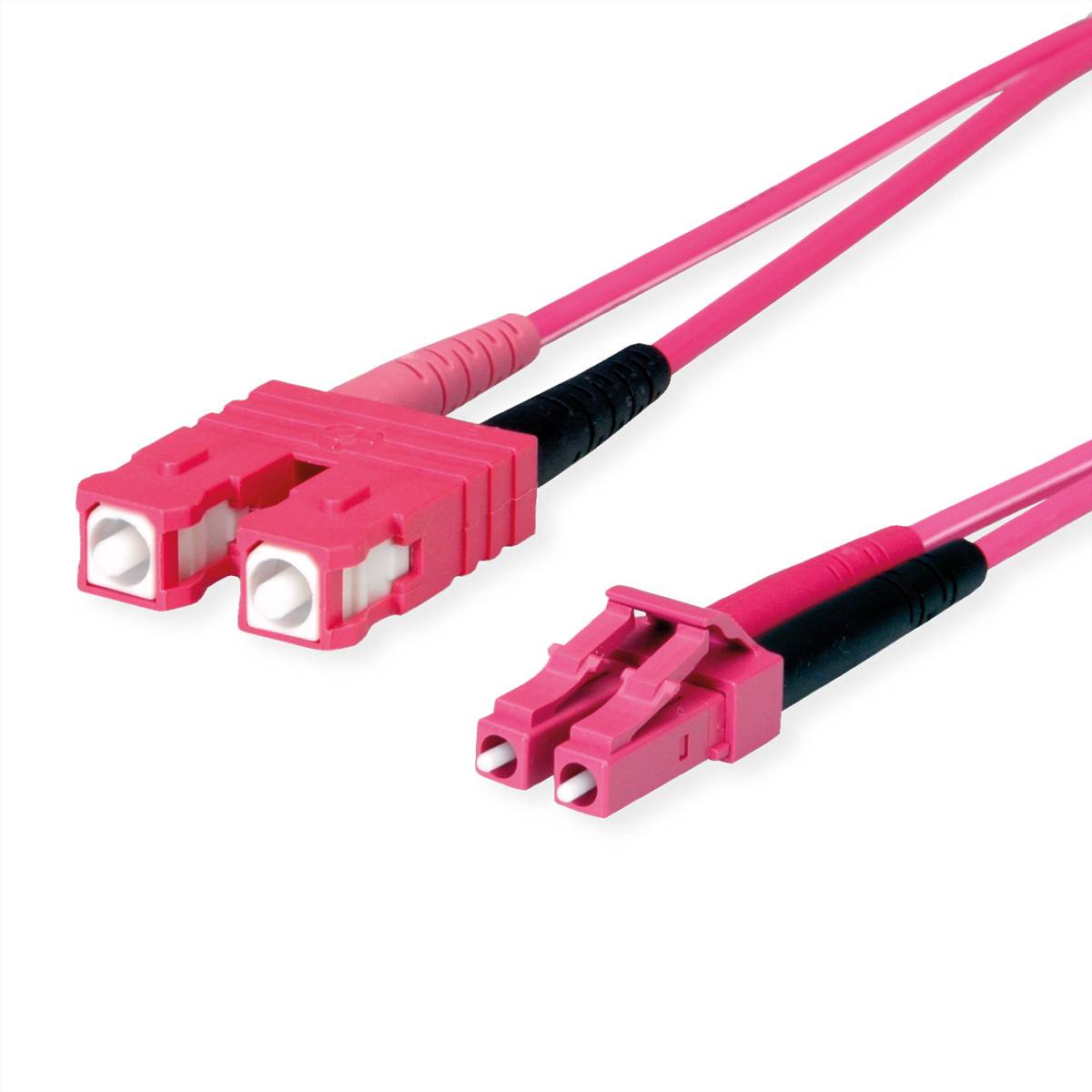

Telegärtner 100012280 Fibreglass FO Cable 3.00 m Violet Multimode OM4
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- SC plug to LC plug
- Duplex-Cable
- Factory colour: Violet
Technical specifications
- Product group: Network passive components
- Product type: Fibre optic patch cable OM4
- Colour : violet
- Length: 3 m
- Cable type: Duplex cable
- Fibre cross-section: Multimode 50/125µm OM4
- SC/LC connections
- Page 1 Port Type: SC
- Page 2 Type of connection: LC
- Bending radius 25 mm
- Cable LSOH: Yes
- Flame-resistant according to IEC 60332-1-2: Yes
- Halogen free according to EN IEC 60754-2: Yes
- Max. Insertion loss < 0.25 dB
- Min Return loss 30 dB
- Min. Operating temperature -5 °C
- Max. operating temperature: 55 °C
- Weight: 43.27 g
- Packaging height 40 mm
- Package width 170 mm
- Packaging depth 230 mm
- Package weight: 0,056 kg
- Gross weight: 0.056
- Product type
FO Cable
- Connection type
Fibreglass
- Type A
SC plug
- Type B
LC plug
Multimode OM4
Duplex
- Cable length
3.00 m
- Factory colour
Violet
- Content
1 pc(s)
- Connector version
straight
FO
- Cable use
FO
- Version
Cable
Optical fiber
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3798437 Telegärtner 100012280 Fibreglass FO Cable 3.00 m Violet Multimode OM4
User & Safety Instructions
User & Safety Instructions 3798437 Telegärtner 100012280 Fibreglass FO Cable 3.00 m Violet Multimode OM4
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
Features
- Telegärtner patch cable - 3 m - violet
- Type : Patch cable - OM4
- Technology : Duplex fiber
- Fiber Type : Multi mode
- Features : Halogen-free, flame resistant
- Length: 3 m
- Kern/sheath diameter : 50/125 micrometers
- Connection : 2 x LC Multi-Mode - Male
- Plug (second end) : 2 x SC multi-mode male
- Colour : Violet
Scope of delivery
- Telegärtner fiber optic adapter cable 2x G50/125 OM4
