Name: Telegärtner 100017240 Cable connection M12 x 1 Plug 2 m No. of pins (RJ): 8 1 pc(s) Piece
Brand: Telegärtner
SKU: 3737176
Availability: InStock

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

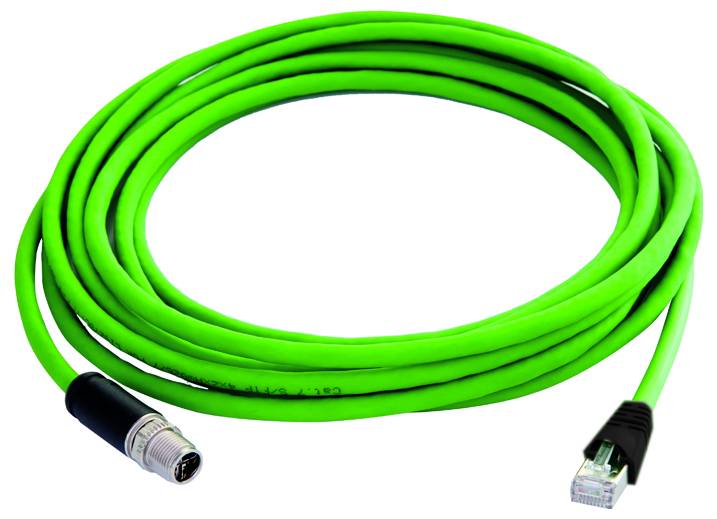

Bright green coiled Ethernet cable with a metal connector on one end and RJ45 plug on the other.

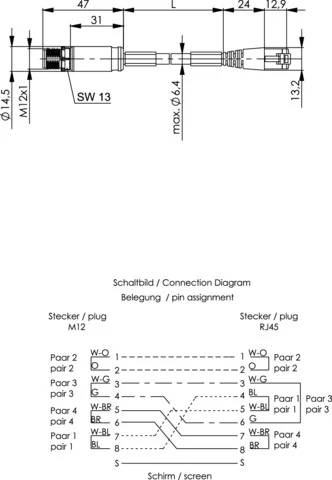

Technical drawing of an M12-to-RJ45 cable with dimensions and a pin assignment connection diagram linking plug pins 1–8 between both ends.

1/2

Image similar

Product type

Cable connection

Connector type

Plug

Connector standard

RJ45

Connection side A

M12

Connection side B

RJ45 plug

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 89.99 / piece)

€ 89.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Type: 100017240

Product type: Cable connection

Connector type: Plug

Connector standard: RJ45

Connection side A: M12

Connection side B: RJ45 plug

No. of pins: 8

Cable length: 2 m

Connection: Plug

Factory colour: Green

Thread type connection side: M12 x 1

Thread type (wiring and installation): M12 x 1

Coding: X

: IP67

Features: X-coded

Manufacturer part #: 100017240

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3737176 Telegärtner 100017240 Cable connection M12 x 1 Plug 2 m No. of pins (RJ): 8 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3737176 Telegärtner 100017240 Cable connection M12 x 1 Plug 2 m No. of pins (RJ): 8 1 pc(s) Piece

Description

The M12x1 connector series can be used to implement applications such as safety and video surveillance (CCTV), passenger information systems (PIS), production facilities and production monitoring with high-resolution cameras. Users can connect X-ray machines for baggage checking at airports encapsulated and tamper-proof at the very fast interface with the M12 round connector. The M12 is also a real asset in rail vehicles: The increasing amount of data can be distributed reliably and transferred to all systems and devices connected in the train, such as cameras or switches. As a 8-pin, X-coded, compact connector in CAT.6A (ISO/IEC), the M12 can transfer data rates up to 10 Gbit/s from Telegärtner.

Specifications:
X-coding according to connector standard IEC 61076-2-109,
RJ45 according to plug connector standard IEC 60603-7-51,
10 Gigabit Ethernet according to IEEE 802.3an,
Suitable for 4PPoE according to IEEE 802.3bt,
CAT.6A (ISO/IEC) according to ISO/IEC 11801; DIN EN 50173-1,
UL listed
Protection class IP67 | IP20

Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Version: Page 1: M12x1 Cable plug X-coded, IP67; Page 2: RJ45 Cable plug IP20
Name: STX M12x1-RJ45 VL X-cod. CAT.6A (ISO/IEC)
Colour: Sleeve: Black; sheath: Green
SHORT NAME: CP01CP05B-SFTP2607C7-1PUR-A0200
Length: 2 m
