Name: Telegärtner 100017430 Cable connection M12 x 1 Plug 10 m No. of pins (RJ): 4 1 pc(s)
Brand: Telegärtner
SKU: 3737222
Availability: InStock

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

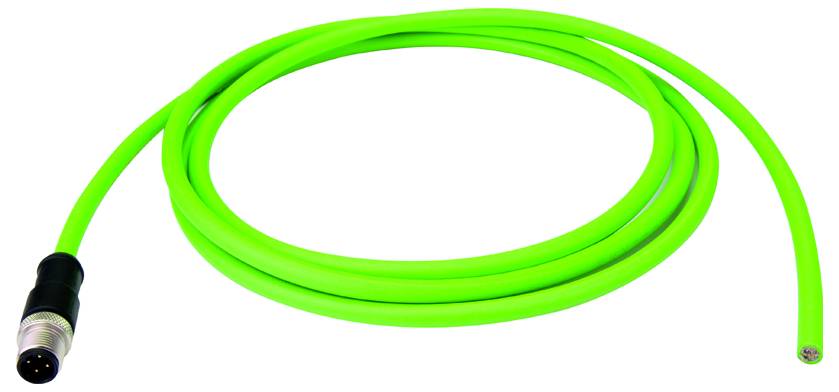

Bright green coiled cable with black circular connector plug on one end and a cut end on the other, shown on a white background.

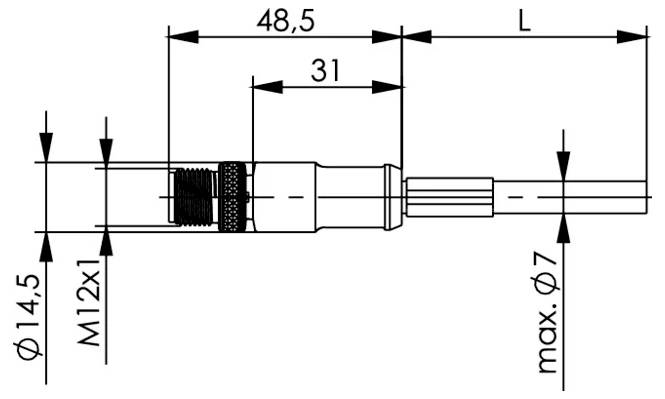

Technical dimension drawing of a threaded cylindrical shaft connector, showing measured lengths 48.5 and 31, M12x1 thread, Ø14.5 body, and max Ø7 shaft.

1/2

Image similar

Product type

Cable connection

Connector type

Plug

Connector standard

Profinet

Connection side A

M12

Connection side B

Cable, open end

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 83.99 / piece)

€ 83.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Type: 100017430

Product type: Cable connection

Connector type: Plug

Connector standard: Profinet

Connection side A: M12

Connection side B: Cable, open end

No. of pins: 4

Cable length: 10 m

Jacket material: PUR

Connection: Open cable ends

Factory colour: Green

Thread type connection side: M12 x 1

Thread type (wiring and installation): M12 x 1

Coding: D

: IP67

Features: D-coded

Manufacturer part #: 100017430

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3737222 Telegärtner 100017430 Cable connection M12 x 1 Plug 10 m No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3737222 Telegärtner 100017430 Cable connection M12 x 1 Plug 10 m No. of pins (RJ): 4 1 pc(s)

Description

The M12x1 connector series can be used to implement applications such as safety and video surveillance (CCTV), passenger information systems (PIS), production facilities and production monitoring with high-resolution cameras. Users can connect X-ray machines for baggage checking at airports encapsulated and tamper-proof at the very fast interface with the M12 round connector. The M12 is also a real asset in rail vehicles: The increasing amount of data can be distributed reliably and transferred to all systems and devices connected in the train, such as cameras or switches. As a 4-pin, D-coded compact connector in CAT.5, the M12 from Telegärtner can transfer data rates up to 100 Mbit/s in the PROFINET environment.

Specifications:
D-coding according to plug connector standard IEC 61076-2-101,
Fast-Ethernet according to IEEE 802.3,
Suitable for 4PPoE according to IEEE 802.3bt,
CAT.5 according to ISO/IEC 11801; DIN EN 50173-1,
IP67protection class

Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Version: Page 1: M12x1 cable connector, IP67; Page 2: Open cable end
Designation: STX M12x1 VL D-cod. CAT 5
Colour: Sleeve: Black; sheath: Green
SHORT NAME: CP02FC00BSFP2207C5-1PUR-A1000
Length: 10 m
