Buy Telegärtner 100023621 100023621 Attenuator 1 pc(s)

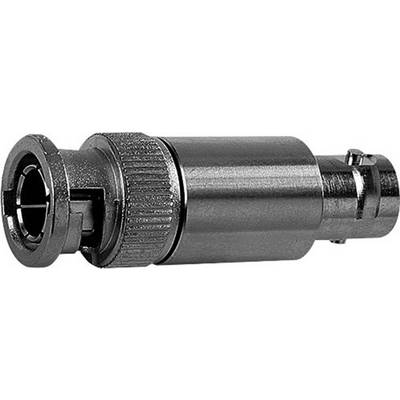

Metal BNC plug with knurled screw and bayonet lock, for coaxial cable connections in electronic devices.

Image similar

Side view of a technical drawing of a cylindrical component with overall length dimensions of 45.9 and diameters of 14.6 and 9.7.

1/2

Image similar

Product type

Attenuator

Content

1 pc(s)

Impedance

50 Ω

Manufacturer part #

100023621

Type

100023621

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Minimum order quantity: 2

Multiple: 2

Total (€ 73.94 / piece)

€ 147.88

plus VAT.

Report legal concerns

Highlights & Details

BNC-Attenuator/Terminator 20 dB

Our service for you

Technical specifications

Product type: Attenuator

Content: 1 pc(s)

Impedance: 50 Ω

Manufacturer part #: 100023621

Type: 100023621

Documents & Downloads

Datasheet

Datasheet 1365955 Telegärtner 100023621 100023621 Attenuator 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1365955 Telegärtner 100023621 100023621 Attenuator 1 pc(s)

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
