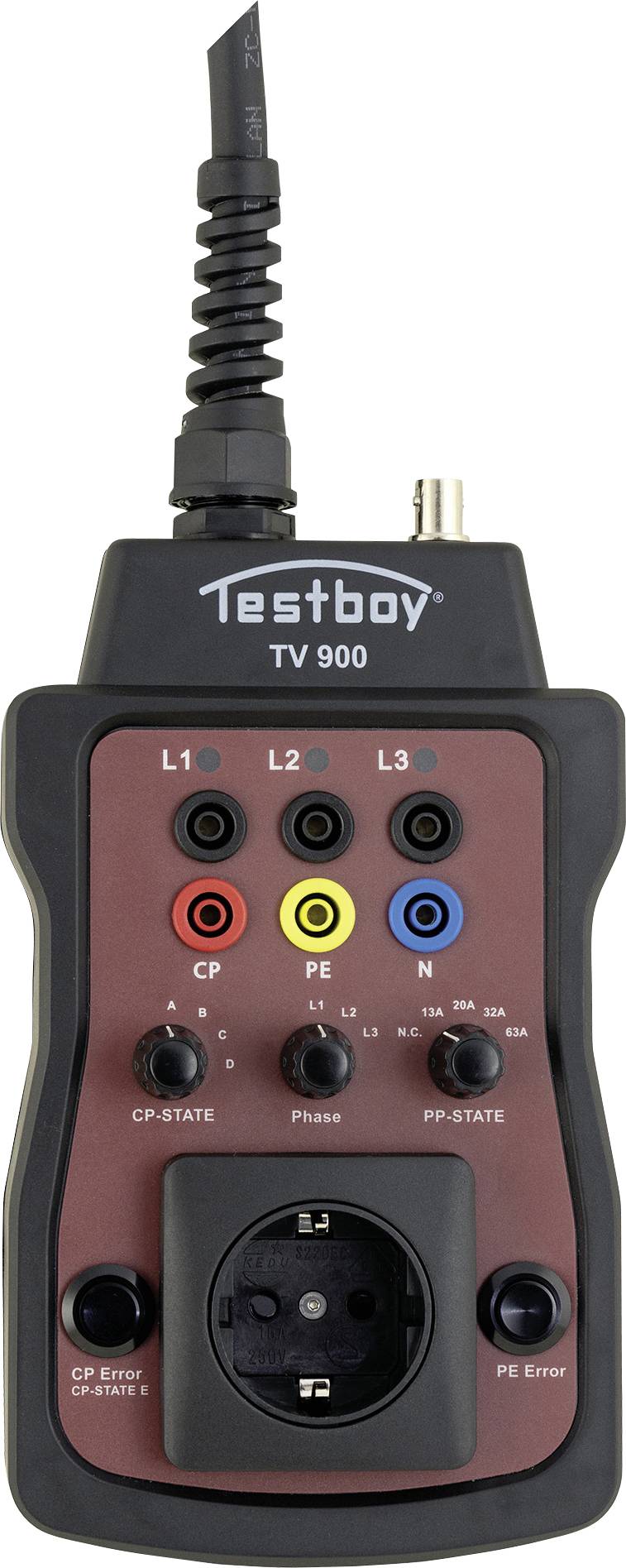

Testboy TV900 Test adapter 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 533.61 / piece)
€ 533.61
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Simulation of CP communication (CP state A,B,C,D)
- Simulation of PP communication (simulation of the connected charging cable 13A, 20A, 32A, 63A)
- LED display of the connected phases
- Error simulation (CP state E and PE error)
- Phases can be switched to a Schuko socket
- 4mm railway sockets for connecting a VDE0100 tester or multimeter
- BNC connection for connecting an oscilloscope for checking the CP signal
- Product type
Test adapter
- Compatible with
Testboy
- Weight
1050 g
- Width
120 mm
- Height
60 mm
- Length
215 mm
- Type
TV900
Documents & Downloads
Datasheet
Datasheet 2368589 Testboy TV900 Test adapter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2368589 Testboy TV900 Test adapter 1 pc(s)
Description
More and more charging columns for electric cars are being installed throughout Europe. Testboy developed the measuring adapter TV 900, in order to be able to test the type 2 charging columns standardized in Europe. The TV 900 takes over and simulates the communication with the charging column and an electric vehicle. An installation tester or a multimeter can be connected via the 4mm banana socket. Thus, testing with a VDE 0100 tester, such as the Testboy TV 455, is possible. The built-in LED indicates whether and how many phases are present. One of the three phases can be switched to the built-in Schuko socket. This allows each phase to be tested individually.
This text is machine translated.
This text is machine translated.
Features
- TV 900 is an adapter for type 2 charging columns Using a VDE0100 tester
- the adapter simulates a connected electric car both possible faults
- Connection option for installation tester or multimeter
- Direct check of the phases via LED display
- Built-in Schuko socket with phase switching
Scope of delivery
- Incl. bag
