Name: testo 0572 1626 162 IAQ Multi-channel data logger Unit of measurement CO2, Air pressure, Temperature, Humidity 0 up to +
Brand: testo
SKU: 3429155
Availability: InStock

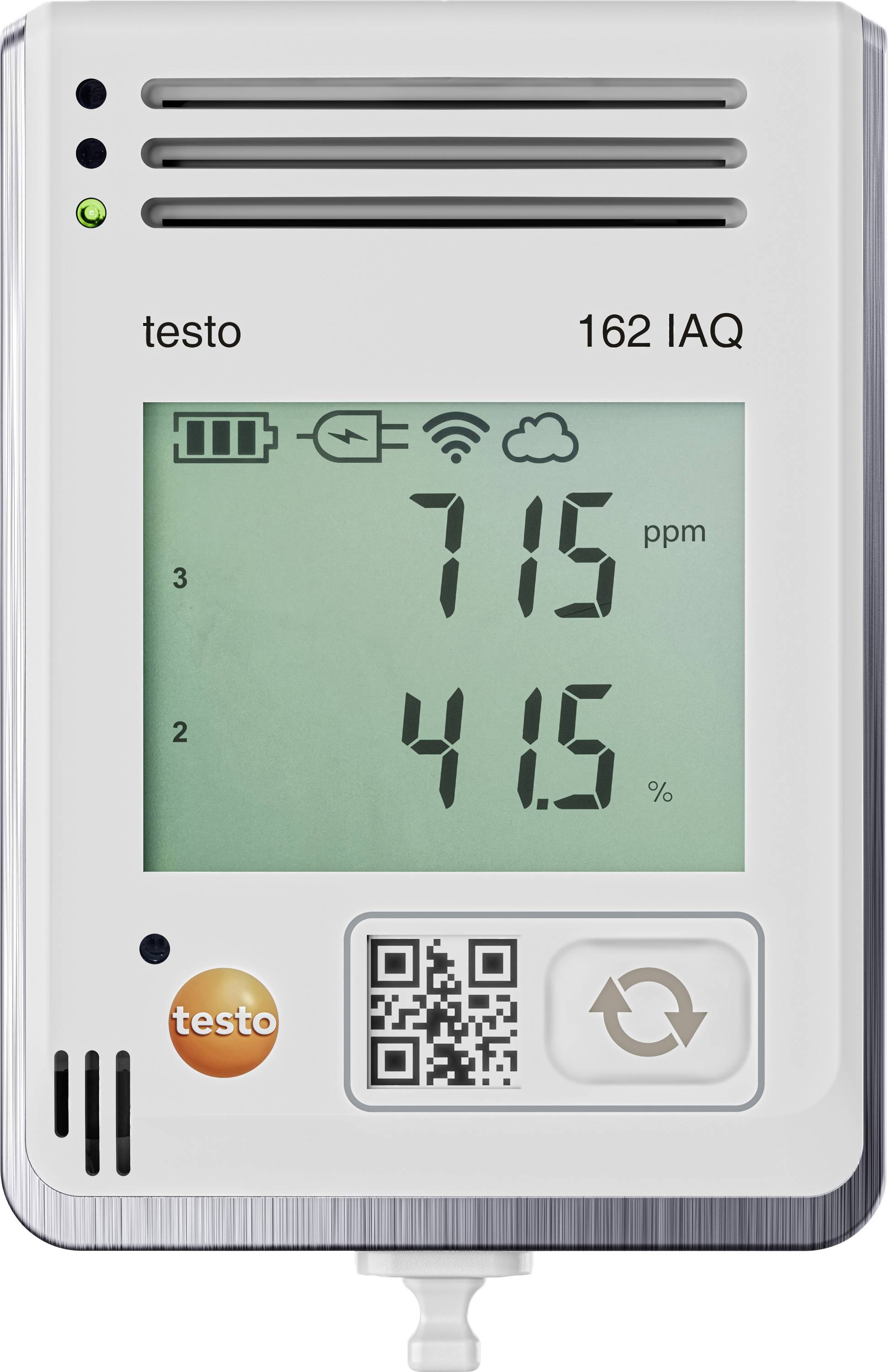

Digital measuring device for monitoring CO2 concentration and humidity; display shows '715 ppm' CO2, '41.5%' humidity.

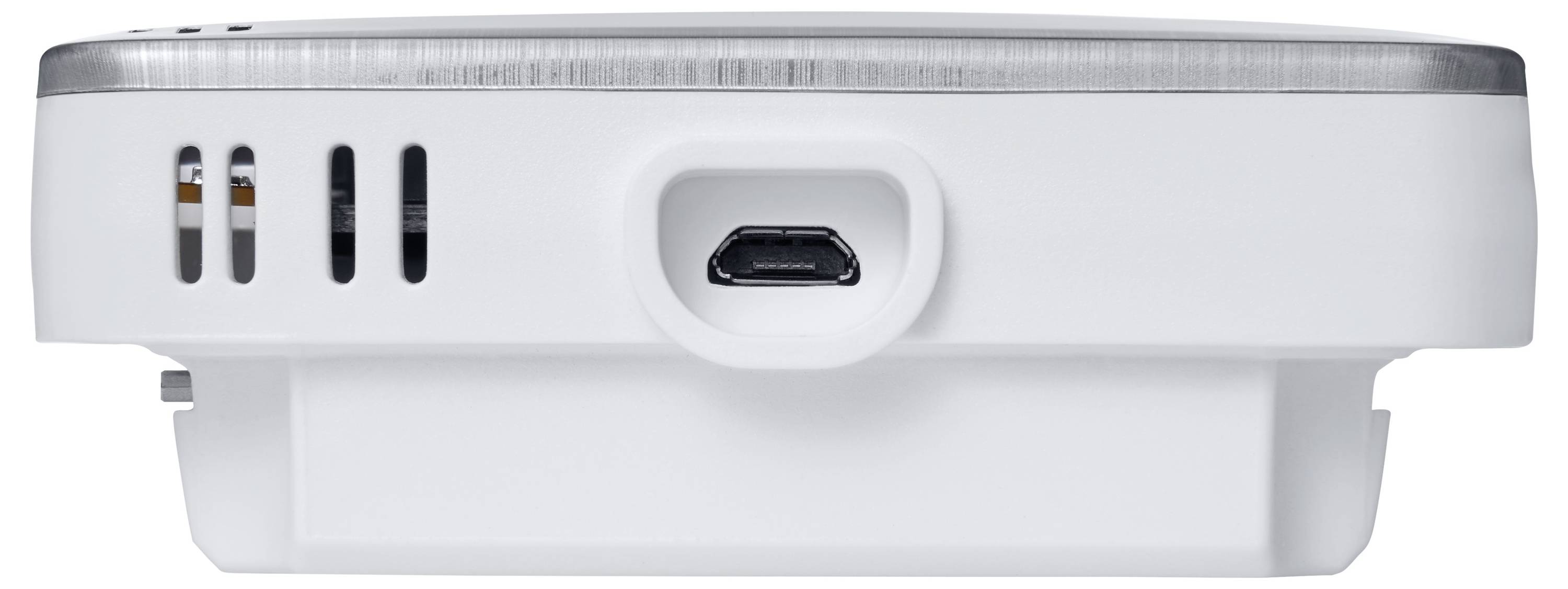

A white electronic device with USB port and ventilation slots, possibly a projector or similar hardware.

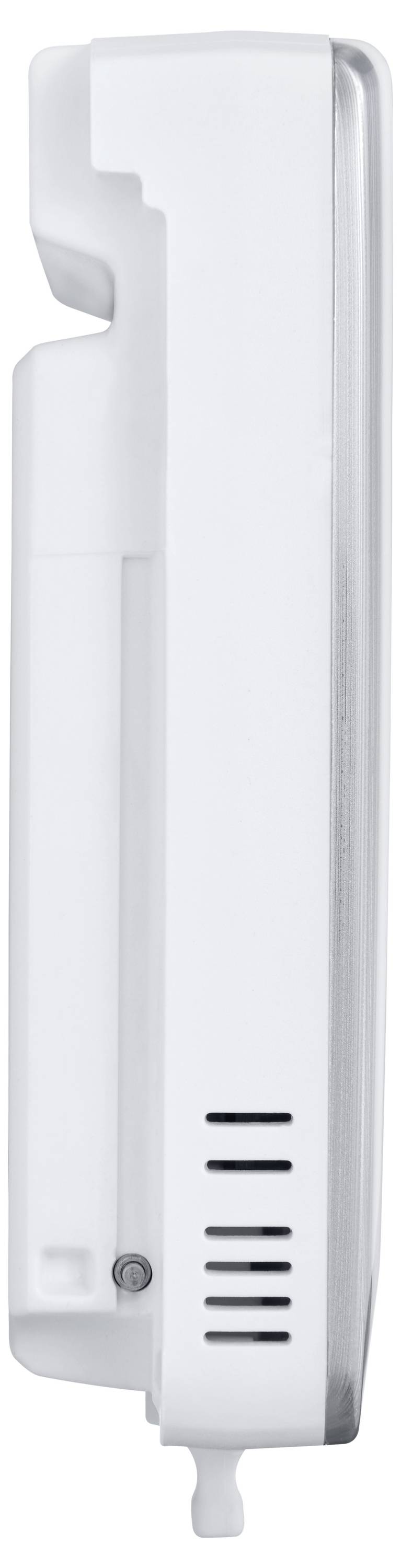

Side view of a white electronic device with ventilation slots at the bottom.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 775.00 / piece)

€ 775.00

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

testo 0572 1626 162 IAQ Multi-channel data logger Unit of measurement CO2, Air pressure, Temperature, Humidity 0 up to +50 °C 0 up to 100 RH 0.600 - 1.100 bar incl. wall bracket

Alert with exceeding of limit value via push notification, e-mail or SMS (optional)
Automated monitoring of temperature, humidity, CO2 and atmospheric pressure with integrated sensor
Connection to the testo Smart APP: Simple start-up, push alarms and dashboard
Automatic measurement documentation in testo Saveris (cloud)
Data transfer via WLAN
Visual inspection on site by large display

Technical specifications

Product type: Multi-channel data logger

Unit of measurement: CO2
Air pressure
Temperature
Humidity

Temperature resolution: 0.1 °C

Temperature reading range (min.): 0 °C

Temperature reading range (max.): +50 °C

: Manufacturer's standards (no certificate)

Power supply (details): 4 AA batteries, power supply unit

Battery life: 12 Mon.

Dim: (L x W x H) 32 x 82 x 117 mm

Weight: 240 g

Channels: 4

Features: incl. wall bracket

Calibration range: Carbon dioxide

CO2 reading range (max.): 5000 ppm

CO2 reading range (min.): 0 ppm

Humidity reading range (max.): 100 RH

Humidity reading range (min.): 0 RH

Air pressure reading range (max.): 1.100 bar

Air pressure reading range (min.): 0.600 bar

Temperature reading range: 0 up to +50 °C

Humidity reading accuracy: 2 RH

Air pressure accuracy: 3 mbar

Sample rate (max.): 24 h

Sample rate (min.): 15 min

Width: 82 mm

Height: 117 mm

Length: 32 mm

Interfaces: USB
Wi-Fi

: IP20

Power supply: 5 V via USB
AA battery (4x), or via mains supply

Reading accuracy temperature: 0.5 °C

Type: 162 IAQ

Variants(All information include VAT, plus shipping costs)

Product type

Temperature reading range (max.)

Temperature reading range (min.)

Temperature resolution

Unit of measurement

testo 0572 1626 162 IAQ Multi-channel data logger Unit of measurement CO2, Air pressure, Temperature, Humidity 0 up to +50 °C 0 up to 100 RH 0.600 - 1.100 bar incl. wall bracket

Item no:3429155

Fast track dispatch on Thu 29 Oct

7 Piece(s)Conrad Electronic

This article

Multi-channel data logger

+50 °C

0 °C

0.1 °C

CO2

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 775.00^*

testo 0572 1621 162 T1 Temperature data logger Unit of measurement Temperature -30 up to 50 °C incl. wall bracket

Item no:3429150

Fast track dispatch on Thu 29 Oct

17 Piece(s)Conrad Electronic

Temperature data logger

50 °C

-30 °C

0,1 °C

Temperature

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 214.99^*

testo 0572 1622 162 T2 Temperature data logger Unit of measurement Temperature -50 up to 150 °C incl. wall bracket

Item no:3429151

Fast track dispatch on Thu 29 Oct

12 Piece(s)Conrad Electronic

Temperature data logger

150 °C

-50 °C

0,1 °C

Temperature

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 244.99^*

testo 0572 1623 162 T3 Temperature data logger Unit of measurement Temperature -195 up to 1350 °C incl. wall bracket

Item no:3429152

Fast track dispatch on Thu 29 Oct

7 Piece(s)Conrad Electronic

Temperature data logger

1350 °C

-195 °C

0.1 °C

Temperature

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 345.00^*

testo 0572 1624 162 H1 Multi-channel data logger Unit of measurement Temperature, Humidity -30 up to 50 °C 0 up to 100 RH incl. wall bracket

Item no:3429153

Fast track dispatch on Thu 29 Oct

14 Piece(s)Conrad Electronic

Multi-channel data logger

50 °C

-30 °C

0.1 °C

Temperature

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 425.00^*

testo 0572 1625 162 H2 Multi-channel data logger Unit of measurement Temperature, Humidity incl. wall bracket

Item no:3429154

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

Multi-channel data logger

0.1 °C

Temperature

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 379.00^*

testo 0572 1629 162 fridge set Temperature data logger Unit of measurement Temperature -50 up to 150 °C incl. wall bracket

Item no:3429156

Dispatches on Mon 2 Nov

23 Piece(s)Conrad Electronic

Temperature data logger

150 °C

-50 °C

0.1 °C

Temperature

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 469.00^*

testo 0572 2019 160 T Temperature data logger Unit of measurement Temperature -30 up to 50 °C incl. wall bracket

Item no:3429149

Dispatches on Mon 2 Nov

953 Piece(s)Conrad Electronic

Temperature data logger

50 °C

-30 °C

0,1 °C

Temperature

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 149.99^*

Documents & Downloads

Datasheet

Datasheet 3429155 testo 0572 1626 162 IAQ Multi-channel data logger Unit of measurement CO2, Air pressure, Temperature, Humidity 0 up to +

User & Safety Instructions

User & Safety Instructions 3429155 testo 0572 1626 162 IAQ Multi-channel data logger Unit of measurement CO2, Air pressure, Temperature, Humidity 0 up to +

Information

Information 3429155 testo 0572 1626 162 IAQ Multi-channel data logger Unit of measurement CO2, Air pressure, Temperature, Humidity 0 up to +

Description

The online data logger testo 162 IAQ is an easy-to-use climate data logger with display for monitoring temperature, humidity, CO2 and atmospheric pressure with integrated sensor. The online data loggers testo 162 are part of the testo 160 online data logger system, comprising the hardware components (testo 160, testo 162, testo 164) as well as the testo Saveris Cloud and testo Smart APP. The testo Saveris Cloud is thereby the central data platform. Measured values can be viewed and analyzed there.

The testo data monitoring license is required to use the system.

The online data loggers testo 162 are part of the testo 160 online data logger system. They record measured values (temperature and humidity, pressure and CO2) and send these via a WLAN connection directly to the testo cloud.

If a threshold is exceeded, the testo Smart APP sends a push notification to notify you of any violations of the threshold. Alternatively, you can send an email or SMS notification.

Use your smartphone, tablet or PC to access all readings and analysis functions from wherever you are.

Perfectly connected: With the online data logger testo 162 IAQ and the testo Saveris Cloud
The testo Saveris Cloud is the central control element of the testo 160 online data logger system. With the testo 162 IAQ, you save your data data over an existing WLAN in the testo Saveris Cloud. Here you can configure your online data loggers, set limit alarms and analyze your measurement data. To operate the online data logger in the testo Saveris Cloud, a valid license must be purchased (data monitoring license).

The installation of the system is easy and can be done via the testo Smart APP.

This text is machine translated.
