testo 0635 1032 0635 1032 Probe 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 273.11 / piece)
€ 273.11
plus VAT.
Only 3 Piece(s) available
Highlights & Details

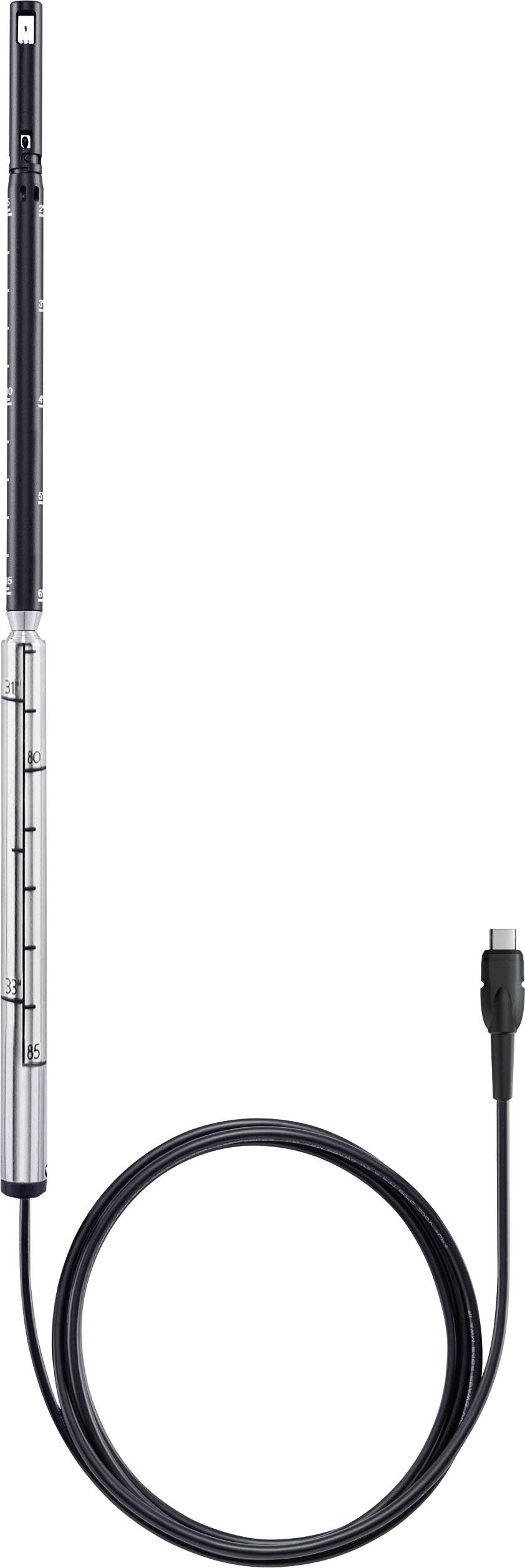

Hot-wire probe incl. temperature sensor, wired
- Intelligent calibration concept
- Comfortable: integrated telescopic to 0.85m with scaling enables convenient measure in each cross-section
- Intuitive: Clearly structured measurement menu for volume flow, as well as parallel determination of flow speed, volume flow and temperature.
- Precise: Automatic absolute pressure compensation ensures exact measurement results
Technical specifications
- Cable length 1.7 m; long telescopic: 850 mm; Diameter Probe/probe head: 9 mm; Diameter telescope: 12 mm, weight 90 g; dimensions: 315 x 12 x 12 mm, operating temperature -20 to +70 °C; temperature-NTC;Measuring range: -20 to +70 °C, accuracy ± 0.5 °C, resolution 0.1 °C; flow-hot-wire; measuring range: 0 to 30 m/s; accuracy: ± (0.03 m/s + 4% of MW). (0 to 20 m/s) ± (0.5 m/s + 5% of Mw) (20,01 to 30 m/s); Resolution: 0.01 m/s
- Product type
Probe
- Compatible with
testo
- Type
0635 1032
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1661183 testo 0635 1032 0635 1032 Probe 1 pc(s)
Description
For measurements in the ventilation duct: with the hot-wire probe measure (with the appropriate measuring device) flow speed, volume flow and temperature.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Hot-wire probe (Ø 9 mm) with fixed cable (length 1.7 m) including temperature sensor
- Telescope (extendable up to 0.85 m)
- Calibration record
