Name: testo 565i EX - ATEX-zertifizierte Vakuumpumpe, 7 CFM Vacuum pump App-controlled 198 l/min
Brand: testo
SKU: 3787096
Availability: InStock

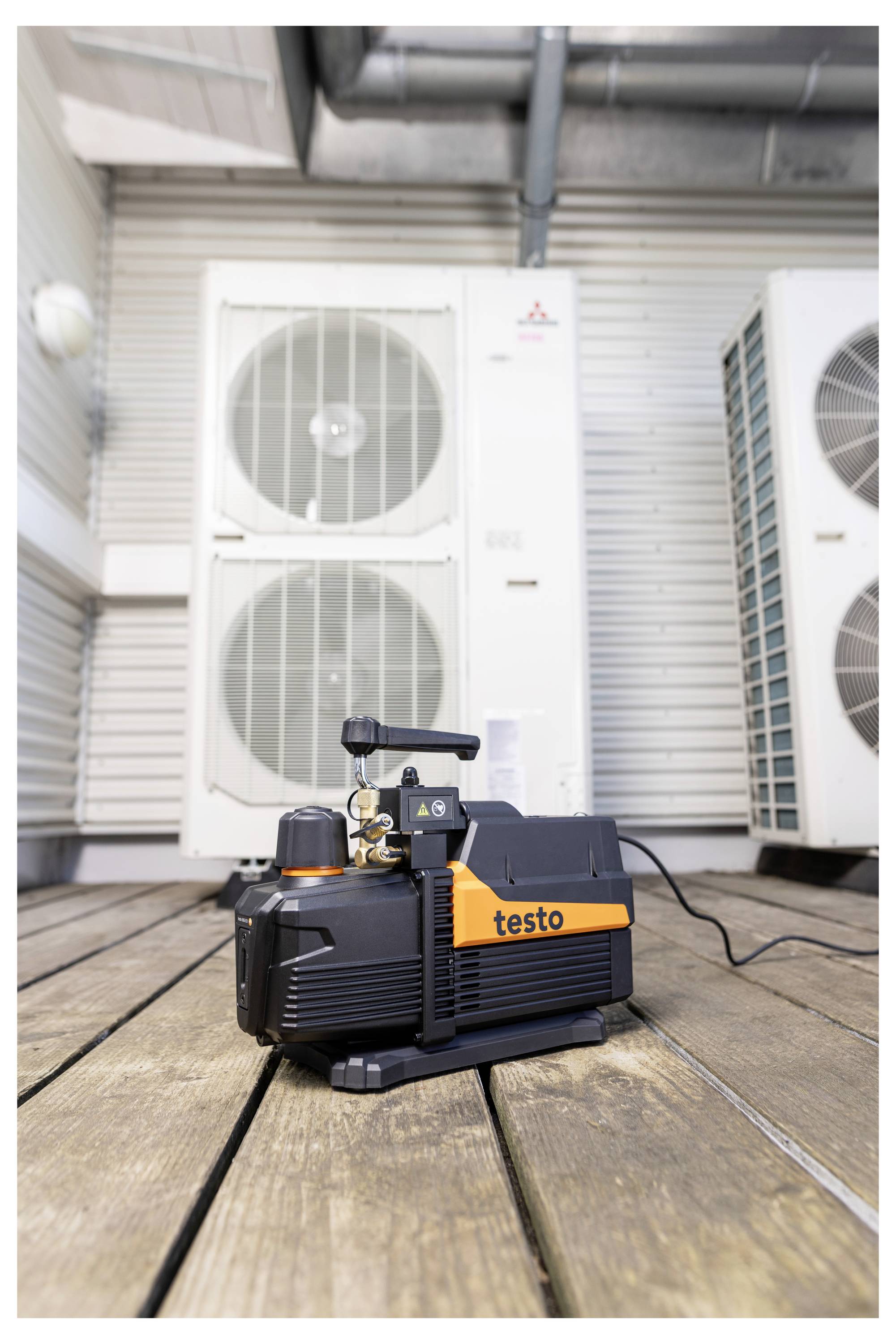

Portable Testo vacuum pump on a wooden deck in front of outdoor air-conditioning units.<br>

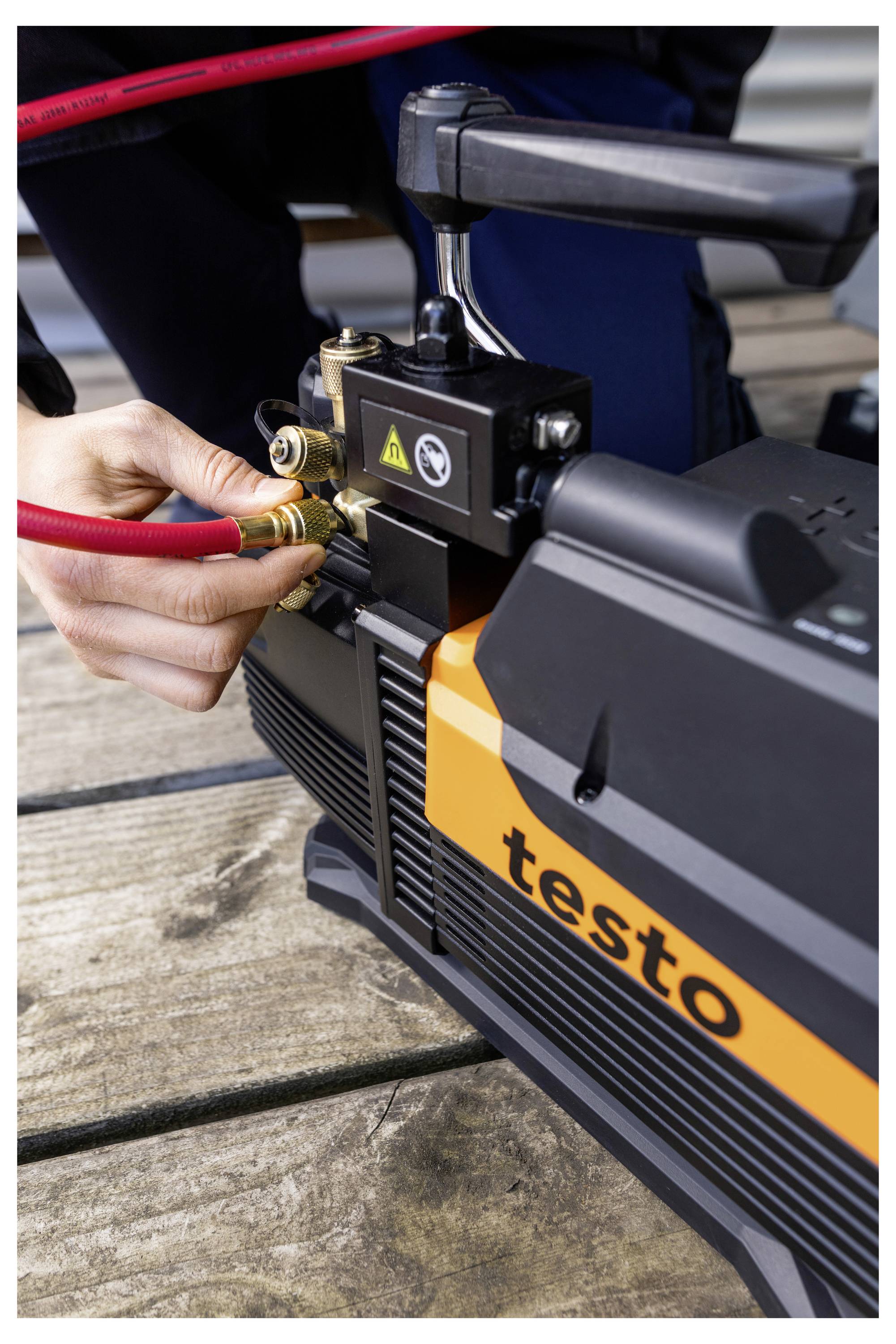

Person connecting a red hose to a Testo device on a workbench, likely during HVAC or pressure testing.<br>

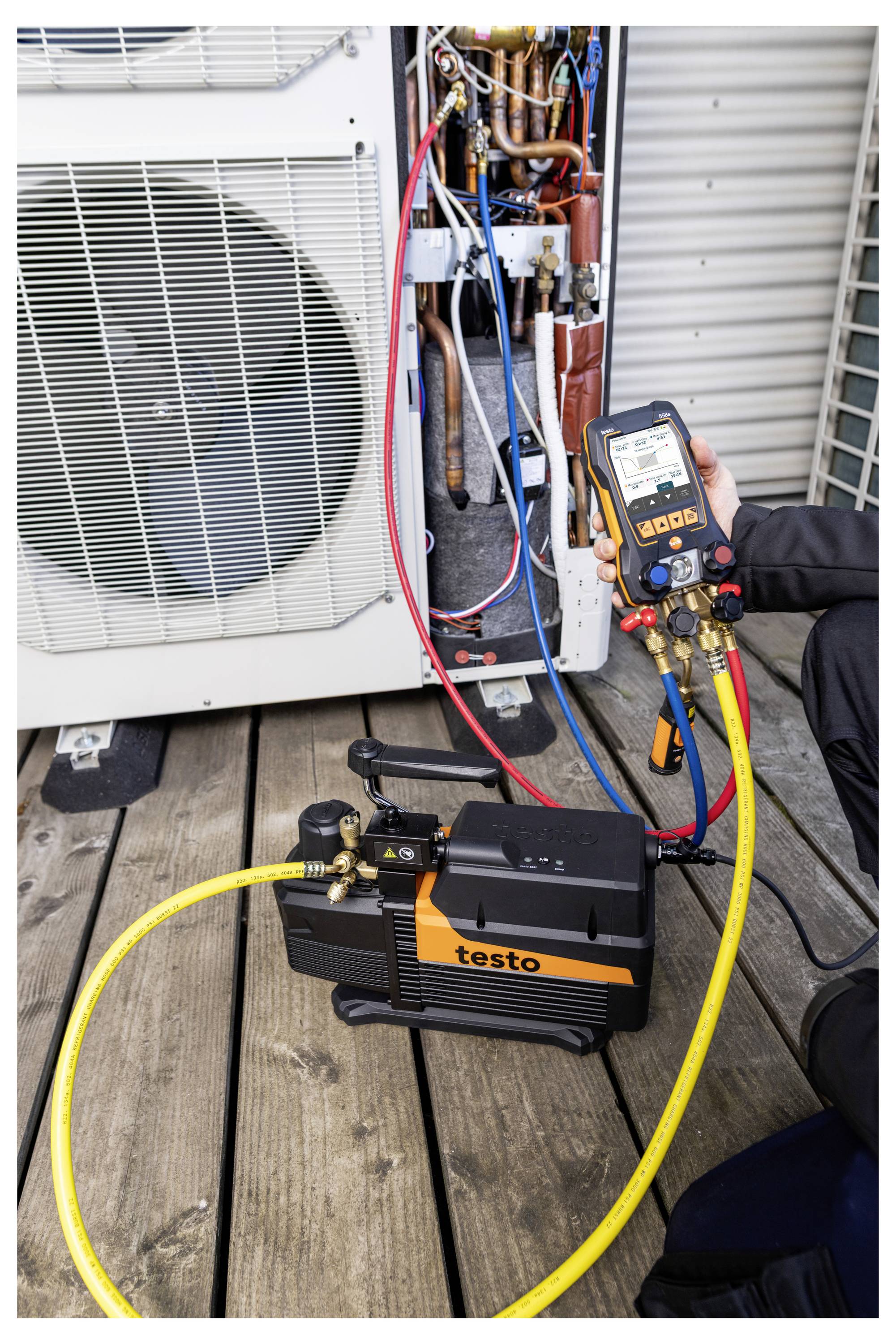

Technician testing an outdoor air conditioner with a Testo gauge and hoses connected to the unit’s exposed refrigerant lines.<br>

1/5

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

11 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,099.00 / piece)

€ 1,099.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

testo 565i EX - ATEX certified vacuum pump, 7 CFM

ATEX-certified for working in hazardous environments
Easy oil change with sight glass for a quick assessment of the oil level
Check valve to prevent vacuum loss if power is interrupted
A3-/A2L-compatible for safe use even in combustible refrigerants
Fully automatic evacuation process with integrated hold test when used in combination with the testo 552i vacuum probe (for applications outside of Ex zones)
Configure, monitor and manage a APP for all measurements with the testo Smart APP
Perfect interaction of the workflows through full connectivity to the entire testo cold portfolio

Technical specifications

Product type: Vacuum pump

Features: App-controlled

Type: 2-stage rotary vane pump with ATEX certification

Max. feed rate: 198 l/min

Hose connector: 11.5 mm (1/4") IT
15.0 mm (3/8") IT
18.7 mm (1/2") IT

Weight: 13.2 kg

Documents & Downloads

Datasheet

Datasheet 3787096 testo 565i EX - ATEX-zertifizierte Vakuumpumpe, 7 CFM Vacuum pump App-controlled 198 l/min

User & Safety Instructions

User & Safety Instructions 3787096 testo 565i EX - ATEX-zertifizierte Vakuumpumpe, 7 CFM Vacuum pump App-controlled 198 l/min

Security datasheet

Security datasheet 3787096 testo 565i EX - ATEX-zertifizierte Vakuumpumpe, 7 CFM Vacuum pump App-controlled 198 l/min

Description

The new ATEX vacuum pump testo 565i EX, certified for Zone 2, carries out evacuations to refrigeration systems and heat pumps outside of Ex zones fully automatically thanks to connection to the testo 552i vacuum probe.
When the desired vacuum target value is reached, pumping is automatically stopped and a vacuum hold test is started at the same time. This safely removes foreign gases and moisture and stores data on the density of the plant. Complete documentation is ensured via the data logging function. This means that evacuations outside Ex zones can be completely automated.

Configuration, monitoring of live-values and transmission of measurement protocol can be controlled very easily via the free testo Smart APP. So you remain flexible and save valuable time. For a perfect interplay of workflow the vacuum pump testo 565i EX represents an automatic Bluetooth connection with the testo cold measuring devices as well as the testo Smart APP HER upon switching on. In addition, thanks to compatibility with A2L and A3 refrigerants the pump guarantees the highest level of safety at all times.

This text is machine translated.
