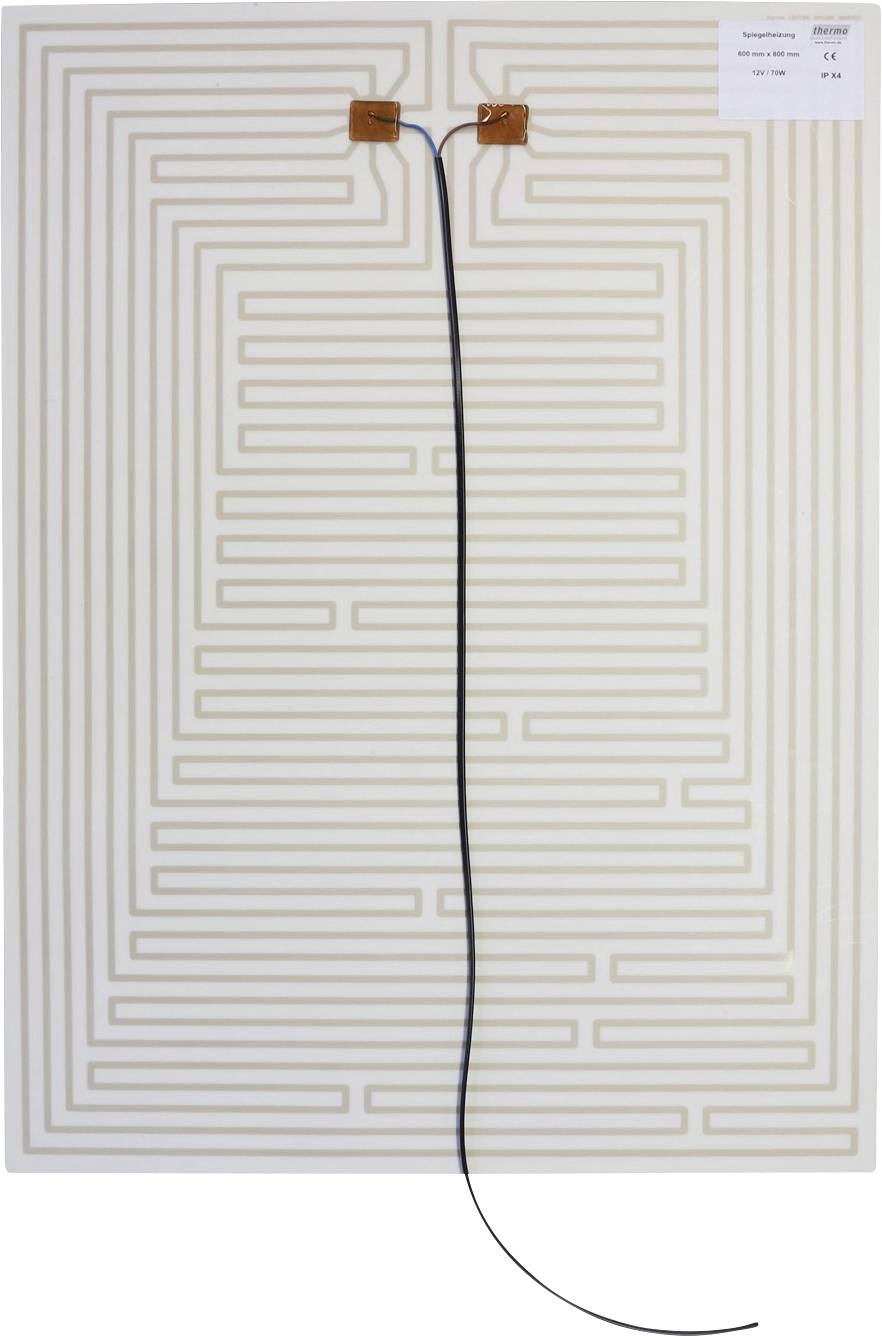

Thermo TECH Heating foil self-adhesive 12 V AC, 12 V DC 70 W IP rating IPX4 (L x W) 800 mm x 600 mm
EAN:
Part number:
Item no:
Product type
Heating foil
Operating voltage
12 V AC
12 V DC
Power
70 W
IP rating
IPX4
Length
800 mm
Datasheet (PDF)
Number
Total (€ 144.99 / piece)
€ 144.99
incl. VAT
Only 2 Piece(s) available
Technical specifications
- Heat density 0.015 W/cm²
- Product type
Heating foil
- Features
self-adhesive
- Operating voltage
12 V AC
12 V DC
70 W
- Lead length
1000 mm
IPX4
- Min. surface temperature
-40 °C
- Max. surface temperature
+90 °C
- Length
800 mm
- Width
600 mm
- Dim
(L x W) 800 mm x 600 mm
Documents & Downloads
Datasheet
Datasheet 3742782 Thermo TECH Heating foil self-adhesive 12 V AC, 12 V DC 70 W IP rating IPX4 (L x W) 800 mm x 600 mm
User & Safety Instructions
User & Safety Instructions 3742782 Thermo TECH Heating foil self-adhesive 12 V AC, 12 V DC 70 W IP rating IPX4 (L x W) 800 mm x 600 mm
Description
Fully self-adhesive surface-adhesive, connection cable H03VVH2-F 2x0.75 mm2, black, oval, approx. 1000 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
