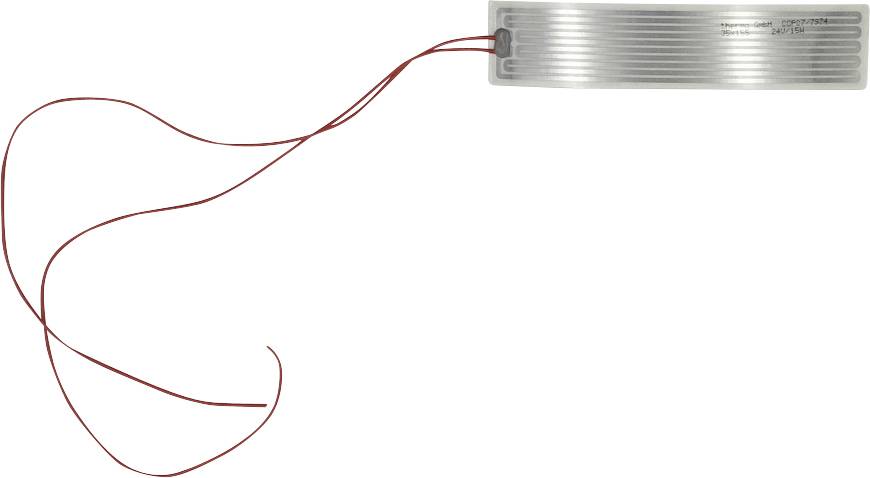

Thermo TECH PET Heating element 24 V AC, 24 V DC 15 W IP rating IPX4 (L x W) 155 mm x 35 mm
EAN:
Part number:
Item no:
Product type
Heating element
Operating voltage
24 V AC
24 V DC
Power
15 W
IP rating
IPX4
Length
155 mm
Datasheet (PDF)
Number
Total (€ 21.99 / piece)
€ 21.99
incl. VAT
Only 2 Piece(s) available
Technical specifications
- Heat density 0.276 W/cm²
- Product type
Heating element
- Operating voltage
24 V AC
24 V DC
15 W
- Material
PET
- Material thickness
0.3 mm
IPX4
- Min. surface temperature
-30 °C
- Max. surface temperature
+85 °C
- Length
155 mm
- Width
35 mm
- Dim
(L x W) 155 mm x 35 mm
Documents & Downloads
Datasheet
Datasheet 3742771 Thermo TECH PET Heating element 24 V AC, 24 V DC 15 W IP rating IPX4 (L x W) 155 mm x 35 mm
User & Safety Instructions
User & Safety Instructions 3742771 Thermo TECH PET Heating element 24 V AC, 24 V DC 15 W IP rating IPX4 (L x W) 155 mm x 35 mm
Description
Adhesive tape Crown 612, silicone leads AWG 22 x 400 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
