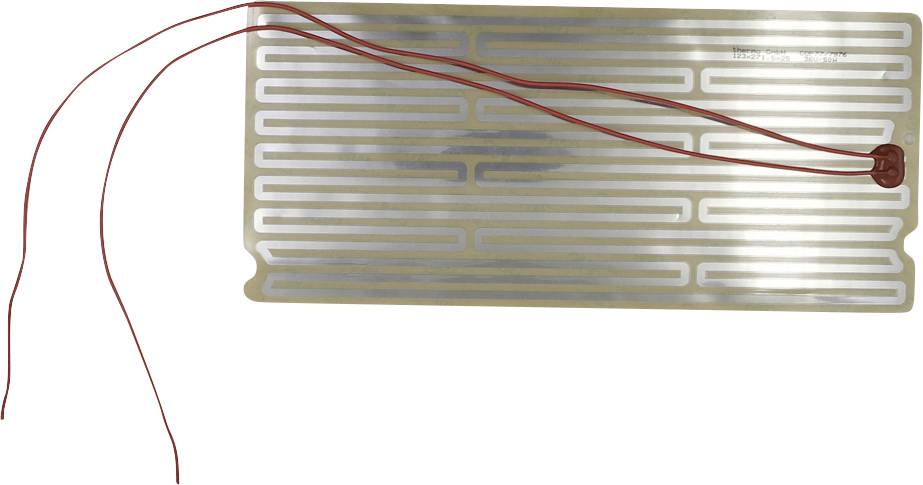

Thermo TECH PET Heating element 36 V AC, 36 V DC 50 W IP rating IPX4 (L x W) 217.5 mm x 123 mm
EAN:
Part number:
Item no:
Product type
Heating element
Operating voltage
36 V AC
36 V DC
Power
50 W
IP rating
IPX4
Length
217.5 mm
Datasheet (PDF)
Number
Total (€ 35.99 / piece)
€ 35.99
incl. VAT
Only 5 Piece(s) available
Technical specifications
- Heat density 0.150 W/cm²
- Product type
Heating element
- Operating voltage
36 V AC
36 V DC
50 W
- Material
PET
- Material thickness
0.3 mm
IPX4
- Min. surface temperature
-30 °C
- Max. surface temperature
+85 °C
- Length
217.5 mm
- Width
123 mm
- Dim
(L x W) 217.5 mm x 123 mm
Documents & Downloads
Datasheet
Datasheet 3742770 Thermo TECH PET Heating element 36 V AC, 36 V DC 50 W IP rating IPX4 (L x W) 217.5 mm x 123 mm
User & Safety Instructions
User & Safety Instructions 3742770 Thermo TECH PET Heating element 36 V AC, 36 V DC 50 W IP rating IPX4 (L x W) 217.5 mm x 123 mm
Description
Adhesive tape 3M 467MP 200MP, silicone connection wires AWG 22 x 500 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
