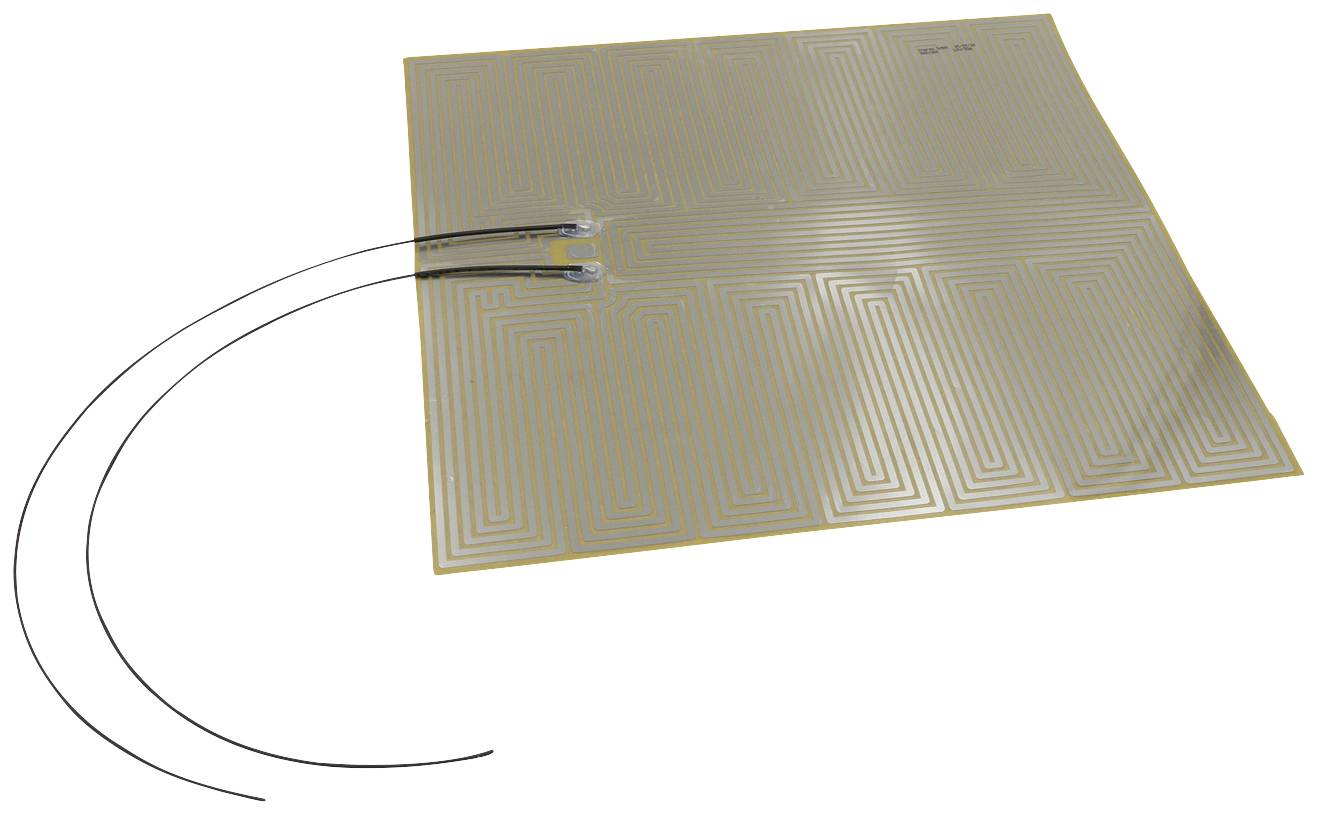

Thermo TECH PET Heating foil self-adhesive 12 V DC, 12 V AC 35 W IP rating IPX4 (L x W) 360 mm x 360 mm
EAN:
Part number:
Item no:
Product type
Heating foil
Operating voltage
12 V DC
12 V AC
Power
35 W
IP rating
IPX4
Surface temperature
40 °C
Datasheet (PDF)
Number
Total (€ 97.99 / piece)
€ 97.99
incl. VAT
14-day return policy included
Highlights & Details
PET heating element, heat conductor etched, 12V AC/DC, 35W +/-10%, 360x360mm
- Heat conductor etched
- Underside self-adhesive
- Helutherm 145 single wire
- 0.5 mm² x 500 mm
- This text is machine translated.
Technical specifications
- Continuous operating temperature -40 °C to +80 °C.
- Heat density 0,027 W/cm²
- Product type
Heating foil
- Features
self-adhesive
- Operating voltage
12 V DC
12 V AC
35 W
- Material
PET
- Material thickness
0.3 mm
- Connection
Open end cable
- Lead length
500 mm
IPX4
- Min. surface temperature
-40 °C
- Surface temperature
40 °C
- Max. surface temperature
+80 °C
- Length
360 mm
- Width
360 mm
- Dim
(L x W) 360 mm x 360 mm
Documents & Downloads
Datasheet
Datasheet 2986460 Thermo TECH PET Heating foil self-adhesive 12 V DC, 12 V AC 35 W IP rating IPX4 (L x W) 360 mm x 360 mm
User & Safety Instructions
User & Safety Instructions 2986460 Thermo TECH PET Heating foil self-adhesive 12 V DC, 12 V AC 35 W IP rating IPX4 (L x W) 360 mm x 360 mm
