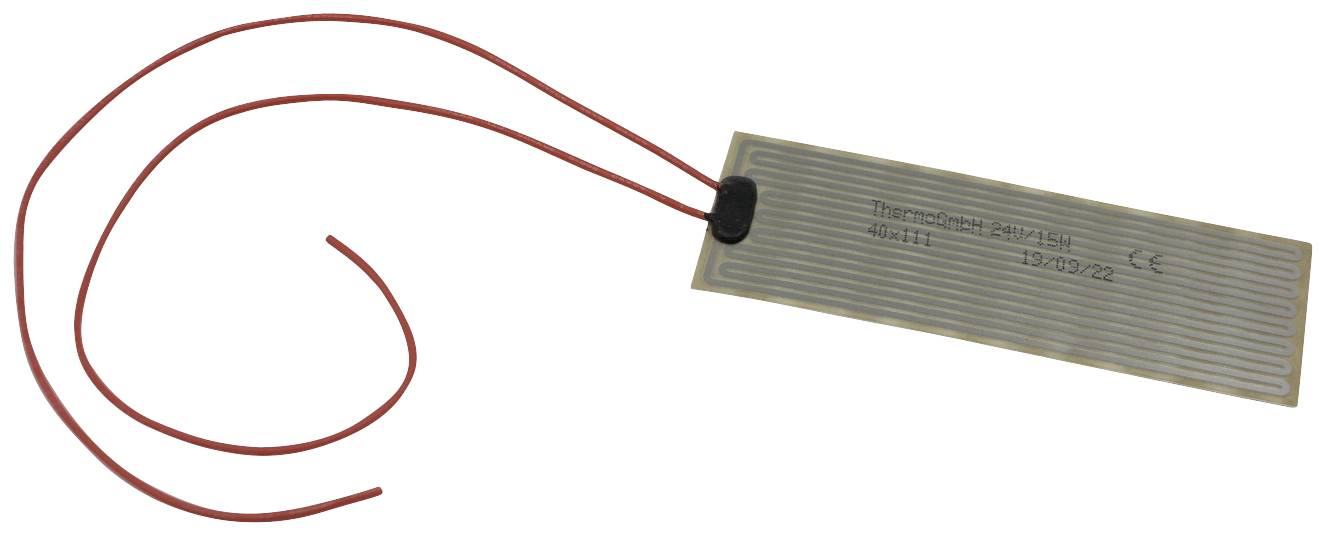

Thermo TECH PET Heating foil self-adhesive 24 V DC, 24 V AC 15 W IP rating IPX4 (L x W) 111 mm x 40 mm
EAN:
Part number:
Item no:
Product type
Heating foil
Operating voltage
24 V DC
24 V AC
Power
15 W
IP rating
IPX4
Surface temperature
146 °C
Datasheet (PDF)
Number
Total (€ 21.99 / piece)
€ 21.99
incl. VAT
14-day return policy included
Highlights & Details
PET heating element, heat conductor etched, 24V AC/DC, 15W +/-10%, 40x111mm
- Heat conductor etched
- Underside self-adhesive
- Silicone connection wires AWG 22 x 260 mm
- This text is machine translated.
Technical specifications
- Continuous operating temperature -40 °C to +80 °C.
- Heat density 0,338 W/cm²
- Product type
Heating foil
- Features
self-adhesive
- Operating voltage
24 V DC
24 V AC
15 W
- Material
PET
- Material thickness
0.3 mm
- Connection
Open end cable
- Lead length
260 mm
IPX4
- Min. surface temperature
-40 °C
- Surface temperature
146 °C
- Max. surface temperature
+80 °C
- Length
111 mm
- Width
40 mm
- Dim
(L x W) 111 mm x 40 mm
Documents & Downloads
Datasheet
Datasheet 2986462 Thermo TECH PET Heating foil self-adhesive 24 V DC, 24 V AC 15 W IP rating IPX4 (L x W) 111 mm x 40 mm
User & Safety Instructions
User & Safety Instructions 2986462 Thermo TECH PET Heating foil self-adhesive 24 V DC, 24 V AC 15 W IP rating IPX4 (L x W) 111 mm x 40 mm
