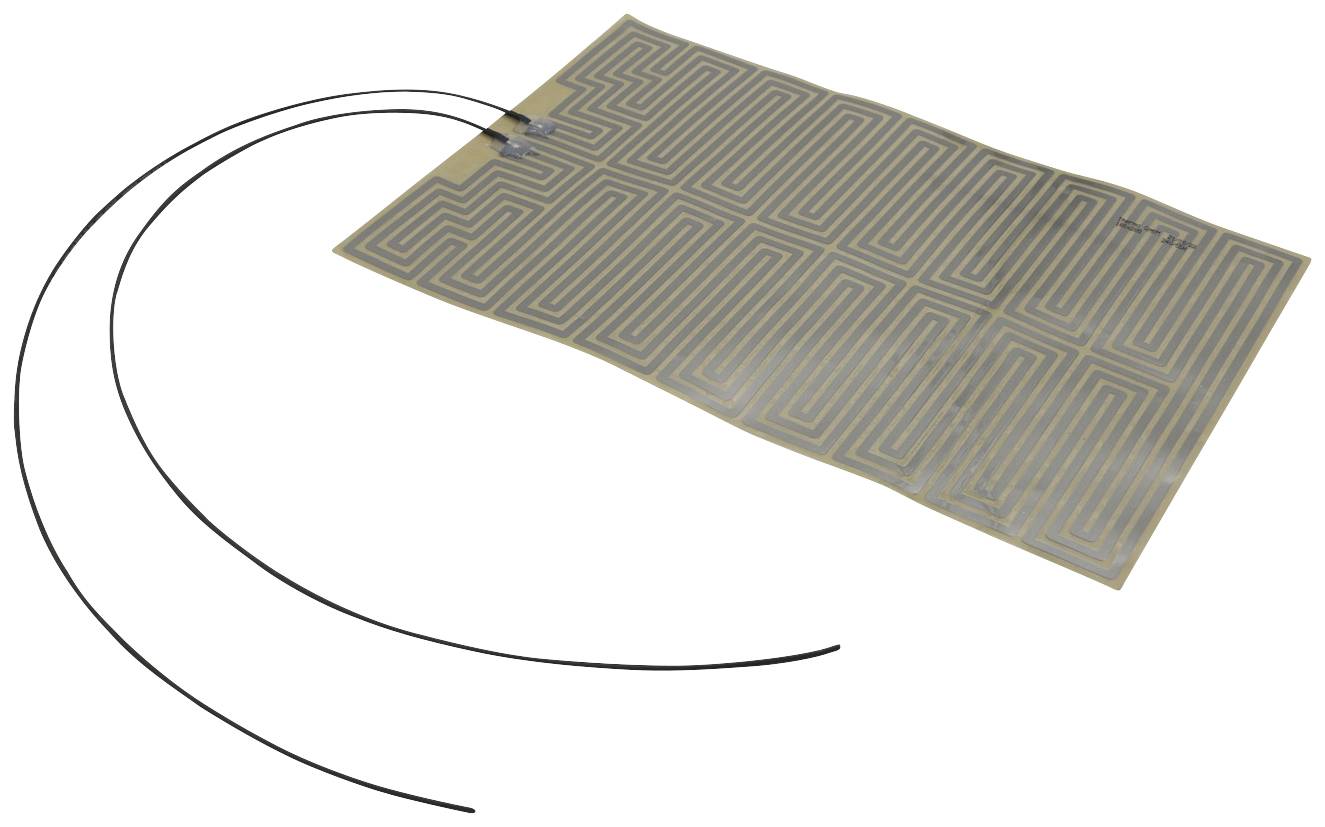

Thermo TECH PET Heating foil self-adhesive 24 V DC, 24 V AC 55 W IP rating IPX4 (L x W) 280 mm x 180 mm
EAN:
Part number:
Item no:
Product type
Heating foil
Operating voltage
24 V DC
24 V AC
Power
55 W
IP rating
IPX4
Surface temperature
68 °C
Datasheet (PDF)
Number
Total (€ 37.99 / piece)
€ 37.99
incl. VAT
14-day return policy included
Highlights & Details
PET heating element, heat conductor etched, 24V AC/DC, 55W +/-10%, 180x280mm
- Heat conductor etched
- Underside self-adhesive
- Helutherm 145 single wire
- 0.5 mm² x 500 mm
- This text is machine translated.
Technical specifications
- Continuous operating temperature -40 °C to +80 °C.
- Heat density 0,109 W/cm²
- Product type
Heating foil
- Features
self-adhesive
- Operating voltage
24 V DC
24 V AC
55 W
- Material
PET
- Material thickness
0.3 mm
- Connection
Open end cable
- Lead length
500 mm
IPX4
- Min. surface temperature
-40 °C
- Surface temperature
68 °C
- Max. surface temperature
+80 °C
- Length
280 mm
- Width
180 mm
- Dim
(L x W) 280 mm x 180 mm
Documents & Downloads
Datasheet
Datasheet 2986463 Thermo TECH PET Heating foil self-adhesive 24 V DC, 24 V AC 55 W IP rating IPX4 (L x W) 280 mm x 180 mm
User & Safety Instructions
User & Safety Instructions 2986463 Thermo TECH PET Heating foil self-adhesive 24 V DC, 24 V AC 55 W IP rating IPX4 (L x W) 280 mm x 180 mm
