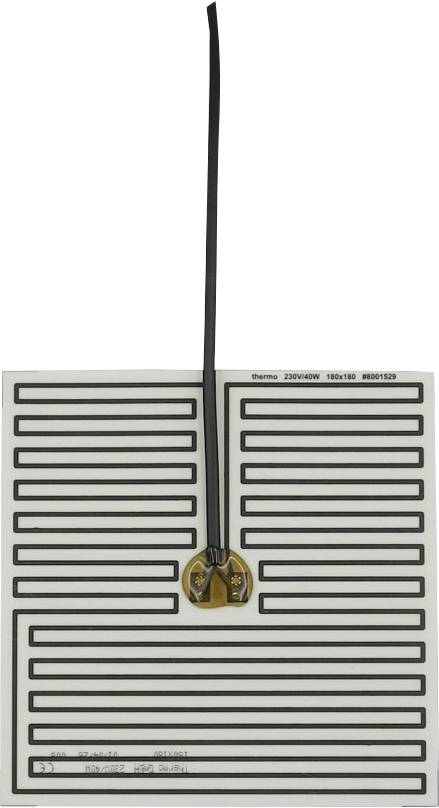

Thermo TECH Polyester Heating foil 230 V AC, 230 V DC 40 W IP rating IPX4 (L x W) 180 mm x 180 mm
EAN:
Part number:
Item no:
Product type
Heating foil
Operating voltage
230 V AC
230 V DC
Power
40 W
IP rating
IPX4
Length
180 mm
Datasheet (PDF)
Number
Total (€ 23.99 / piece)
€ 23.99
incl. VAT
14-day return policy included
Technical specifications
- Heat density 0.123 W/cm²
- Product type
Heating foil
- Operating voltage
230 V AC
230 V DC
40 W
- Material
Polyester
- Material thickness
0.3 mm
IPX4
- Min. surface temperature
-40 °C
- Max. surface temperature
+90 °C
- Length
180 mm
- Width
180 mm
- Dim
(L x W) 180 mm x 180 mm
Documents & Downloads
Datasheet
Datasheet 3742747 Thermo TECH Polyester Heating foil 230 V AC, 230 V DC 40 W IP rating IPX4 (L x W) 180 mm x 180 mm
User & Safety Instructions
User & Safety Instructions 3742747 Thermo TECH Polyester Heating foil 230 V AC, 230 V DC 40 W IP rating IPX4 (L x W) 180 mm x 180 mm
Description
Self-adhesive on one side, connection cable H03VVH2-F 2x 0.75 mm² x 250 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
