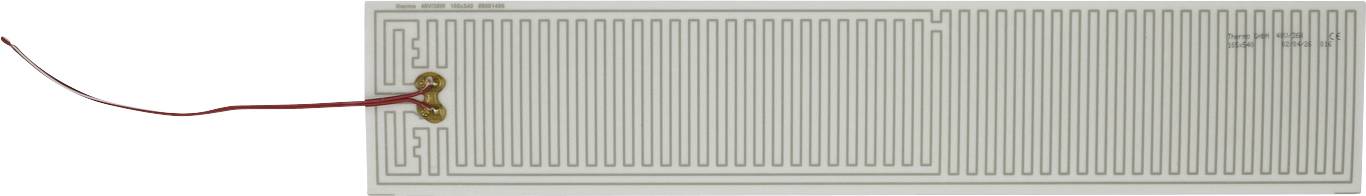

Thermo TECH Polyester Heating foil 48 V AC, 48 V DC 36 W IP rating IPX4 (L x W) 540 mm x 105 mm
EAN:
Part number:
Item no:
Product type
Heating foil
Operating voltage
48 V AC
48 V DC
Power
36 W
IP rating
IPX4
Length
540 mm
Datasheet (PDF)
Number
Total (€ 30.99 / piece)
€ 30.99
incl. VAT
Only 4 Piece(s) available
Technical specifications
- Heat density 0.063 W/cm²
- Product type
Heating foil
- Operating voltage
48 V AC
48 V DC
36 W
- Material
Polyester
- Material thickness
0.3 mm
IPX4
- Min. surface temperature
-40 °C
- Max. surface temperature
+90 °C
- Length
540 mm
- Width
105 mm
- Dim
(L x W) 540 mm x 105 mm
Documents & Downloads
Datasheet
Datasheet 3742750 Thermo TECH Polyester Heating foil 48 V AC, 48 V DC 36 W IP rating IPX4 (L x W) 540 mm x 105 mm
User & Safety Instructions
User & Safety Instructions 3742750 Thermo TECH Polyester Heating foil 48 V AC, 48 V DC 36 W IP rating IPX4 (L x W) 540 mm x 105 mm
Description
Self-adhesive on one side, connection cable FL 2x 0.38 mm² x 250 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
