TOOLCRAFT Soldering/desoldering station Digital 160 - 480 °C + tray, + desoldering pump
EAN:
Part number:
Item no:
Highlights & Details

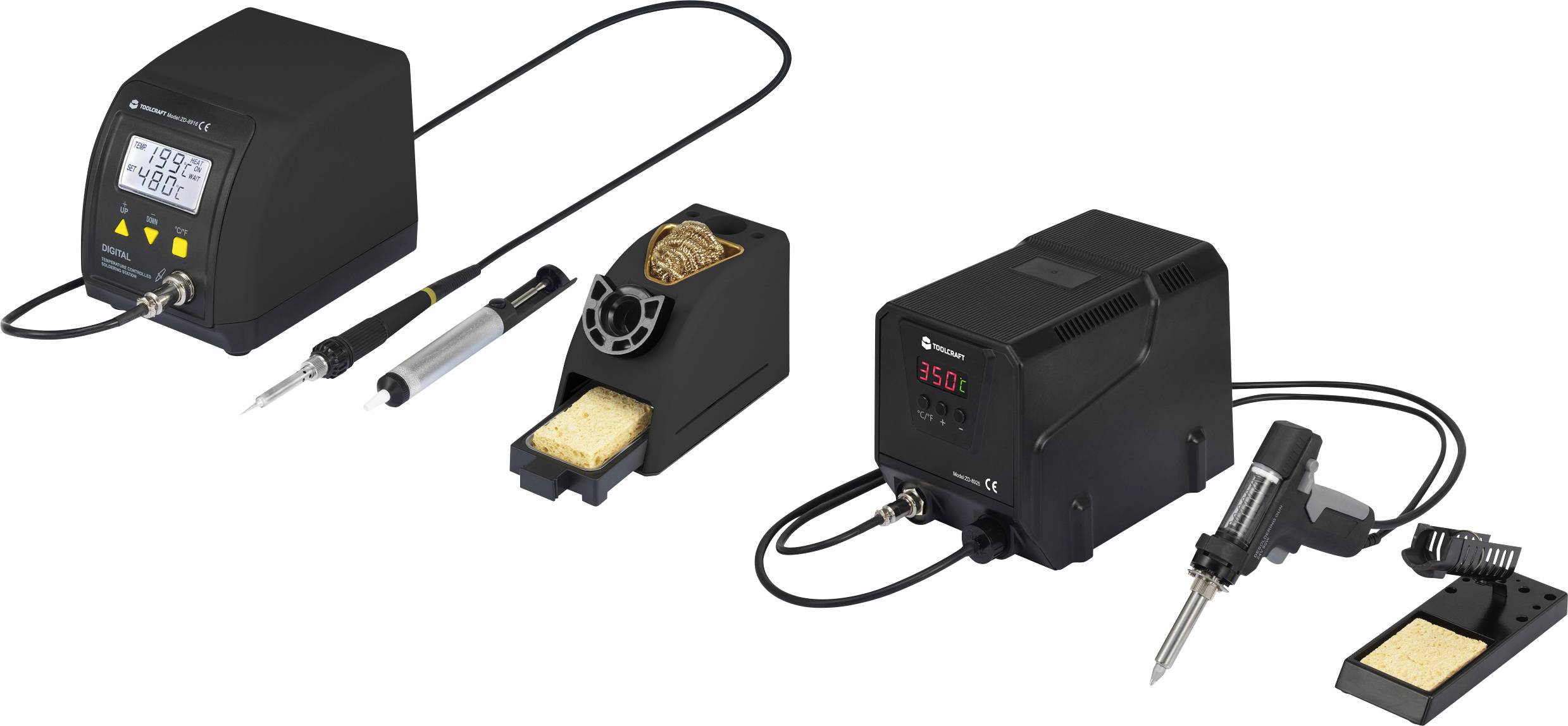

TOOLCRAFT soldering station + desoldering station
- Incl. Desoldering pump
- Temperature range 160 - 480 °C.
- Large display
- LED indicates temperature
- Easy and fast tip change
Technical specifications
- Desoldering station: Product dimensions - WxHxD - 160x170x240 mm, power max. 90W
- Soldering station: Product dimensions - WxHxD - 130x130x175 mm, max. power 60W
- Product type
Soldering/desoldering station
- Power supply (LOV)
mains-powered
- Max. temperature
480 °C
- Display
Digital
- Operating voltage
230 V
- Weight
4.58 kg
- Weight, information
approx.
- Soldering iron features
+ tray
+ desoldering pump
- Min. temperature
160 °C
- Vacuum pressure (max.)
600 mbar
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2001295 TOOLCRAFT Soldering/desoldering station Digital 160 - 480 °C + tray, + desoldering pump
User & Safety Instructions 2001295 TOOLCRAFT Soldering/desoldering station Digital 160 - 480 °C + tray, + desoldering pump
Conformity certificate
Conformity certificate 2001295 TOOLCRAFT Soldering/desoldering station Digital 160 - 480 °C + tray, + desoldering pump
Warranty Terms
Warranty Terms 2001295 TOOLCRAFT Soldering/desoldering station Digital 160 - 480 °C + tray, + desoldering pump
Description

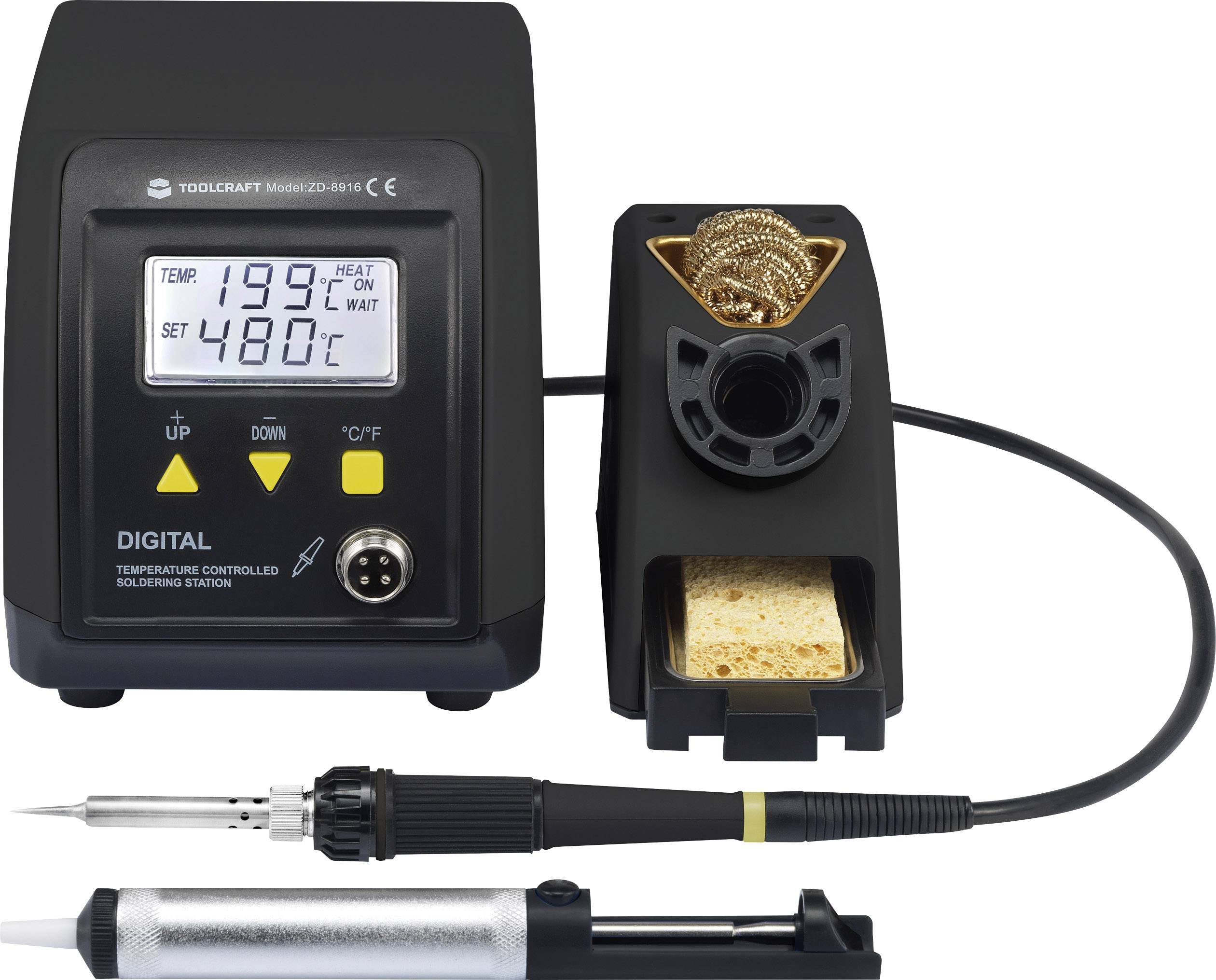

This soldering station has a large illuminated LCD display, which informs you at any time about the current temperature of the soldering iron. In addition, the set temperature is displayed in the Dispaly. The desired soldering temperature can be precisely set in 1°C steps using the up-down buttons on the station. The retractable sponge holder directly below the soldering iron stand allows easy cleaning of the soldering tip during soldering.
The desoldering station is the ideal device for melting and vacuuming lead-free soft solder. This soldering station combines a desoldering system and a classic soldering station in one device.
This text is machine translated.
The desoldering station is the ideal device for melting and vacuuming lead-free soft solder. This soldering station combines a desoldering system and a classic soldering station in one device.
This text is machine translated.
Features
- Short heating time
- Temperature specification with up/down keys
- Easy and quick tip change adjustable sponge holder
- Soldering tip cleaner dry sponge
- Digital display of set and actual temperature
- Temperature range 160 - 480 °C.
- Sponge holder can be inserted
- Temperature display in °C or °F.
- Deluxe holder for accessories such as desoldering pump, replacement tips
Scope of delivery
- Soldering station
- Soldering iron
- Power cord
- desoldering pump
- Stand for soldering iron
- Dry cleaner for soldering tips
- Cleaning sponge
- User manual
- Desoldering Station
- Soldering stand: Including base, sponge and holder
- 3x cotton disc 16.8 mm
- Cotton disc 20.8 mm
- 2x spare nozzles: N5-1, N5-3
- 3-piece cleaning tool set
- User manual
