Name: TOOLCRAFT TPS-200 Soldering station 200 W 150 - 480 °C
Brand: TOOLCRAFT
SKU: 2108748

TOOLCRAFT TPS-200 Soldering station 200 W 150 - 480 °C-0

TOOLCRAFT TPS-200 Soldering station 200 W 150 - 480 °C-1

TOOLCRAFT TPS-200 Soldering station 200 W 150 - 480 °C-2

TOOLCRAFT TPS-200 Soldering station 200 W 150 - 480 °C-3

TOOLCRAFT TPS-200 Soldering station 200 W 150 - 480 °C-4

TOOLCRAFT TPS-200 Soldering station 200 W 150 - 480 °C-5

1/6

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Dual Channel Rework Station 200 W +150 to +480 °C

Two separately adjustable channels for soldering iron and soldering tweezers, both channels can be used at the same time and switched on/off separately
Menu with a wide range of settings
Three programmable quick selection buttons
Large illuminated LCD display
Programmable countdown timer, after which the soldering station switches to standby mode and/or the heating function is disabled

Our service for you

Technical specifications

High compatible features, compatible with various type of soldering tools, a machine serves several purpose.
Dual channel, power max support to 150W, whole machine power max support to 200W.
Two channels can work at same time.
Big silicone buttons operate comfortable and reliable.
All kinds of parameter data and information in the form of graphics display with its large graphic display.

Product type: Soldering station

Max. power: 200 W

Max. temperature: 480 °C

Dim: (L x W x H) 226 x 152 x 152 mm

Operating voltage: 230 V AC

Weight: 3405 g

Weight, information: complete

Width: 152 mm

Height: 152 mm

Length: 226 mm

Min. temperature: 150 °C

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2108748 TOOLCRAFT TPS-200 Soldering station 200 W 150 - 480 °C

Information

Information 2108748 TOOLCRAFT TPS-200 Soldering station 200 W 150 - 480 °C

Warranty Terms

Warranty Terms 2108748 TOOLCRAFT TPS-200 Soldering station 200 W 150 - 480 °C

Download

Download 2108748 TOOLCRAFT TPS-200 Soldering station 200 W 150 - 480 °C

Description

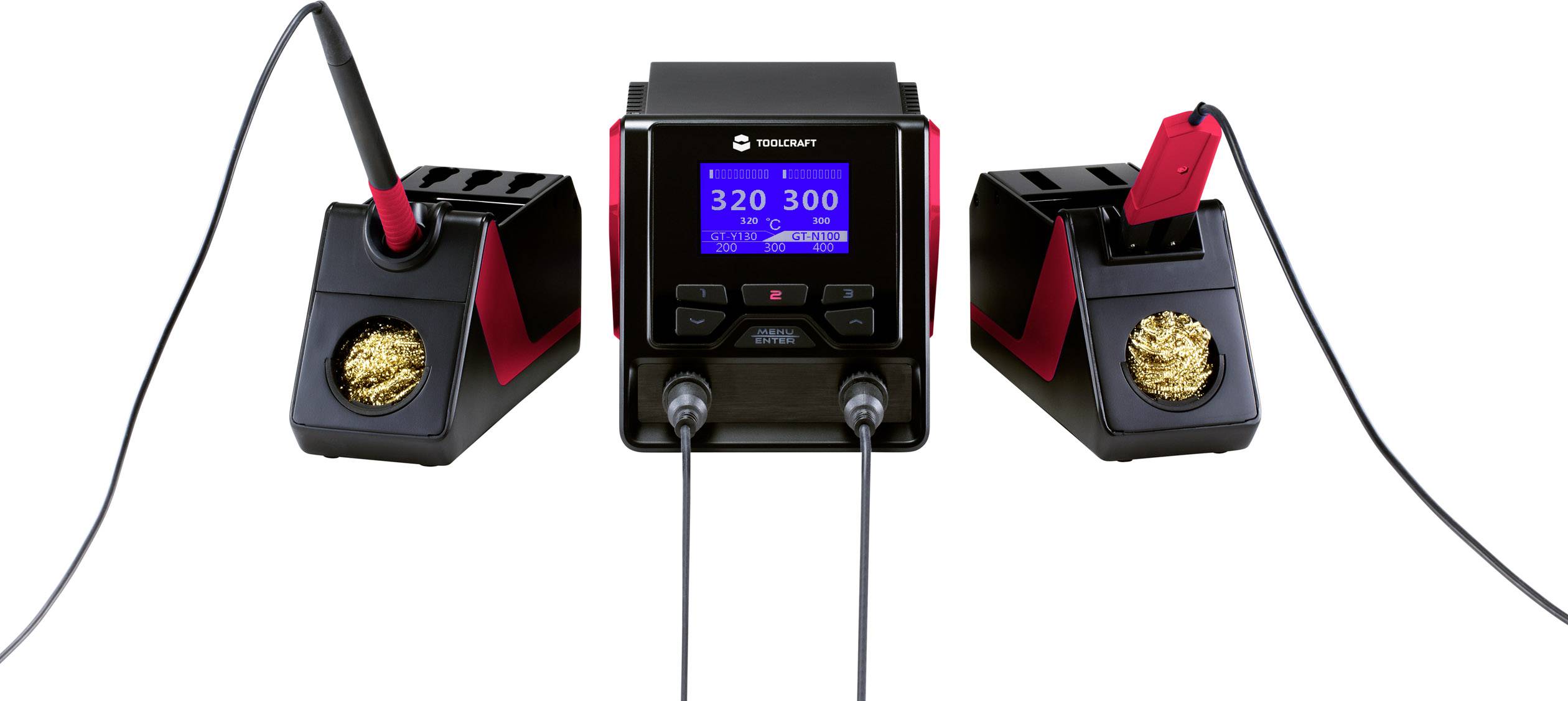

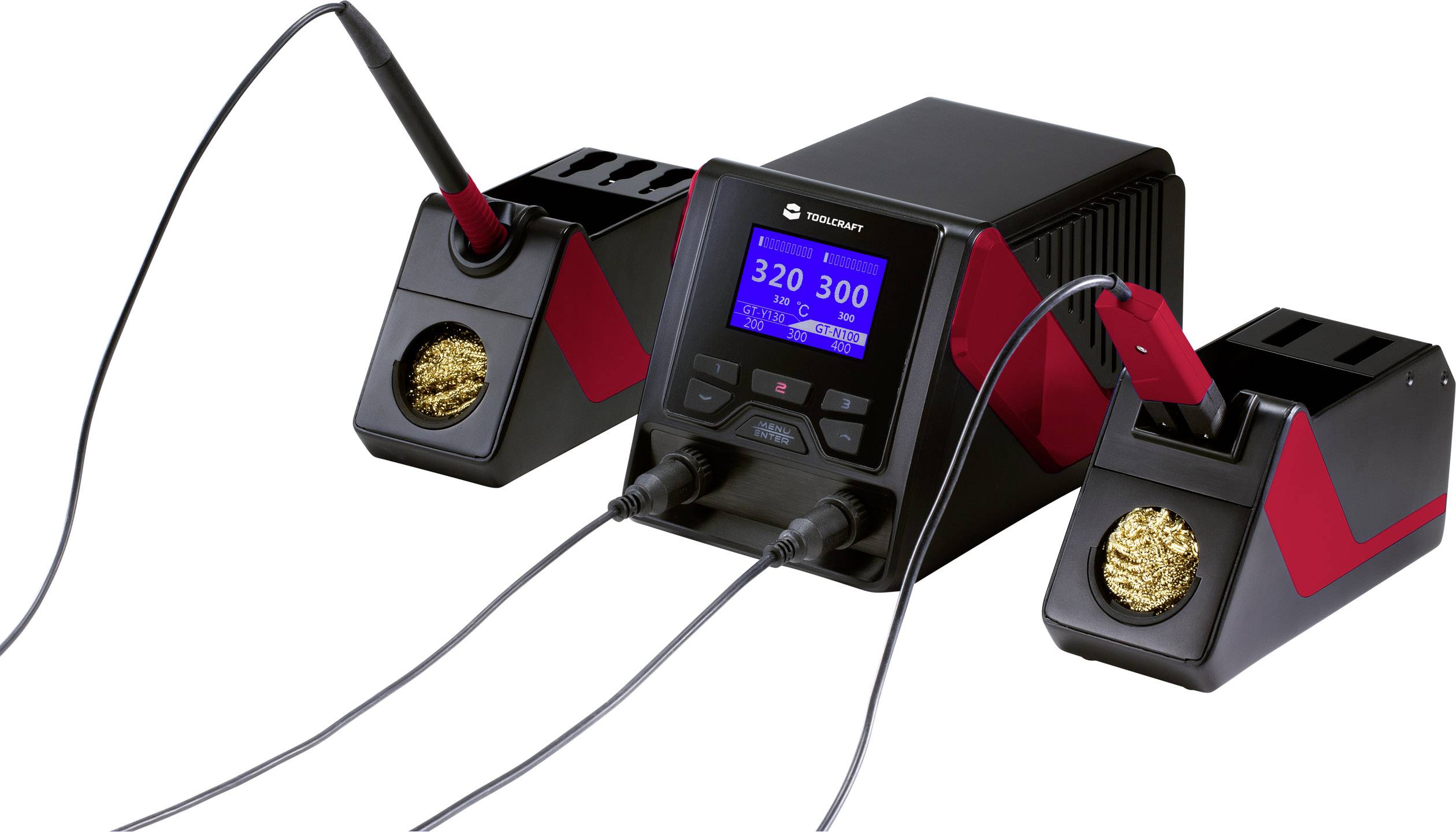

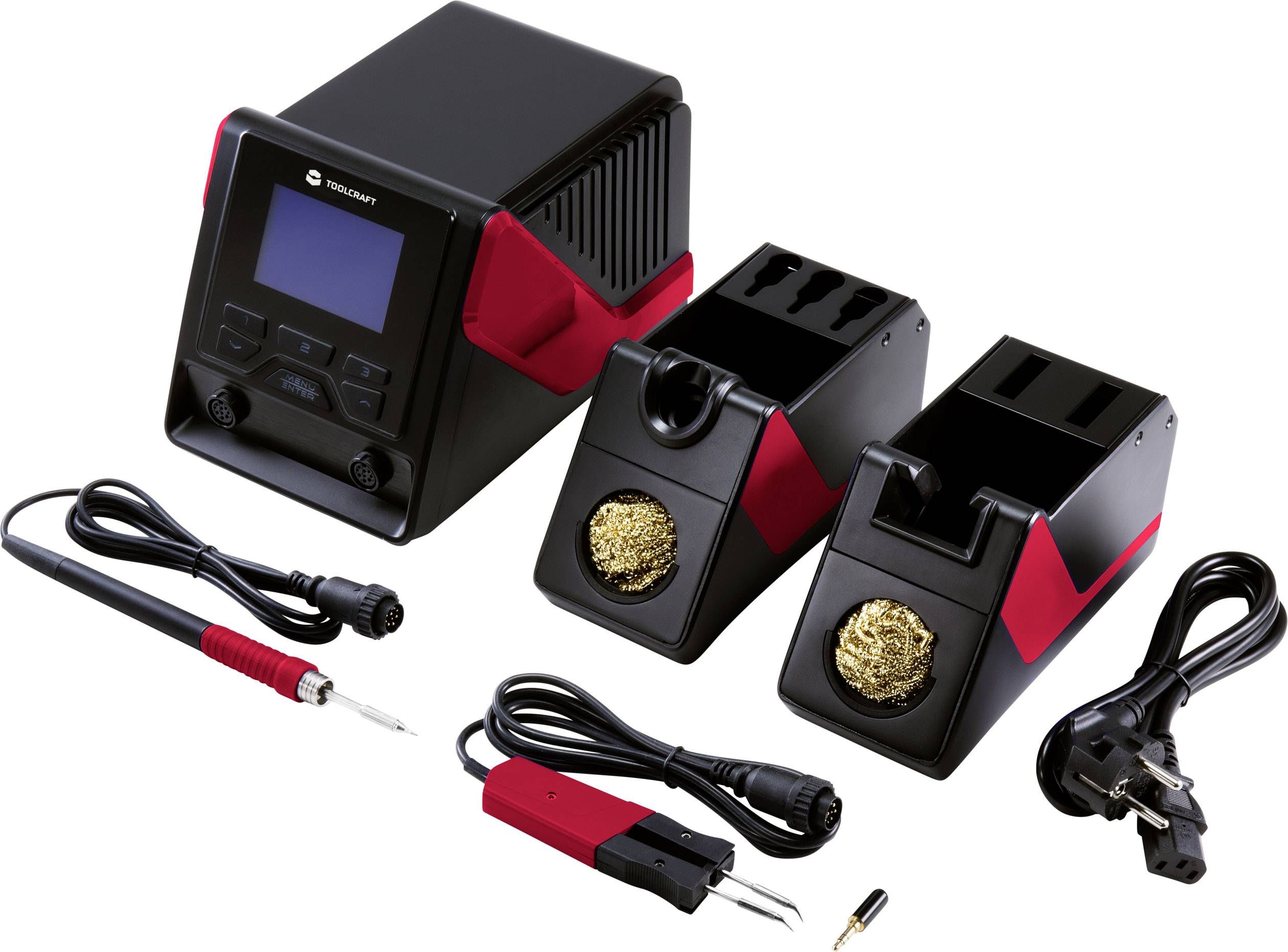

The TOOLCRAFT Double Channel Rework Station TPS-200 features two separately adjustable channels. Both channels can be used at the same time and switched on/off separately. The station is compatible with various types of soldering tools and comes with a soldering iron and soldering tweezers. It can automatically recognize connected soldering tools and set the corresponding parameters.
It comes with software that can display and set all relevant parameters and information.
Three preset buttons give you quick access to the temperature settings and timer.
The programmable timer allows you to switch the soldering station to standby mode and disable the heating function.
