Toolkit RC ADP450 Charge PSU
EAN:
Part number:
Item no:
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Only 4 Piece(s) available
Highlights & Details

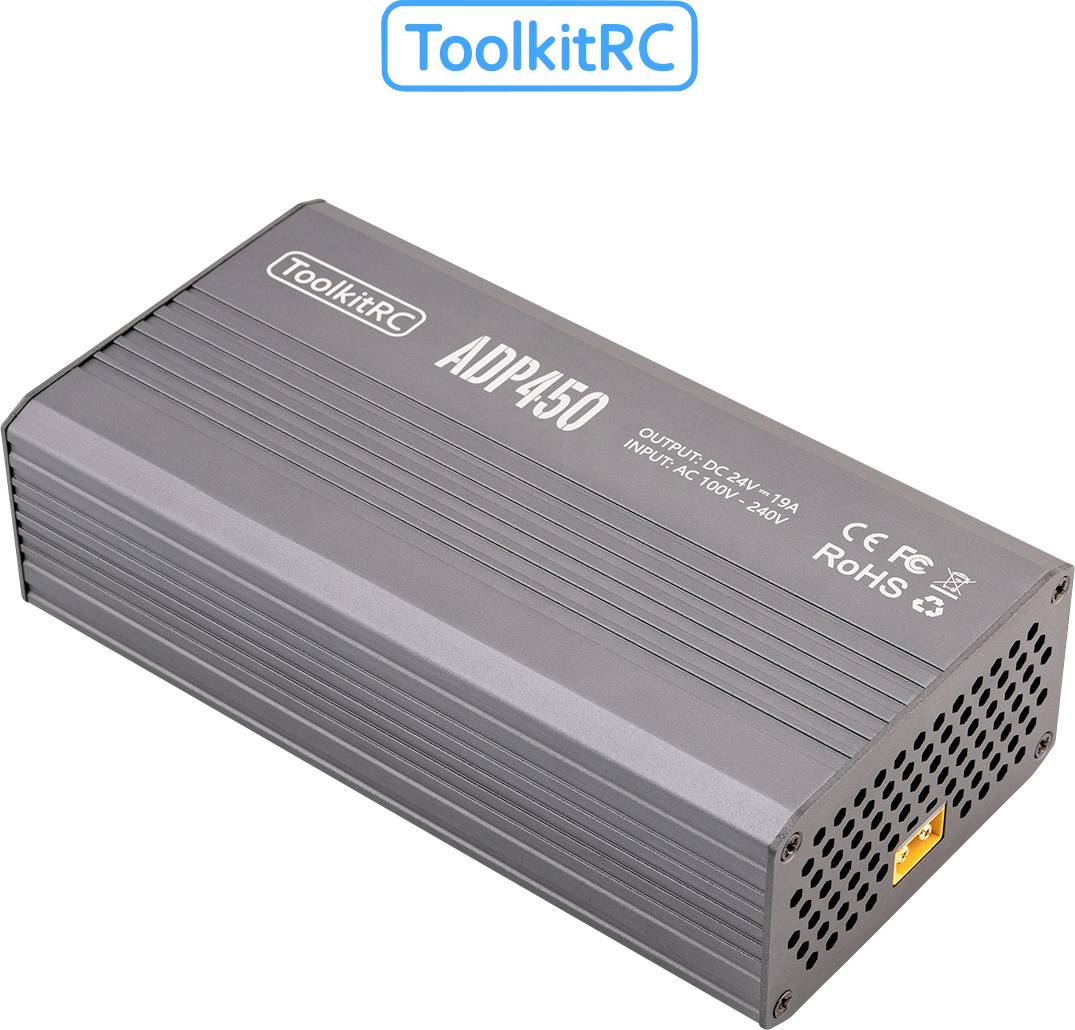

ToolkitRC ADP450 power supply
- High performance: Delivers impressive 450W in a compact and rugged housing.
- High efficiency: Thanks to active PFC technology, the power supply reaches an efficiency degree of up to 94%.
- Ideal for RC chargers: With an integrated XT60 output it is perfectly tuned to the needs of RC-pilots and matches the chargers like those of ToolkitRC.
- Equipped with several protective circuits that protect against short circuit, overheating, over-voltage, over-current and overload.
Technical specifications
- Input voltage AC 100-240 V 50/60 Hz
- Output voltage 24 V
- Power output: 450 W
- Output current: 19 A
- Connection: XT60-plug
- Efficiency: Up to 94% (active PFC)
- Operating temperature: -10 °C to + 40 °C.
- Dim
(L x W x H) 187.4 x 57 x 91.5 mm
- Max. charging capacity
450 W
- Connector system
XT60
- Height
91.5 mm
- Length
187.4 mm
- Width
57 mm
- Manufacturer part #
TK23400
- Weight
800 g
- Product type
Charge PSU
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3466231 Toolkit RC ADP450 Charge PSU
Information
Information 3466231 Toolkit RC ADP450 Charge PSU
Description
The ToolkitRC ADP450 power supply provides a solid output of 450 W at an output voltage of 24 V and a current of 19 A. It is equipped with the active power factor correction technology (PFC), which increases the efficiency up to 94%. The device is designed to supply power to chargers and other devices with an XT60 connection, especially ToolkitRC models such as M8D, M6D, M8P and M9. The power supply has protection functions against short circuit, over current, over-heating, overload and overvoltage.
This text is machine translated.
This text is machine translated.
Scope of delivery

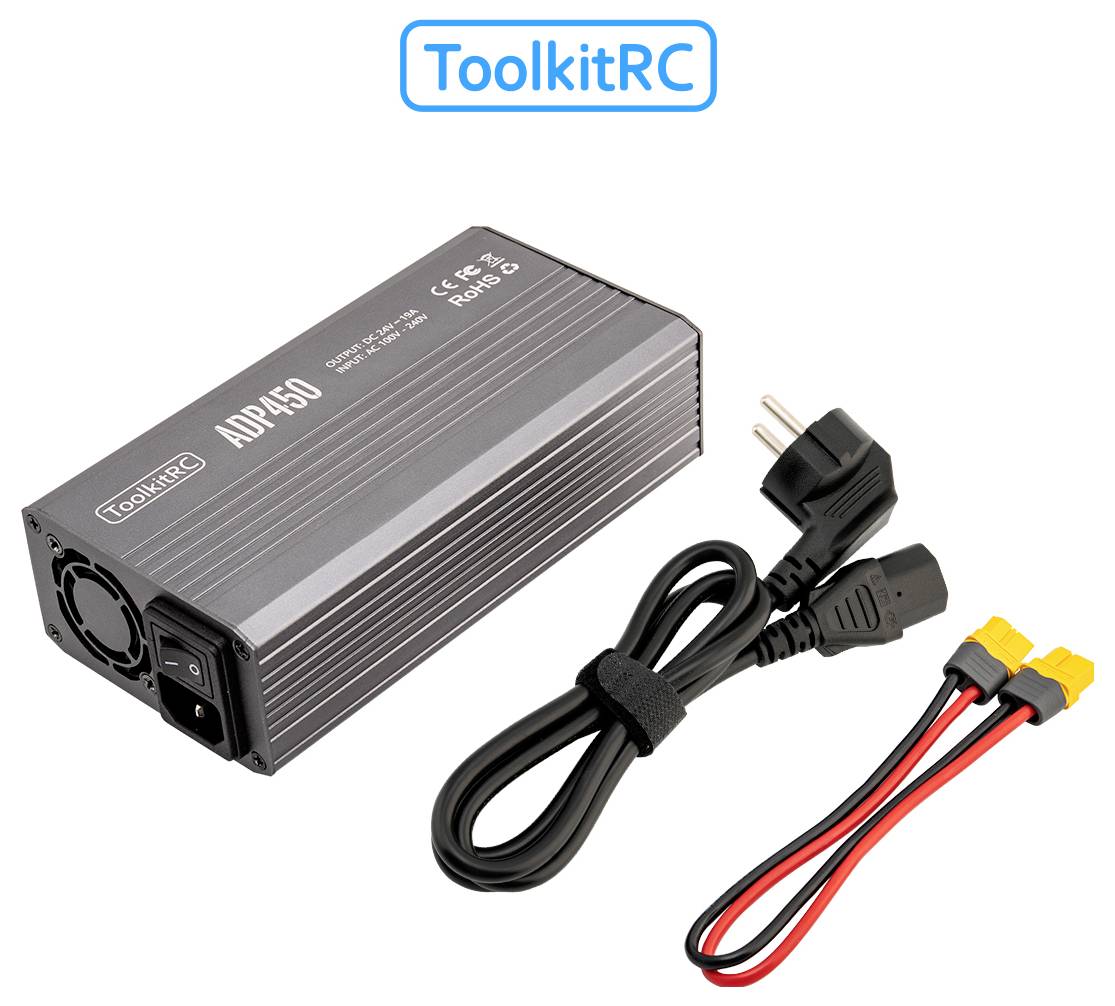

- 1 x ADP450 power supply
- 1 x AC input cables (power cable)
- 1 x XT60 socket-to-socket cable
