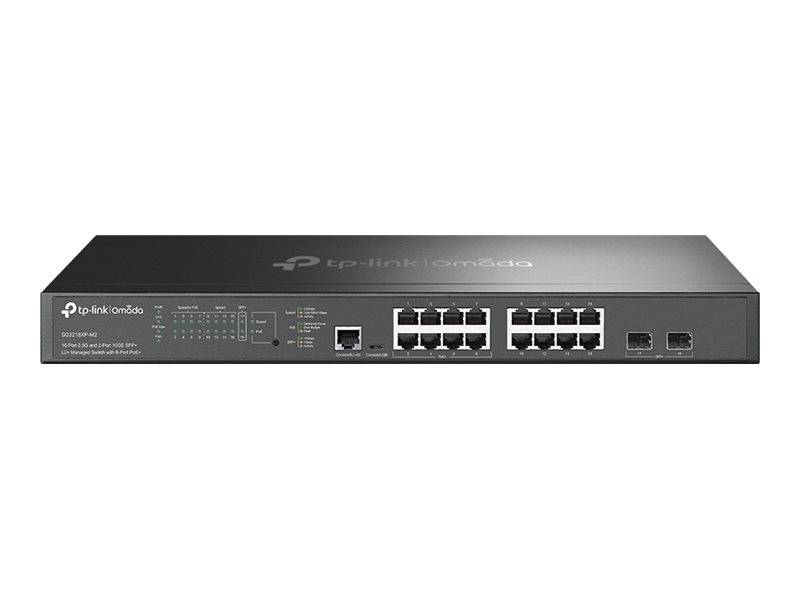

Name: TP-LINK Omada SG3218XP-M2 V1.6 - switch - L2+ - managed - 8 x 2.5GBase-T + 8 x 100/1000/2.5G (PoE+)
Brand: TP-LINK
SKU: 3739835

TP-LINK Omada SG3218XP-M2 V1.6 - switch - L2+ - managed - 8 x 2.5GBase-T + 8 x 100/1000/2.5G (PoE+)-0

TP-LINK Omada SG3218XP-M2 V1.6 - switch - L2+ - managed - 8 x 2.5GBase-T + 8 x 100/1000/2.5G (PoE+)-1

1/2

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

TP-LINK Omada SG3218XP-M2 V1.6 - switch - L2+ - managed - 8 x 2.5GBase-T + 8 x 100/1000/2.5G (PoE+)

16 2.5 GBase-T ports with PoE+ for high-speed networks and the power supply of devices
Two 10Gb Ethernet SFP+ uplink ports for excellent uplink connectivity
Comprehensive security features including ARP inspection and ACL support
Cloud management for easy remote network management
120 Gb/s switching capacity for efficient traffic handling

Technical specifications

+ 2 x 10 GB Ethernet SFP+ (uplink) - can be mounted on rack - PoE+ (240 W)

Product type: Network switch

Ethernet ports: 16

Weight: 3.204

Width: 440 mm

Height: 44 mm

Depth: 180 mm

Type: SG3218XP-M2

Factory colour: Black

Power supply (details): 100 - 240 V

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3739835 TP-LINK Omada SG3218XP-M2 V1.6 - switch - L2+ - managed - 8 x 2.5GBase-T + 8 x 100/1000/2.5G (PoE+)

Description

With 16 ports with 2.5 GBase-T and PoE+ functions as well as two 10 GB Ethernet SFP+ uplink ports, the TP-LINK Omada SG3218XP-M2 V1.6 provides high-speed connections and power to the connected devices and is therefore suitable for business environments with high demands. This switch is equipped with a comprehensive set of security features, including ARP Inspection, Access Control List (ACL) support, IP/Mac/Port Binding (IPMB), and more to ensure a secure network environment against unauthorized access and various attacks. The TP-LINK Omada SG3218XP-M2 V1.6 is managed via the cloud and supports a variety of remote management protocols such as SNMP, RMON and HTTPS. It provides simplified network configuration, monitoring, and management for smooth network operation. With 120 Gb/s switching capacity and 89.28 Mpps packet forwarding rate, this switch is designed to handle large amounts of traffic and provides efficient data flow and fewer network bottlenecks. Designed for durability, the rack-mounted form factor switch operates in a wide temperature and humidity range and is supported by two fans for cooling, WAS makes it a reliable choice for different operating environments.

This text is machine translated.

Features

TP-LINK Omada SG3218XP-M2 V1.6 - switch - 16 ports - managed - can be mounted on rack
Device type: Switch - 16 connections – L2+ – managed
Housing Type : Rack mountable
Sub-type : 2.5 Gigabit Ethernet
Ports : 8 x 2.5BASE-T + 8 x 100/1000/2.5G (PoE+) + 2 x 10 GB Ethernet SFP+ (uplink)
Power over Ethernet (PoE) : PoE+
PoE budget : 240 W.
Performance : 120 Gbps switching capacity
Transfer rate packet: 89.28 Mpps
Packet buffer size 12 Mbit
Capacity : Priority queues: 8
IPv6 Interfaces: 32
IPv4 interfaces: 32
Static routes: 48
Static ARP entries: 128
Total Link Aggregation Groups: 8
Multicast filter 256
Layer 2 Multicast Filter entries per profile: 16
VLAN Groups: 4000
MAC VLAN address entries 256
IP MAC port binding entries: 512
IPv4 Source Guard inputs: 100
IPv6 MAC port binding entries: 512
IPv6 Source Guard inputs: 100
MAC addresses per port: 64
Size of the MAC address table : 16,000 entries
Jumbo Framework Support : 9KB
Routing protocol : static IP routing, STP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Remote management protocol : IPv4, IPv6, RSTP, TCP/IP, UDP, DHCP, CLI, SSH, SSH-2, ICMP, TELNET, SNMP, HTTP, HTTPS, TFTP, MIB, RMON, RMON 2, SNMP 1, SNMP 2C, SNMP 3, RMON 1, RMON 3, RMON 9, OAM
Features : 2 fans, CoS, QoS, DSCP prioritization, queue planning support, SP, WRR, frequency limit, proxy ARP, ARP support, DHCP server, DHCP relay, VLAN support, link aggregation, BPDU filter, TC/Root Protection, loopback detection, flow control, HOL blocking prevention, port mirroring, IGMP snooping, Fast Stop, IGMP Filtering, MLD Snooping, MVR, Device Discovery, Firmware Upgradable, Scheduled Restart, GVRP, Voice VLAN, ACL Support, ToS, DHCP snooping, ARP Inspection, ND Detection, DoS Attack Protection, Port Security, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Guest VLAN, MAB, AAA, port isolation, path MTU discovery, cloud managed, ZTP, BOOTP support, LLDP-MED, cable diagnostics function, EEE, SNTP support, System log, IPMB
Product certifications : IEEE 802.3at, IEEE 802.3af, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1d, IEEE 802.1w, IEEE 802.11n, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1AB (LLDP), IEEE 802.3ah
Power supply : AC 100-240 V (50/60 Hz)
Dimensions (width x depth x height): 44 cm x 18 cm x 4.4 cm
System Requirements : Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux
