TP-LINK TL-SG108S – switch – 8 x 10/100/1000

EAN:
Part number:
Item no:
1/4
Sales and shipping:
Conrad ElectronicTerms & Conditions

Highlights & Details

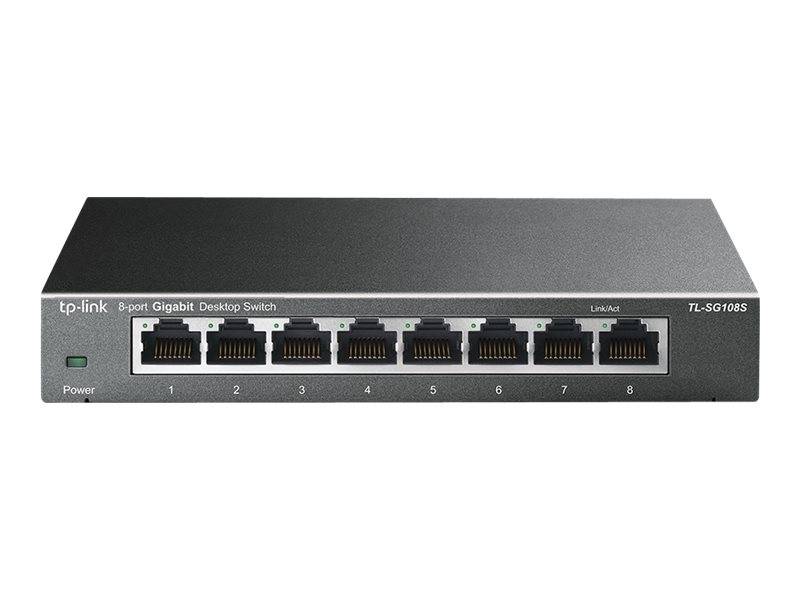

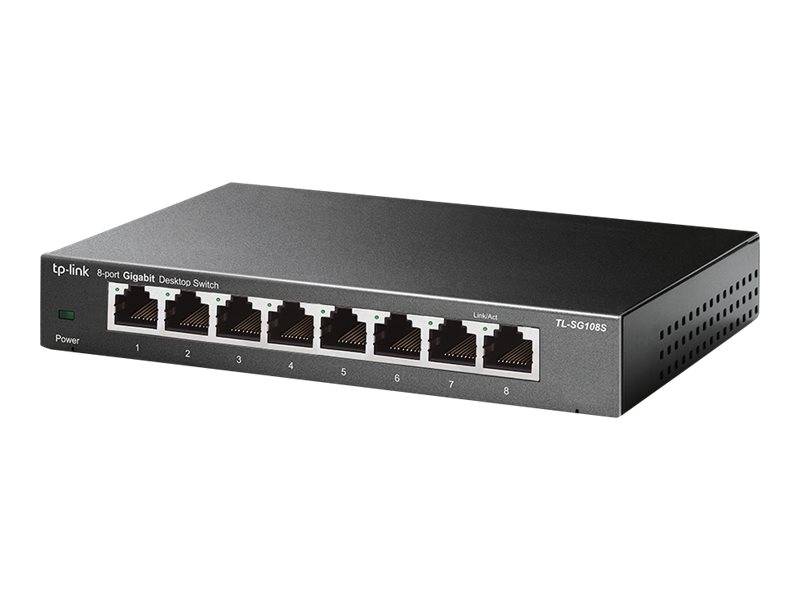

TP-LINK TL-SG108S – switch – 8 x 10/100/1000

  • 8 Gigabit RJ45 ports with auto tuning and Auto MDI/MDIX
  • Green IT, saves up to 82% energy
  • Flow-control according to IEEE802.3x for reliable data transmission
  • Metal housing for desktop or wall mounting
  • Supports QoS/DSCP according to IEEE802.1p as well as IGMP snooping
  • Plug & Play, no configuration required

Technical specifications

  • Desktop
Product type

Network switch

LAN transfer rate

1000 MBit/s

Transfer rate

10 / 100 / 1000 MBit/s

Working principle

Unmanaged switch

Ethernet ports

8

10/100/1000 Mbps ports

8 x

Auto-uplink at each port

Yes

Jumbo frames

Yes

MAC addresses

4000

Weight

0.56 kg

Width

158 mm

Height

25.4 mm

Depth

100.6 mm

Type

Geen extra informatie beschikbaar.

Interfaces

RJ45

Factory colour

Black

Output voltage

9 V

Input voltage

9 V

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3738829 TP-LINK TL-SG108S – switch – 8 x 10/100/1000

Description

Equipped with 8 10/100/1000Mbit/s ports, the TL-SG108 extends your network capacity considerably, allowing the immediate transfer of large files. Power users in the home, office, workgroup or creative production environment can now move large, bandwidth-intensive files faster. Transfer documents, programs or multimedia files without delay over the network. You now have the option of selecting the green option if you want to upgrade to a gigabit network! The TL-SG108 8-port gigabit switch has innovative, energy-efficient technology that can significantly expand your network capacity with much less power consumption. It automatically adjusts the power consumption to the link status and the cable length, in order to improve the environmental balance of your network. The automatic functions of this Gigabit switch make the installation problem-free thanks to plug-and-play. No configuration is required. Auto-MDI/MDIX eliminates the need for crossover cables. Auto-tuning on each port detects the connection speed of a network device (10, 100 or 1000 Mbit/s) and adjusts intelligently to ensure compatibility and optimum performance.

This text is machine translated.

Features

  • TP-LINK TL-SG108S – switch – 8 connections
  • Device type: Switch - 8 connections
  • Sub-type : Gigabit Ethernet
  • Ports : 8 x 10/100/1000
  • Power : Transmission power: 11.9 Mpps
  • Size of the MAC address table : 4000 entries
  • Jumbo Frame Support : 16KB
  • Features : Auto negotiation, Auto uplink (Auto MDI/MDI-X), IGMP snooping, Store-and-Forward, QoS, Green Ethernet, without fan
  • Product certifications : IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
  • Dimensions (width x depth x height): 15.8 cm x 10.1 cm x 2.5 cm

Scope of delivery

  • TP-LINK TL-SG108SExternal mains adapter, rubber feet
