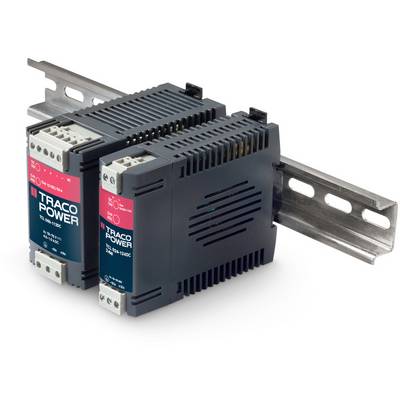

TracoPower TCL 060-112 DC Rail mounted PSU (DIN) 12 V DC 5 A 60 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Highlights & Details
TracoPower TCL 060-112 DC Rail mounted PSU (DIN) 12 V DC 5 A 60 W No. of outputs:1 x Content 1 pc(s)
- 15 V DC / 5 A
- 60 W power
- Input 1-phase
- Input voltage range 18 - 75 V/DC
- Connections (components): screw terminal
- For applications in the industrial, office and residential area
- Ultra-compact plastic housing
- Can be snapped onto DIN rail
- Incl. Adapter for wall mounting
- Adjustable output voltage:
- DC-OK signal
- Low ripple
- Overload and short circuit protection
- Parallel operation possible
- This text is machine translated.
Technical specifications
- Nominal input voltage
72 V/DC
24 V/DC
36 V/DC
48 V/DC
- Type
Switched Mode
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
18 V DC
- Output voltage
24 V DC
- Input voltage
85 - 264 Vac, 85 - 375 V DC
- Input voltage (max.)
75 V DC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
60 W
- Phases
1
- Output voltage (nominal)
12 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(W x H x D) 27 x 75 x 100 mm
- Weight
270 g
- Output voltage (max.)
15 V DC
- Output voltage (min.)
12 V DC
- Manufacturer part #
TCL 060-112 DC
- Content
1 pc(s)
- Width
27 mm
- Height
75 mm
- Type
TCL 060-112 DC
- Depth
100 mm
24 W
- Connections
Screw terminals
- Output current (details)
2 A
Documents & Downloads
Datasheet
Datasheet 515327 TracoPower TCL 060-112 DC Rail mounted PSU (DIN) 12 V DC 5 A 60 W No. of outputs:1 x Content 1 pc(s)
Datasheet 515327 TracoPower TCL 060-112 DC Rail mounted PSU (DIN) 12 V DC 5 A 60 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 515327 TracoPower TCL 060-112 DC Rail mounted PSU (DIN) 12 V DC 5 A 60 W No. of outputs:1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 515327 TracoPower TCL 060-112 DC Rail mounted PSU (DIN) 12 V DC 5 A 60 W No. of outputs:1 x Content 1 pc(s)
Description
TCL 060-112 DC industrial DIN rail power supply with 24V DC 2A 24W output (Screw terminals type) - from TracoPower's high price/performance ratio TCL series.
With tightly regulated output voltage and high immunity against electrical disturbances on the mains, all power supplies from the TCL series provide a reliable power source for sensitive loads in industrial process controls, machine tools and other equipment exposed to a difficult industrial environment.
The whole TCL series complies with all mayor safety standards for Europe (EN60950, EN50178), North America (UL/cUL60950, UL508C listed) or elsewhere in the world (with CB-Report IEC60950).
With tightly regulated output voltage and high immunity against electrical disturbances on the mains, all power supplies from the TCL series provide a reliable power source for sensitive loads in industrial process controls, machine tools and other equipment exposed to a difficult industrial environment.
The whole TCL series complies with all mayor safety standards for Europe (EN60950, EN50178), North America (UL/cUL60950, UL508C listed) or elsewhere in the world (with CB-Report IEC60950).
Features
- For Industrial, Office and Residential Application
- Ultracompact Plastic Housing
- Connection by Spring Clamp Terminals or plugable Screw Terminals
- Reliable snap-on Mounting on DIN-Rails
- Adapter for Wall Mounting
- Universal Input 85-264 VAC, 50/60 Hz
- Output Voltage adjustable
- Power Good Signal
- Low Ripple and Noise
- Overload and Short-Circuit Protection
- Parallel Operation possible
- Worldwide Safety Approvals
- Redundancy Module
- 3 Year Product Warranty
Hints
No DIN rail supplied.
