Buy TracoPower TDR 3-2412 DC/DC converter (print) 24 V DC 12 V DC 250 mA 3 W No. of outputs: 1 x Content 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

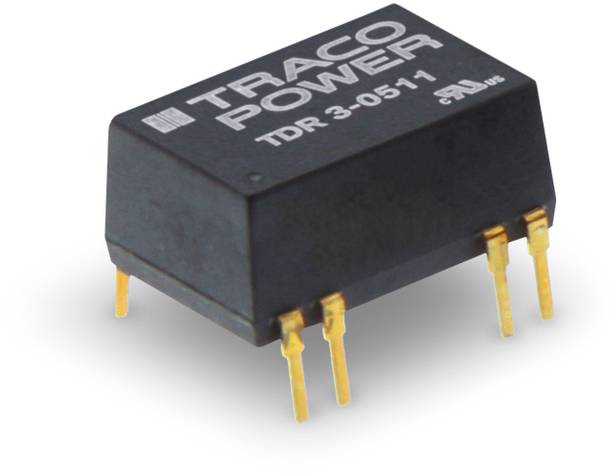

'TRACO POWER TDR 3-0511' black electronic component with six gold-coloured terminals, presumably a voltage converter.

'TRACO POWER TDR 3-0511' black electronic component with six gold-coloured terminals, presumably a voltage converter.

TracoPower

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 33.99 / piece)

€ 33.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: DC/DC converter (print)

Type: TDR 3-2412

Nominal voltage: 24 V DC

Min. input voltage: 18 V DC

Input voltage (max.): 36 V DC

No. of outputs: 1 x

Output voltages: 12 V DC

Max. output current: 250 mA

Output current (max.) - rounded: 250 mA

Efficiency (max.): 82 %

: 3 W

Insulation voltage: 1600 V DC

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 85 °C

Dim: (L x W x H) 13.55 x 12.5 x 18.9 mm

Height: 18.9 mm

Length: 13.55 mm

Width: 12.5 mm

Output voltage (max.): 12 V DC

Output voltage (min.): 12 V DC

Weight: 4.5 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3370276 TracoPower TDR 3-2412 DC/DC converter (print) 24 V DC 12 V DC 250 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Datasheet 3370276 TracoPower TDR 3-2412 DC/DC converter (print) 24 V DC 12 V DC 250 mA 3 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3370276 TracoPower TDR 3-2412 DC/DC converter (print) 24 V DC 12 V DC 250 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 3370276 TracoPower TDR 3-2412 DC/DC converter (print) 24 V DC 12 V DC 250 mA 3 W No. of outputs: 1 x Content 1 pc(s)

Description

Compact 3 W converter in DIL housing, input/output insulation 1600 V/DC, regulated outputs, 2:1 input range, short-circuit proof.

This text is machine translated.

Description

Compact 3 W converter in DIL housing, input/output insulation 1600 V/DC, regulated outputs, 2:1 input range, short-circuit proof.

This text is machine translated.
