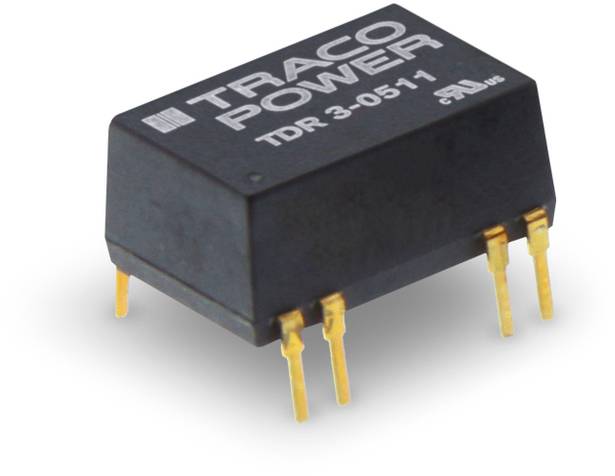

TracoPower TDR 3-4811 DC/DC converter (print) 48 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 30.24
30
4% = € 1.32
€ 28.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 30.24 / piece)
€
Technical specifications
- Type
TDR 3-4811
- Nominal voltage
48 V DC
- Min. input voltage
36 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
600 mA
- Output current (max.) - rounded
600 mA
- Efficiency (max.)
81 %
3 W
- Insulation voltage
1600 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 13.55 x 12.5 x 18.9 mm
- Height
18.9 mm
- Length
13.55 mm
- Width
12.5 mm
- Content
1 pc(s)
- Output voltage (max.)
5 V DC
- Output voltage (min.)
5 V DC
- Weight
4.5 g
- Product type
DC/DC converter (print)
Documents & Downloads
Datasheet
Datasheet 3370282 TracoPower TDR 3-4811 DC/DC converter (print) 48 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370282 TracoPower TDR 3-4811 DC/DC converter (print) 48 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370282 TracoPower TDR 3-4811 DC/DC converter (print) 48 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370282 TracoPower TDR 3-4811 DC/DC converter (print) 48 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Description
Compact 3 W converter in DIL housing, input/output insulation 1600 V/DC, regulated outputs, 2:1 input range, short-circuit proof.
