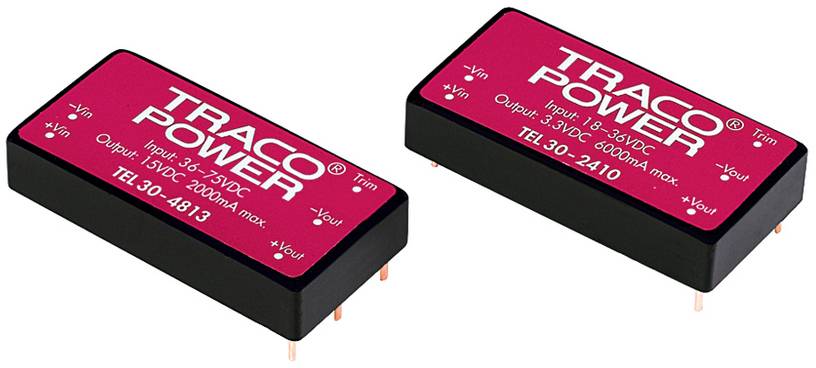

TracoPower TEL 30-2412 DC/DC converter (print) 24 V DC 12 V DC 2.5 A 30 W No. of outputs: 1 x Content 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 84.50 / piece)
€ 845.00
incl. VAT
14-day return policy included
Technical specifications
- Ripple: 100 mV
- Product type
DC/DC converter (print)
- Type
TEL 30-2412
- Nominal voltage
24 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
- Efficiency (max.)
88 %
30 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-25 °C
- Operating temperature (max.)
71 °C
- Content
10 pc(s)
30 W
- Type
TEL 30 Series
- Operating temperature
-25 - +71 °C
- Insulation voltage
1500 V DC
- Residual ripple
100 mV
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2789726 TracoPower TEL 30-2412 DC/DC converter (print) 24 V DC 12 V DC 2.5 A 30 W No. of outputs: 1 x Content 10 pc(s)
Datasheet 2789726 TracoPower TEL 30-2412 DC/DC converter (print) 24 V DC 12 V DC 2.5 A 30 W No. of outputs: 1 x Content 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2789726 TracoPower TEL 30-2412 DC/DC converter (print) 24 V DC 12 V DC 2.5 A 30 W No. of outputs: 1 x Content 10 pc(s)
Warranty Terms
Warranty Terms 2789726 TracoPower TEL 30-2412 DC/DC converter (print) 24 V DC 12 V DC 2.5 A 30 W No. of outputs: 1 x Content 10 pc(s)
Description
Further 02:01 input voltage range, higher degree of efficiency, short-circuit proof, adjustable output voltage, low voltage cut-off, shielded metallic casing.
Hints
Approvals: UL, EN, ICE.
